Neural DSP Nano Cortex - Connection Diagram

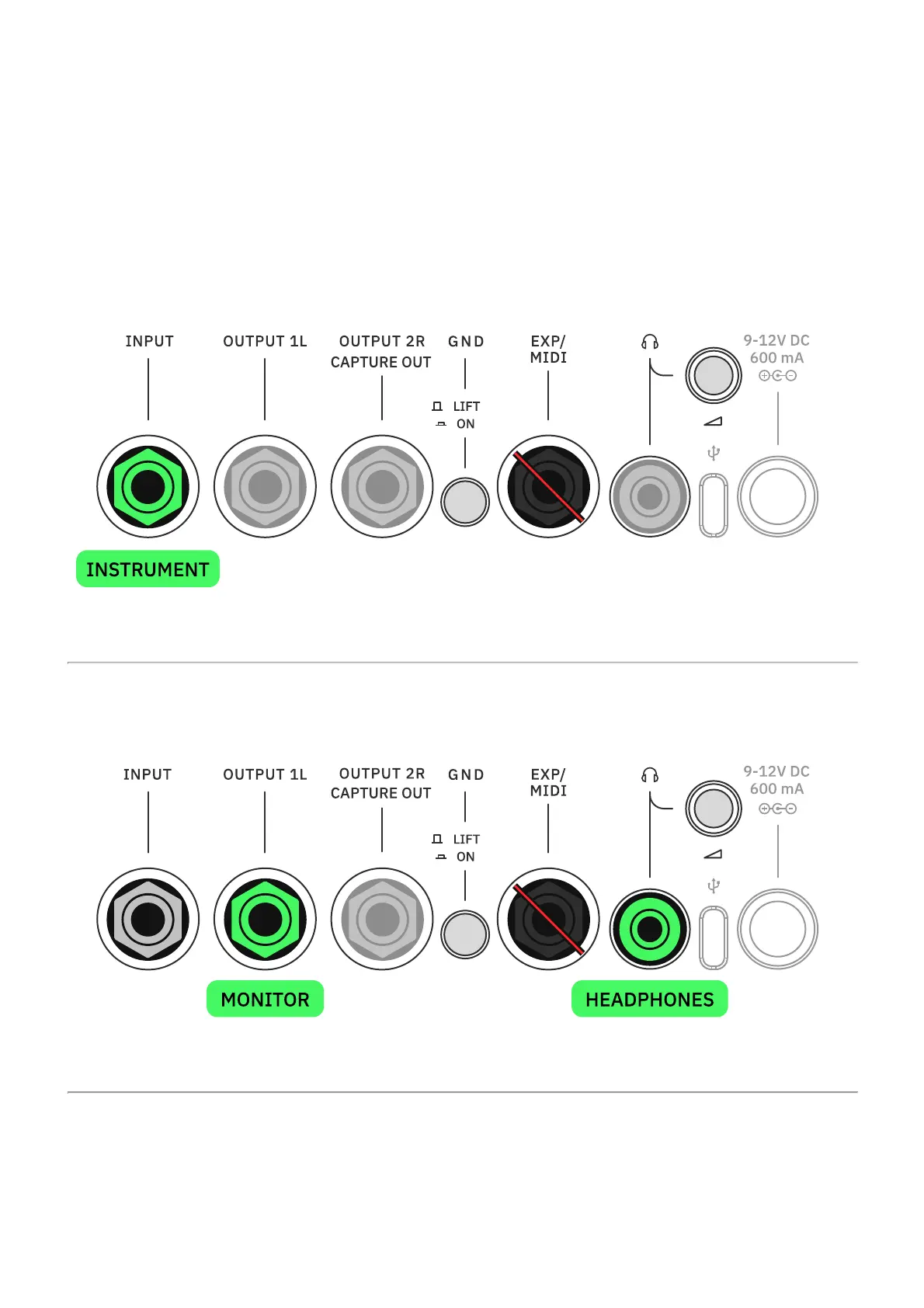

Connection Diagram
01 REFERENCE INSTRUMENT
Connect your instrument to INPUT 1.
02 MONITORING DEVICES
Connect your headphones to HP OUTPUT or your Monitor Speaker to OUTPUT 1L.
03 TARGET DEVICE
