Neural DSP Nano Cortex - Page 40

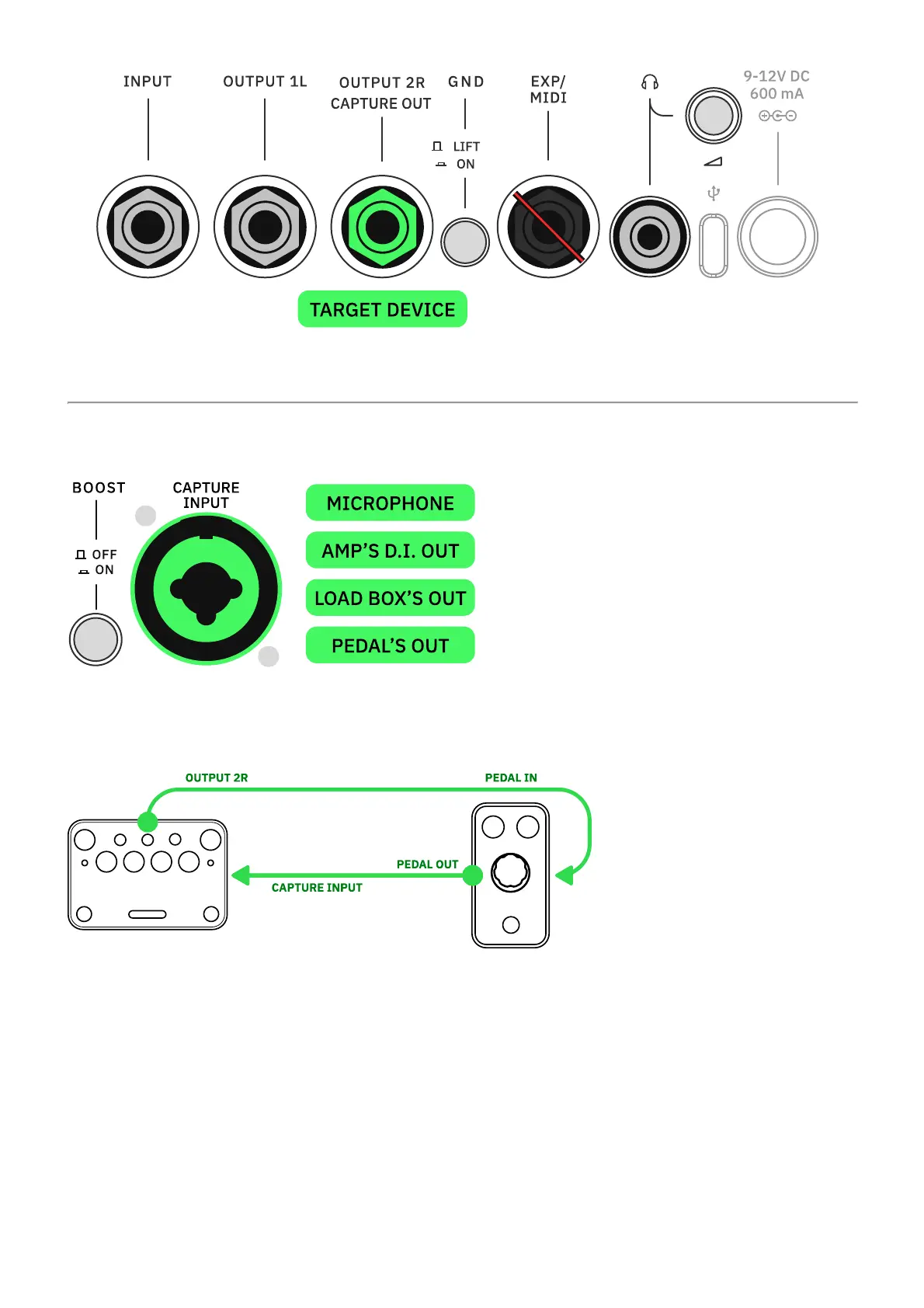

Connect the Nano Cortex's CAPTURE OUT (OUTPUT 2R) to the target device's input.
04 RETURN TO NANO CORTEX
OVERDRIVE PEDAL
If you are capturing an overdrive pedal, connect its output directly to the Nano Cortex's
CAPTURE INPUT.
AMP+CAB / COMBO AMP
