Instruction Manual Model 3100 Analyzer

Manual P/N: C5-06-4900-16-0

Manual file name: MN-A-0005, Rev. C

Page 33

4.1.2.13 RS-232 serial output configuration menu (U50)

This menu provides access to set the RS-232 serial communications options (see Figure 31). It is

accessed from the Setup Main Menu by typing “5” or “S” on the RS-232 terminal. To go back, use the

<Esc> or “Q” key on the RS-232 terminal.

4.1.2.13.1 Baud rate

This menu sets the RS-232 baud rate. Valid settings: 1 (300bps), 2 (1200bps), 3 (2400bps), 4 (4800bps),

5 (9600bps), 6 (19200bps) or 7 (38400bps). This menu is accessed from the RS-232 Serial Setup menu

by typing “1” or “B” on the RS-232 terminal.

4.1.2.13.2 Automatic serial output format

This menu sets the format of the automatic timed RS-232 serial output (section 4.1.2.4). The timed serial

output format may be set to: 0 (Output on Request), 1 (Human Readable), 2 (Machine Code), 3 (Machine

Code with Checksum), 4 (Tab delimited) 5 (Model OA1 style; not used). This menu is accessed from the

RS-232 Serial Setup menu by typing “2” or “F” on the RS-232 terminal.

4.1.2.13.3 Serial output spacing

This menu sets the rate at which the RS-232 sends complete ASCII data packets to the Service Port.

The send rate can be set anywhere from 0 to 86,400 seconds. This menu is accessed from the RS-232

Serial Setup menu by typing “3” or “S” on the RS-232 terminal.

4.1.2.13.4 OA1 style output – NOT USED

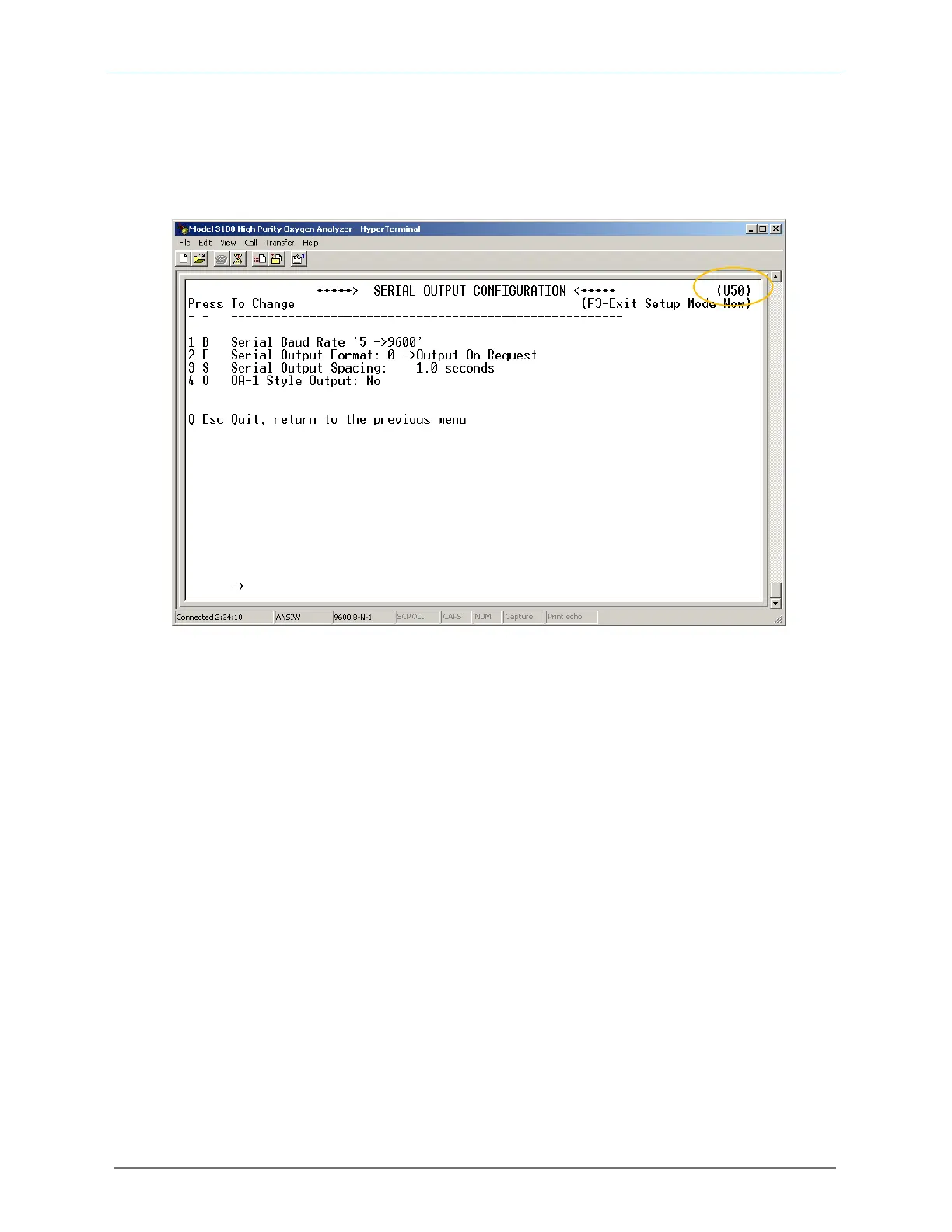

Fig. 31, RS-232 serial output configuration menu
