4 Setup, maintenance, and
troubleshooting
4.1 System setup
The Model 3100 is shipped with the system configuration installed and tested, ready for installation and
operation. The user has the option to change the system configuration to suit the application of the
analyzer. Some setup parameters can be changed by the user via the control panel keypad. All
configuration parameters can be changed by the user via the Service Port.
Important: Before changing any of the Model 3100 settings, refer to Appendix C – Factory Setup for
reference. If the user has any questions before proceeding with changing analyzer settings, please
contact the Neutronics Service Department for assistance.
System setup via control panel keypad
4.1.1
The control panel User Setup menu may be accessed from the Model 3100 control panel by pressing and
holding the “MODE” key for at least 6-seconds -- until the 7-segment alphanumeric display shows “---.“
This indicates that the analyzer has accessed setup mode. Release the “MODE” key to activate setup
mode. Once in setup mode, the user can access adjustable parameters sequentially by continuing to
press and release the “MODE” key to scroll through the setup menu.
When you reach the mode that you wish to change, use the “UP” and “DOWN” keys to adjust the
displayed setting. The modes are numerically identified by the number on the left side of the display.
The current mode setting is identified by the number on the right side of the display (see Figure 14). The
new settings are automatically saved when the user advances to the next mode by pressing and
releasing the “MODE” key. The user may exit the Setup menu at any time by pressing simultaneously the
“UP” and “DOWN” keys (see Appendix D, Control panel hot-key functions).

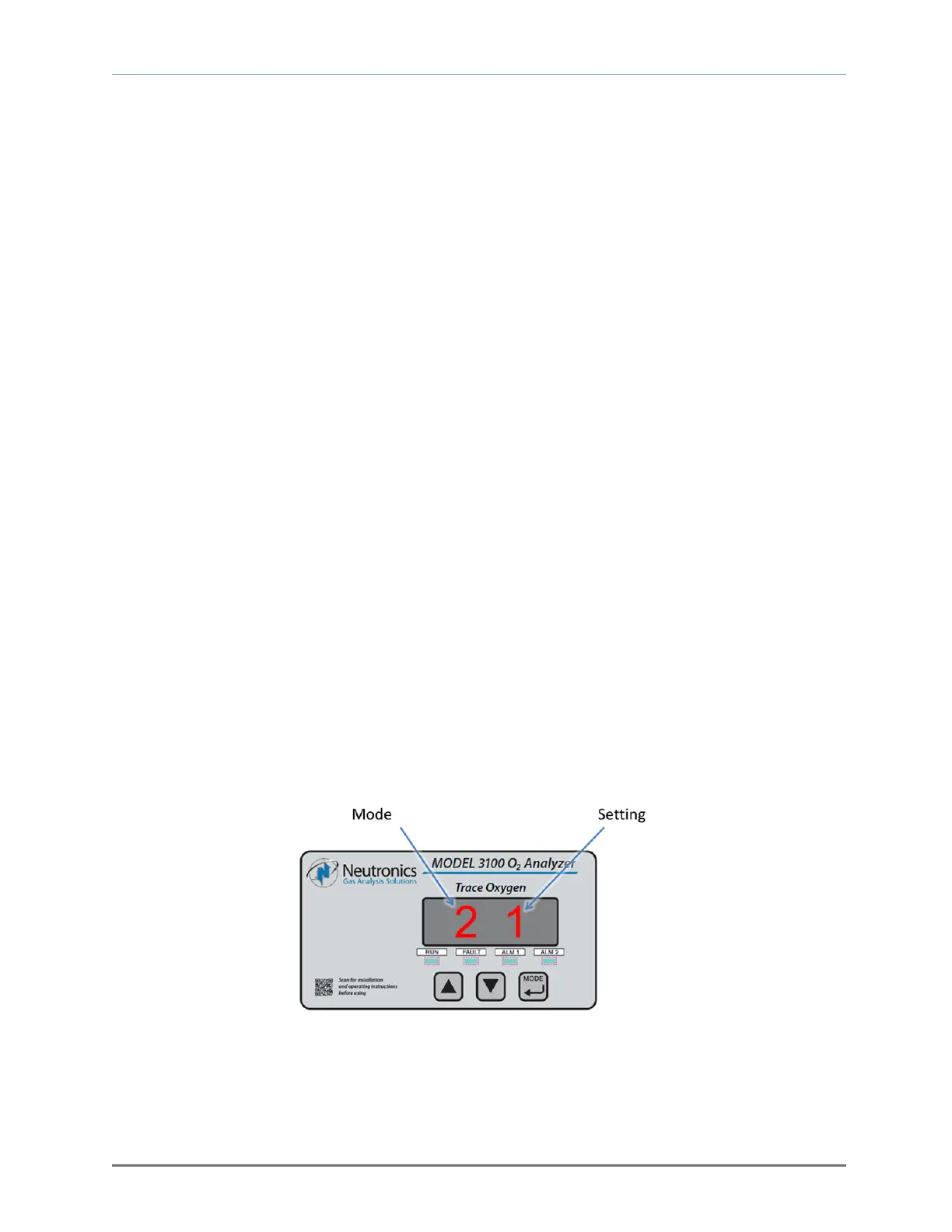

Fig. 14, System setup using the control panel keypad
