Page 3

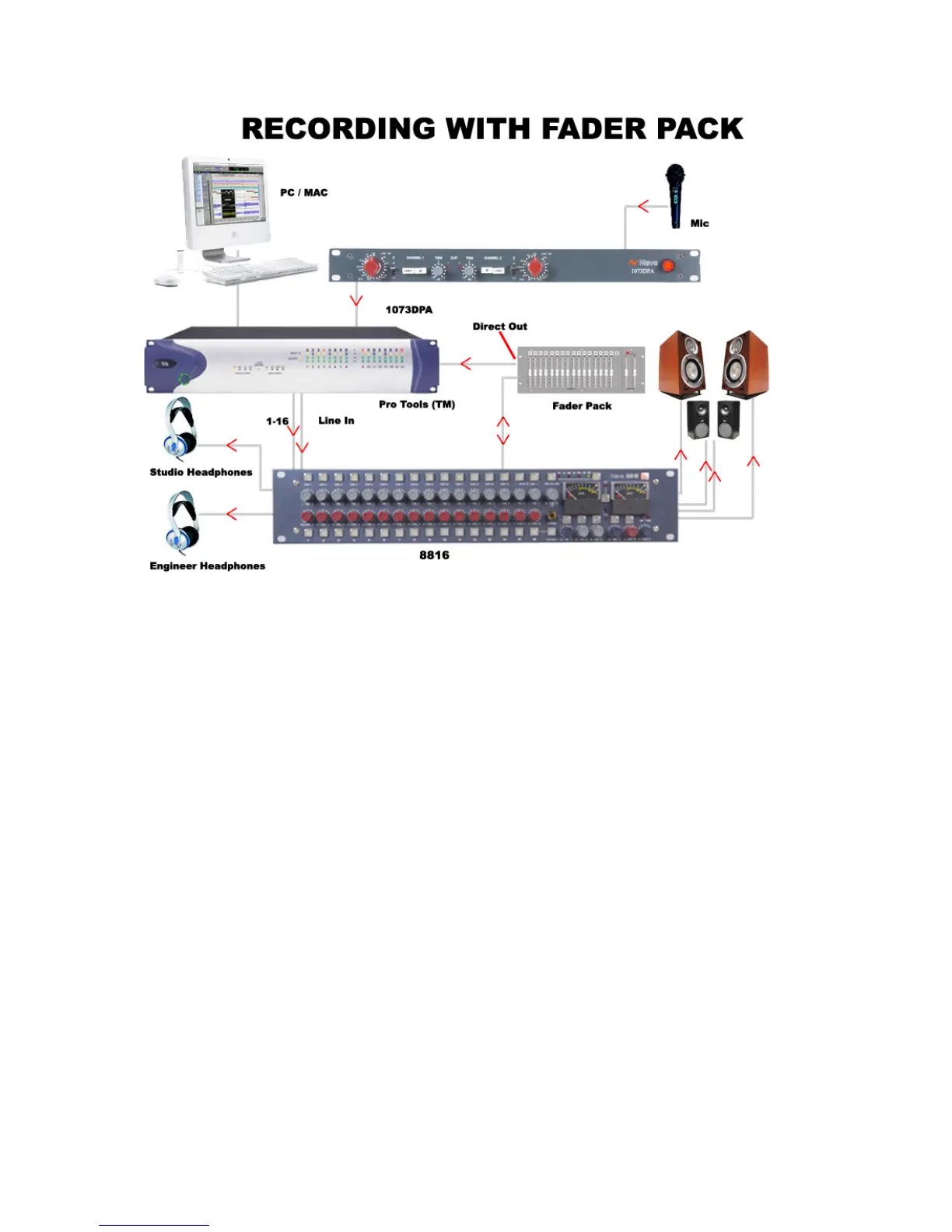

Recording with optional Fader Pack:
Connect the instruments to be recorded to
channel inputs on the 8816 and connect the direct outputs from these channels to the
inputs of the DAW (the direct outs are located on the fader pack). These channels
can be muted so that they do not go to the main bus if monitoring via the 8816 or a
monitor mix can be set up on the DAW and monitored via the 2 Track Return on the
8816. Signals can now be recorded with fader control over their level while the mix or
play back is monitored through the 8816.
In all of the above recording situations the engineer can utilise the 8816 to control
monitoring via two pairs of speakers and/or the headphones as required. The 8816
can also be used to provide a Cue to performer headphones.
