Newton S - Newton C1

NEWTON S 6
SYSTEM OPERATION MANUAL
2.2 NEWTON C1
7
6
30 3129 27 2
1
3
4
5
9 28
12 13 14 15 16
22 23 24212019 17 18
26
8
11
10
25

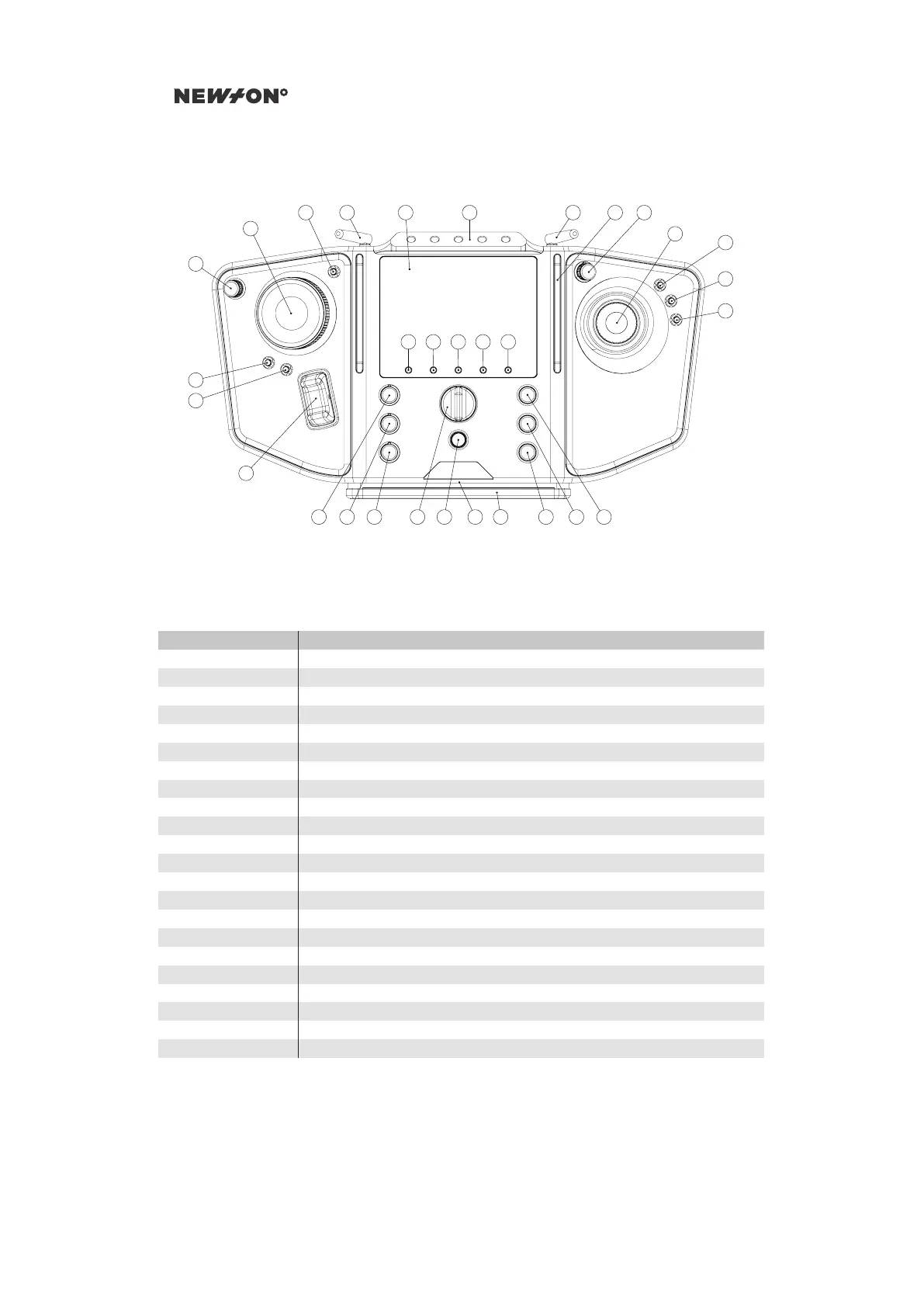

Figure 2.5: Newton C1 top view
Table 2.3: Top View Descriptions
Item Description
1 Joystick
2 Mappable wheel (default unmapped)
3-5 Invert axis
6 Focus wheel
7 Iris wheel
8 Zoom rocker
9 Lens preset 3
10 Lens preset 1
11 Lens preset 2
12-16 Menu buttons
17 Mode switch
18 Record switch
19-21 Speed for tilt, pan, roll
22 Pan trim compensation
23 Ease in/out
24 Mappable wheel (default unmapped)
25 SD card slot
26 Extendable support
27 Neck-strap rails
28 Display
29 NATO accessory rail
30,31 Antennas
