NEWTON S 34
SYSTEM OPERATION MANUAL
Power out
Newton C1 connector: LEMO EGG.1B.304
Mating connectors: LEMO FGG.1B.304 / FHG.1B.304
Output voltage: Unregulated input / battery voltage
Max current: 2.5A (combined)
1
2 3
4

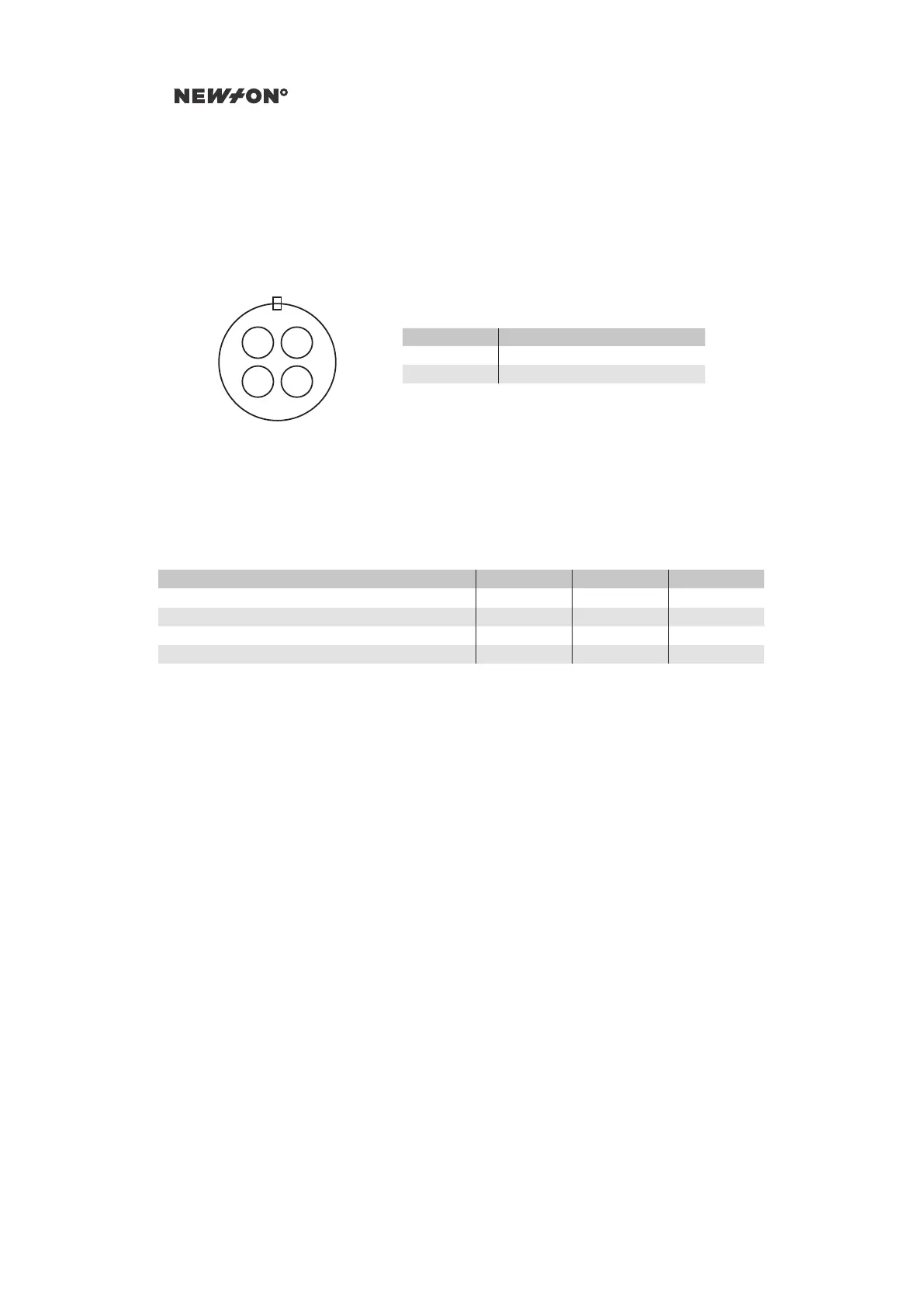

Figure A.6: Power out
Table A.12: Newton C1 - Power out, pins
Pin number Description
1,2 Negative (-)
3,4 Positive (+)
A.2.4 SHIPPING/HARD-CASE
Table A.13: Newton C1 - Shipping/hard-case
Parameter
Min
Typ Max
Length 45 cm
Width 30 cm
Height 30 cm
Weight
1
7.6 kg
1
Including external power supply
