NEWTON S 32
SYSTEM OPERATION MANUAL

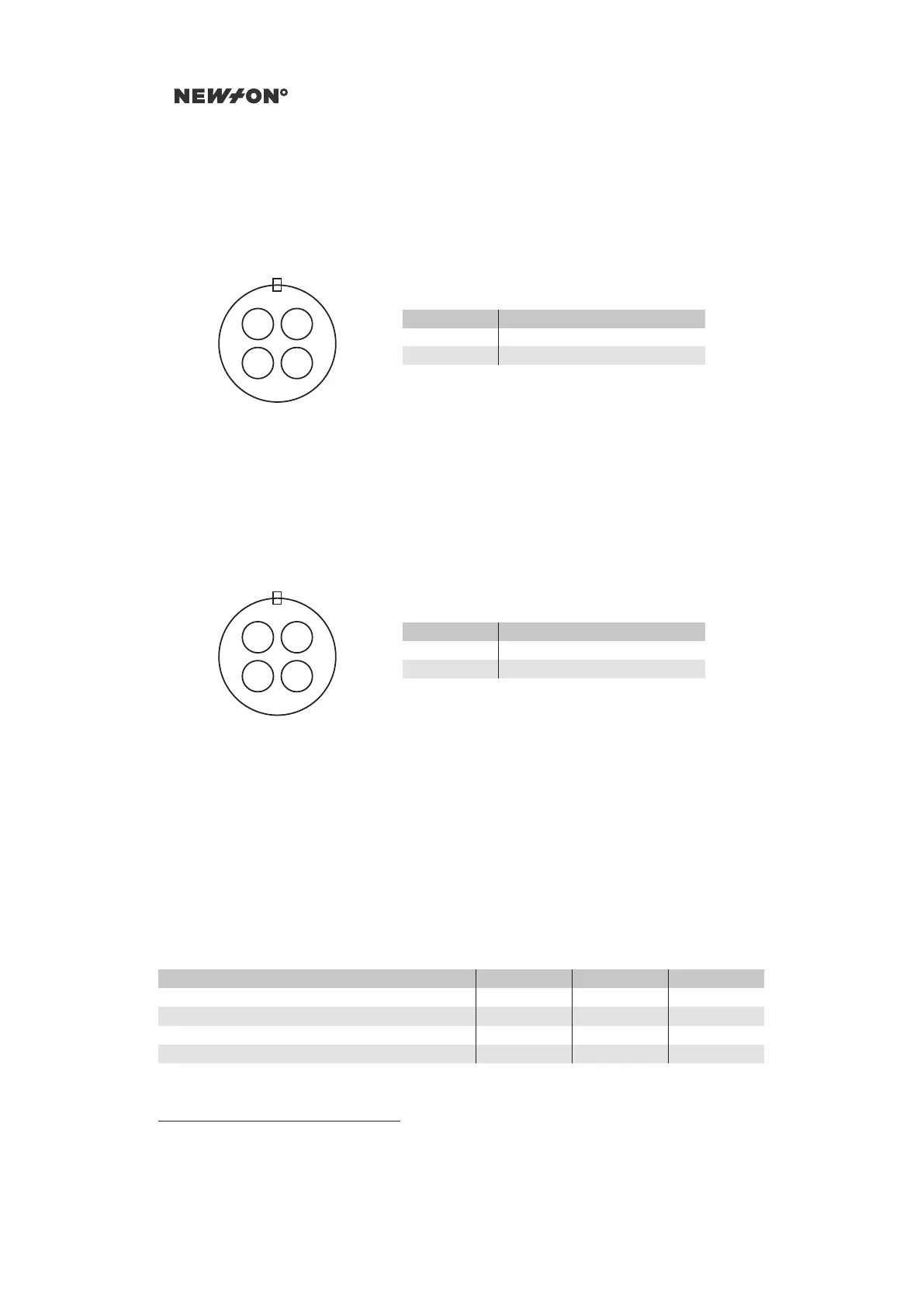

Pan-box Power Out
Mating connector: LEMO EGG.1B.304
Output voltage: 15V
Max current: 2A
1
2 3
4
Figure A.3: Power out
Table A.6: Power out, pins
Pin number Description
1,2 Negative (-)
3,4 Positive (+)
Cradle Power Out
Mating connector: LEMO EGG.1B.304
Output voltage: Regulated 15V
Max current: up to 10A
1
2 3
4
Figure A.4: Power out
Table A.7: Power out, pins
Pin number Description
1,2 Negative (-)
3,4 Positive (+)
A.1.4 NEWTON S2 FIBER CONNECTORS
The Newton S2 Fiber variant has a few differences in terms of connectors. Instead of a 3G-SDI
connector it has a single-mode fiber (ST/UPC Single-mode 9/125 μm), and the Ethernet passthrough
is limited to 5 pins (1,2,3,5,6)
1
.
A.1.5 SHIPPING/HARD-CASE
Table A.8: Newton S2 - Shipping/hard-case
Parameter
Min
Typ Max
Length 62 cm
Width 55 cm
Height 29 cm
Weight
1
20 kg
1
Including two batteries and charger
1
100Mbit Ethernet utilize 1,2,3,6
