NEWTON S 33
SYSTEM OPERATION MANUAL

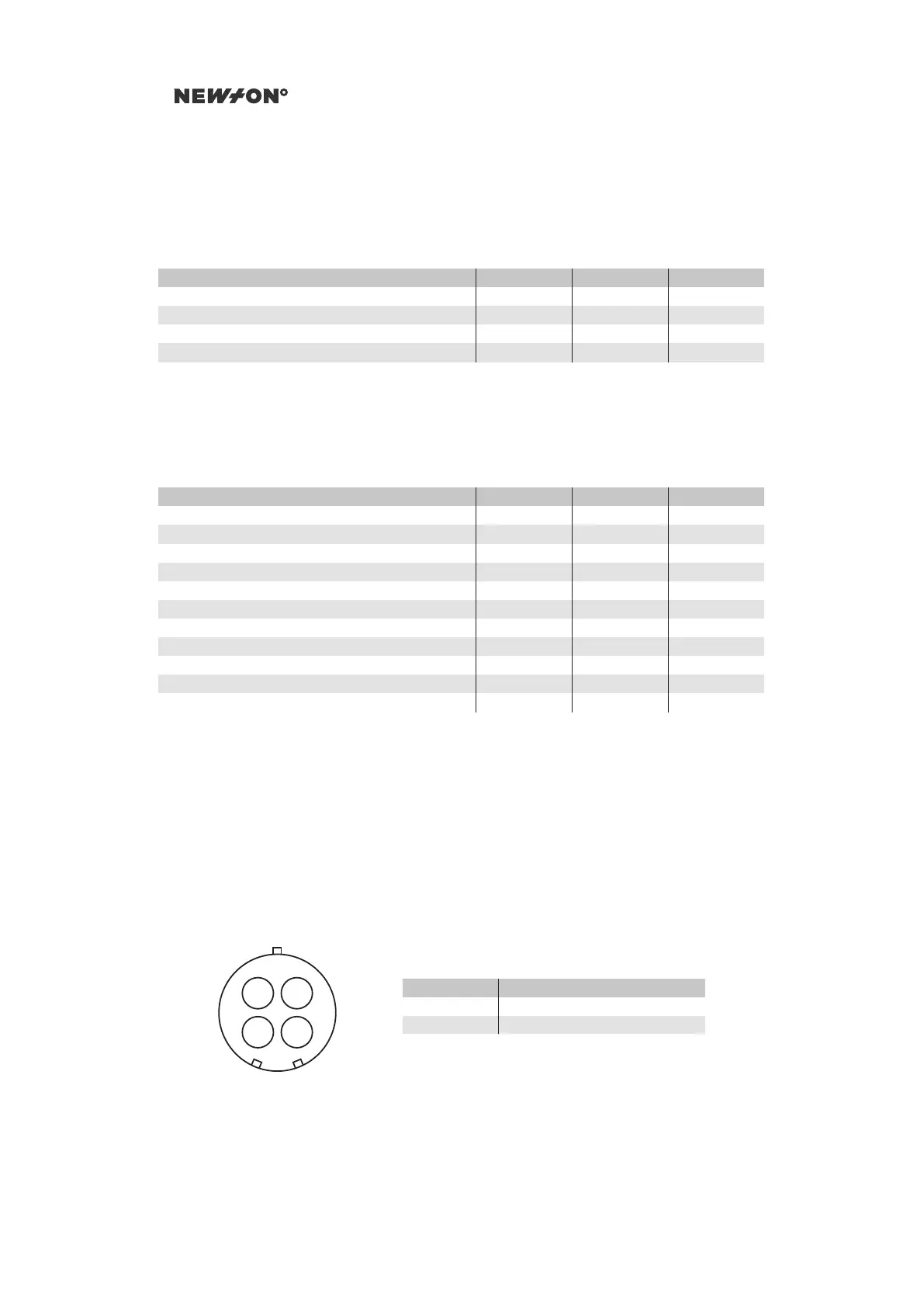

A.2 NEWTON C1
A.2.1 MECHANICAL
Table A.9: Newton C1 - Mechanical
Parameter
Min
Typ Max
Width 40 cm
Depth 21 cm
Height 6 cm
1
Weight 3.2 kg
1
14 cm with joystick
A.2.2 POWER SUPPLY
Table A.10: Newton C1 - Power Supply
Parameter
Min
Typ Max
Power input
Input voltage
12 V
18 V 25 V
Input current 6 A
Power out
Output voltage
1
12 V
18 V 25 V
Output current 2.5 A
Battery
Voltage
9.6 V
14.4 V 16.8 V
Capacity 98 Wh
Charge current 3 A
Charge time 3 h
1
Unregulated input/battery voltage
A.2.3 CONNECTORS
The IA-CAN connector is proprietary to Newton Nordic equipment.
Power in
Newton C1 connector: LEMO EGJ.1B.304
Mating connectors: LEMO FGJ.1B.304 / FHJ.1B.304
Acceptable voltage: 12V – 26V
1
23
4
Figure A.5: Power in
Table A.11: Newton C1 - Power in, pins
Pin number Description
1,2 Positive (+)
3,4 Negative (-)
