NEXPEED NBG440 User’s Manual
NexComm Systems, Inc. 10 PAGE

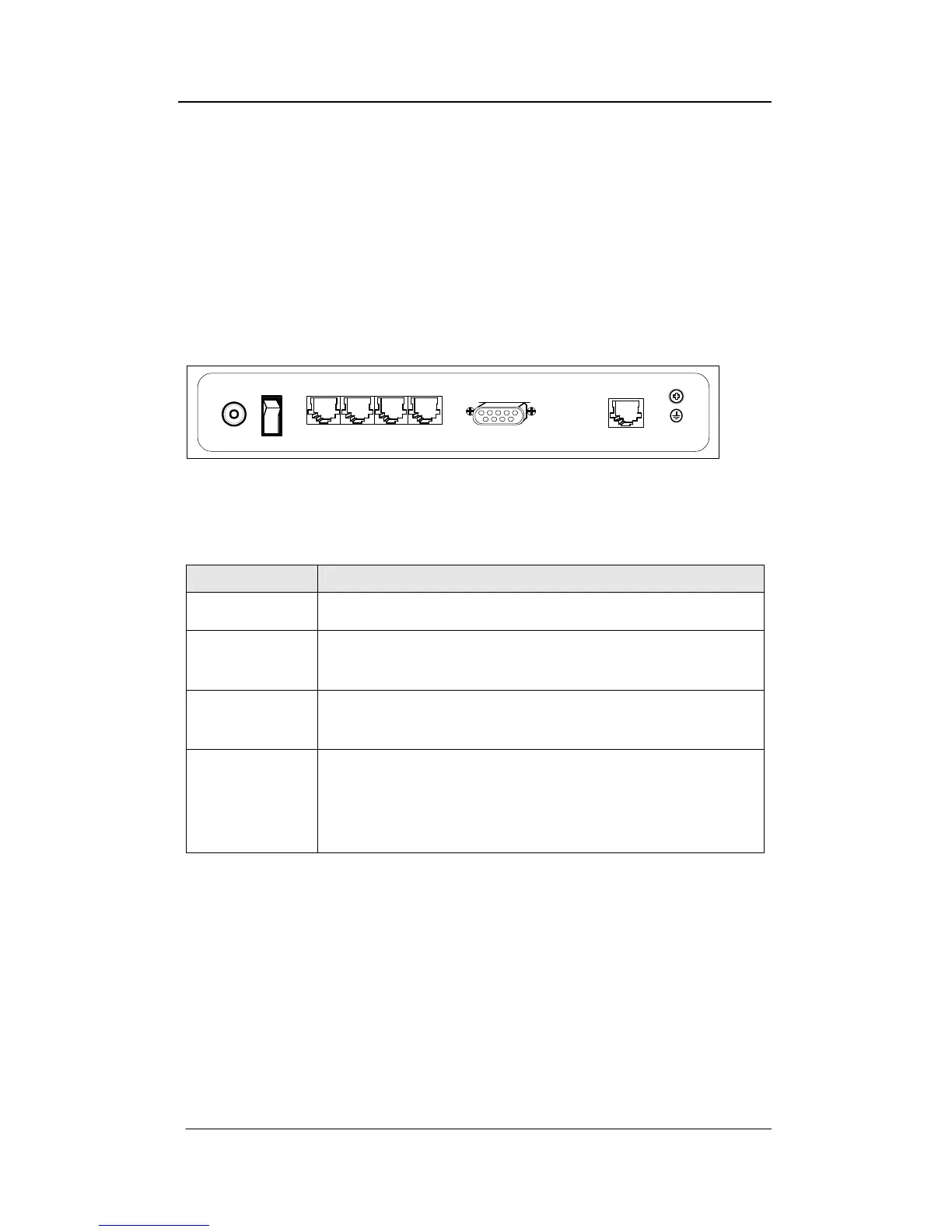

The rear side for the NBG440 Router
The NBG440 router provides power, console, and LAN cables, in addition to the G.SHDSL line
connector in the backside.
[Figure 1-2] The rear side of NBG440
[Table 1-3] The table below explains each connector
Connector Explanation
DC5V Connect to a DC 5V power adapter (an external 5V 2A adapter).
LAN
(RJ-45)
Connect to a UTP cable for communication with network devices such
as user's computer, hub, switch, and router.
CONSOLE
(DB-9)
Connect to a console cable for a serial communication with a user's
computer.
LINE
(RJ-45)
Connect the line cable to the 8-pin RJ-45 connector designated S0 / S1.
You can connect 2-wires or 4-wires to the LINE port.
- S0 uses 4th and 5th pin of the RJ-45 connector.
- S1 uses 1st and 2nd pin of the RJ-45 connector.
CONSOLE
LINE
DC5V
LAN
1 2 3 4
