Product Appearance
The front side for the NBG440 Router
The NEXPEED NBG440 router has various LEDs in the front panel to provide port status
information in real time.

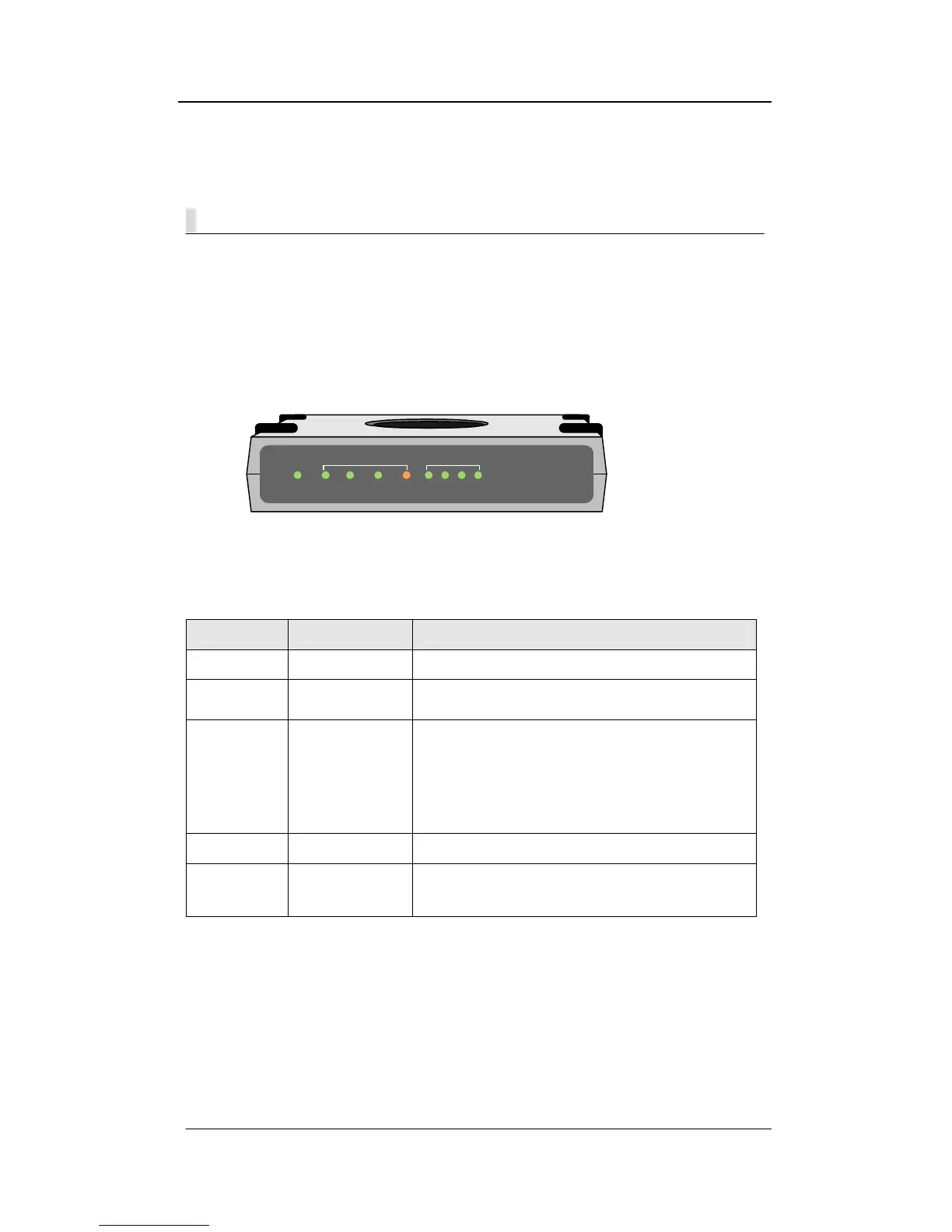

[Figure 1-1] The front side of NBG440
LEDs in the front side of the NBG440 router shows router’s status at the time.
[Table 1-2] Status of LEDs
LED Status & Color DESCRIPTION
PWR Off, Solid green On when power is supplied to the router
(LINE) 4W
Solid green,
Solid orange
When the SHDSL is 2-wire mode, the color is green.
When the SHDSL is 4-wire mode, the color is orange.
(LINE) S0, S1
Off, Solid green,
Flashing green
On when the line is trained and the serial protocol is up.
- S0 : Sync. status for LINE1 (4th and 5th)
- S1 : Sync. status for LINE2 (1st and 2nd)
Blinks when the line is connected properly and the
synchronization process is taking place.
(LINE) ACT Flashing orange Blinks when a SHDSL port receives data.
(LAN)
1, 2, 3, 4
Off, Solid green,
Flashing orange
On when the Ethernet device is connected.
Blinks when a LAN port receives a packet.
PWR 4W S0 S1 ACT 1 2 3 4
LINE LAN
