GEO M10 HARDWARE SETUP PROCEDURE Page 23/79

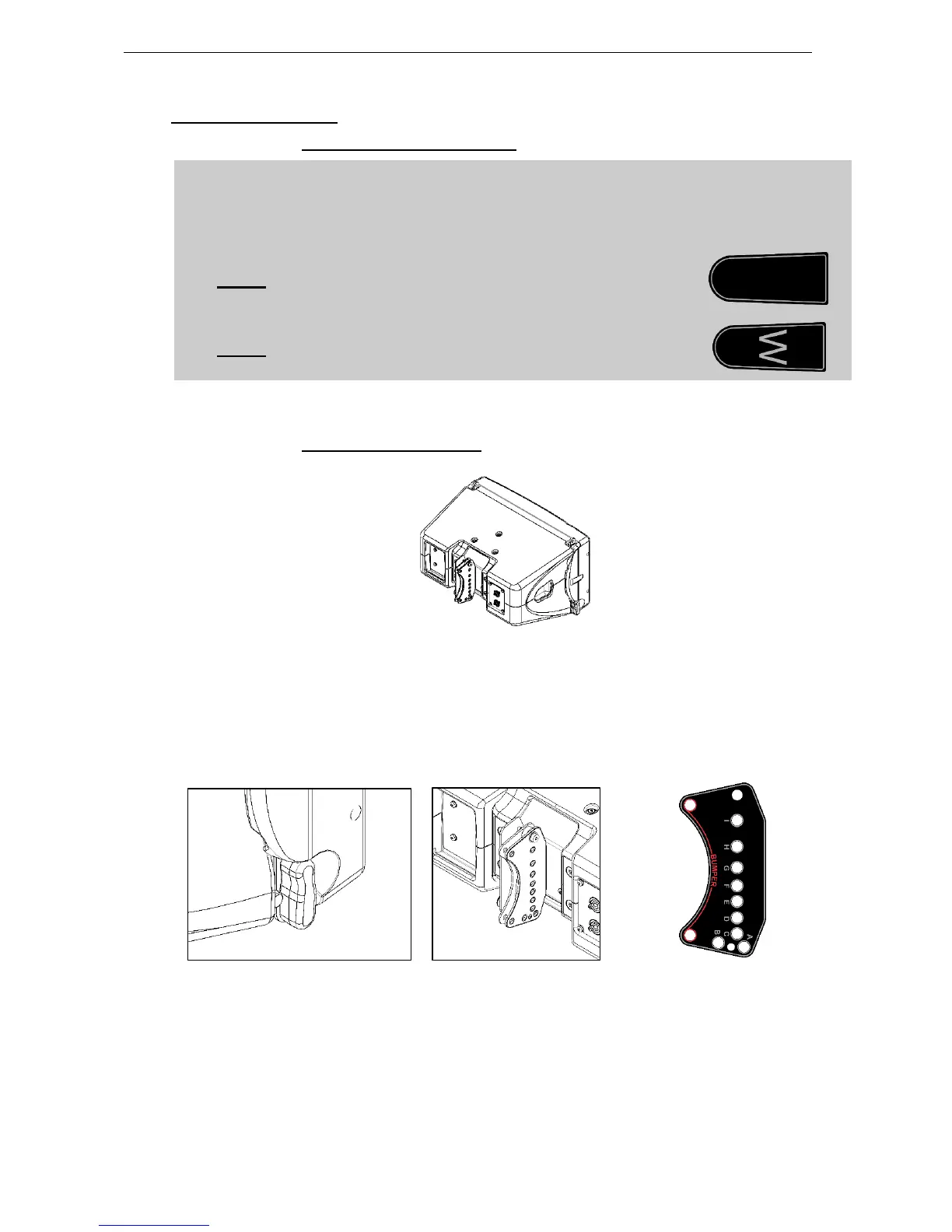

6.2 General Description
6.2.1 GEO M1012 and GEO M1025
IMPORTANT
GEO M1012 & GEO M1025 share the same geometry and fittings, but different wavefront
curvatures. In order to distinguish one from the other,
GEO M1012 is marked with the following sign on its sides:
GEO M1025 is marked with the following sign on its sides:
6.2.2 GEO M10 rigging system
GEO M10 features a 3 points rigging system, 2 for front connection, and 1 for rear connection and angle
splay settings.
- Front connection of two subsequent modules is ensured by an AutoRig
TM
system, with 3 positions:
open / ready to lock / locked (only on touring version).
- Rear connection of two subsequent modules is ensured by a link bar, with one safety point on a latch
and one quick release pin to adjust angle settings.
GEO M10 front rigging points GEO M10 rear rigging points GEO M10 angle settings
