Page 8/79 GEO M10 GENERAL SET-UP INSTRUCTIONS
2 GEO M10 GENERAL SET-UP INSTRUCTIONS

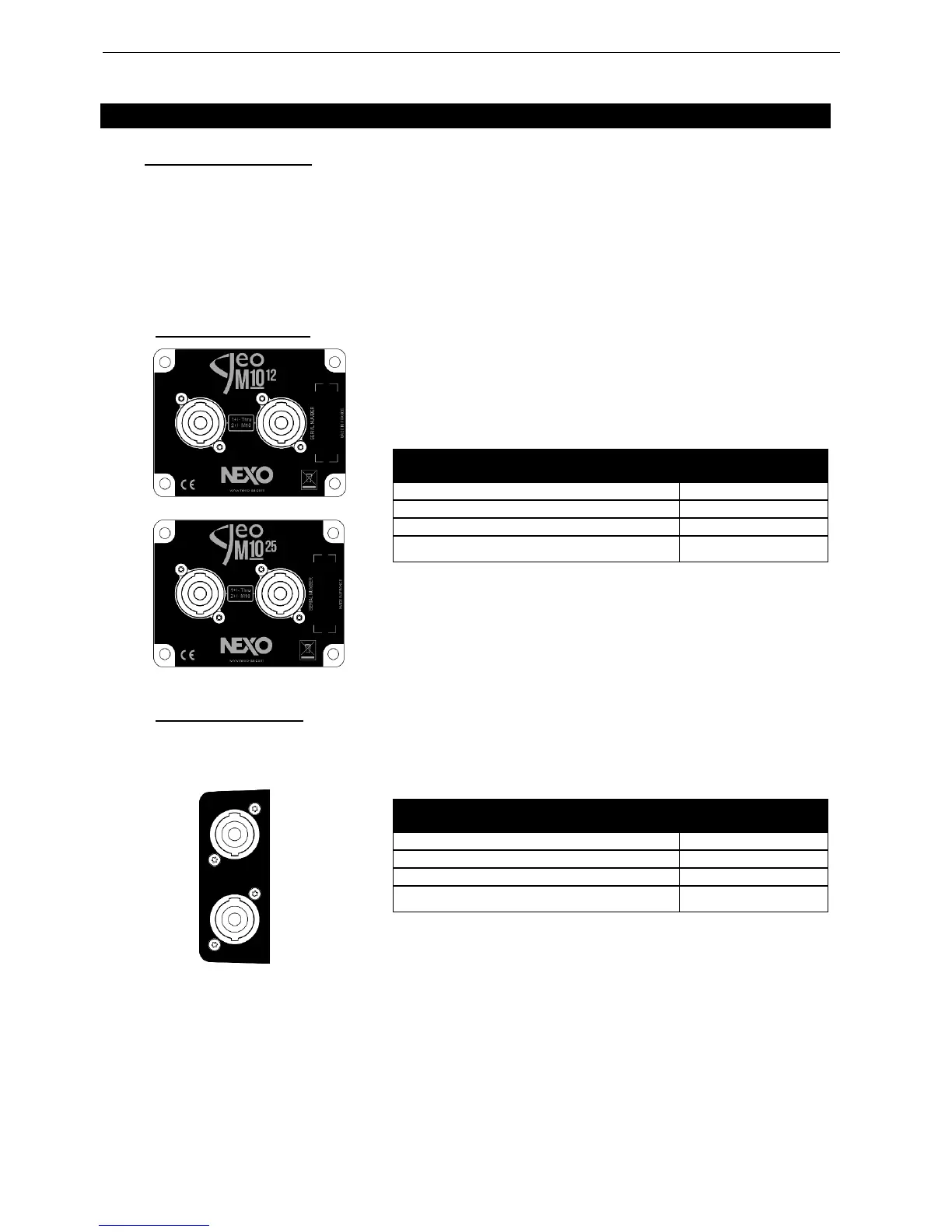

2.1 Speaker connection
GEO M10 and MSUB15 are connected with Speakon NL4FC plugs (not supplied). A wiring diagram is
printed on the connection panel located on the back of each cabinet. The 4 pins of the Speakon sockets
identified in / out are connected in parallel within the enclosure.
Either connector can be used to connect amplifier or to link to an additional GEO M10 cabinet or to link
to an optional MSUB15 (if present). Therefore, a single 4-conductor cable can connect two amplifier
channels to various GEO M10s and/or MSUB15 subwoofers.
2.1.1 GEO M10 connectors
2.1.2 MSUB15 connectors
MSUB15 features 2 connector panels with 2 Speakon NL4 each so that cabling is always done at the
back independently of cabinet being set frontwards or rearwards for cardioid configurations.
Speakon Connector
M1012 & M1025
1(-)

Through
1(+)

Through
2(-)

GEO M10 (-)
2(+)

GEO M10 (+)
Speakon Connector
MSUB15
1(-)

MSUB15 (-)
1(+)

MSUB15 (+)
2(-)

Through
2(+)

Through
