Page 34/79 GEO M10 HARDWARE SETUP PROCEDURE

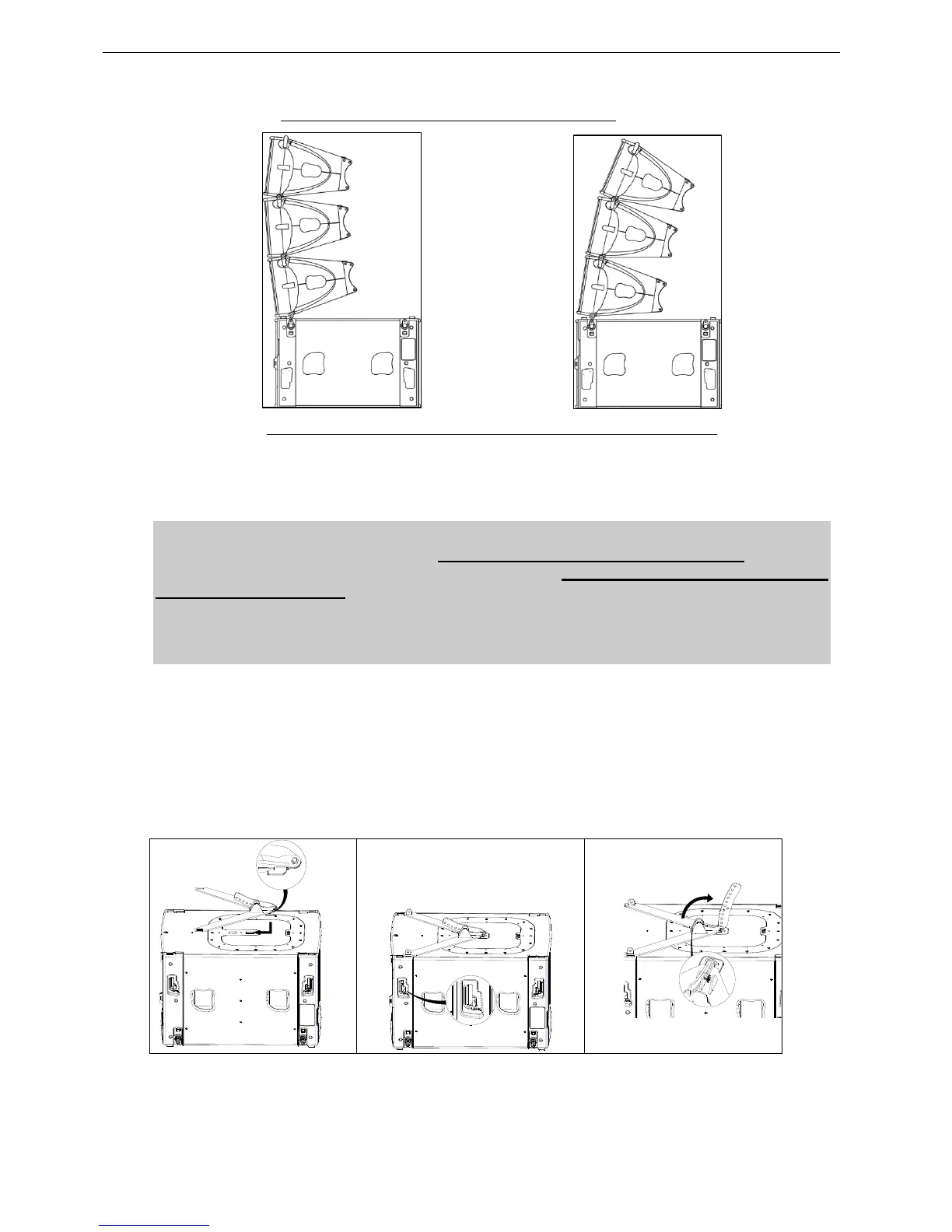

6.3.4 MSUB15 and GEO M10 with Ministack adaptor
Ministack adaptor only allows to stack GEO M10 in “left” configuration
Required item
- 1 x VNT-MNSTKM10
IMPORTANT
Ground stack assembly is rated for a maximum of 2 x SUBM15 + 3 x GEO M10 in any inter
cabinet angle configuration with +/-12° initial angle, provided this device is assembled
according to below rules:
- MSUB15 must always be installed on a horizontal surface
- Public is not allowed within a safety area which radius is equal or higher than
assembly height.
Procedure
- Position first MSUB15 on the ground
- Position second MSUB15 (front or back) on top of first, and lock front and rear connecting points
- Insert MNSTKM10 back into MSUB15 rear upper slot, and push it forward so that front opening are
aligned with MSUB15 front connecting points.
- Unlock upper MSUB15 connecting points
- Pull the latch to unlock the link bar
