Page 50/79 GEO M10 HARDWARE SETUP PROCEDURE

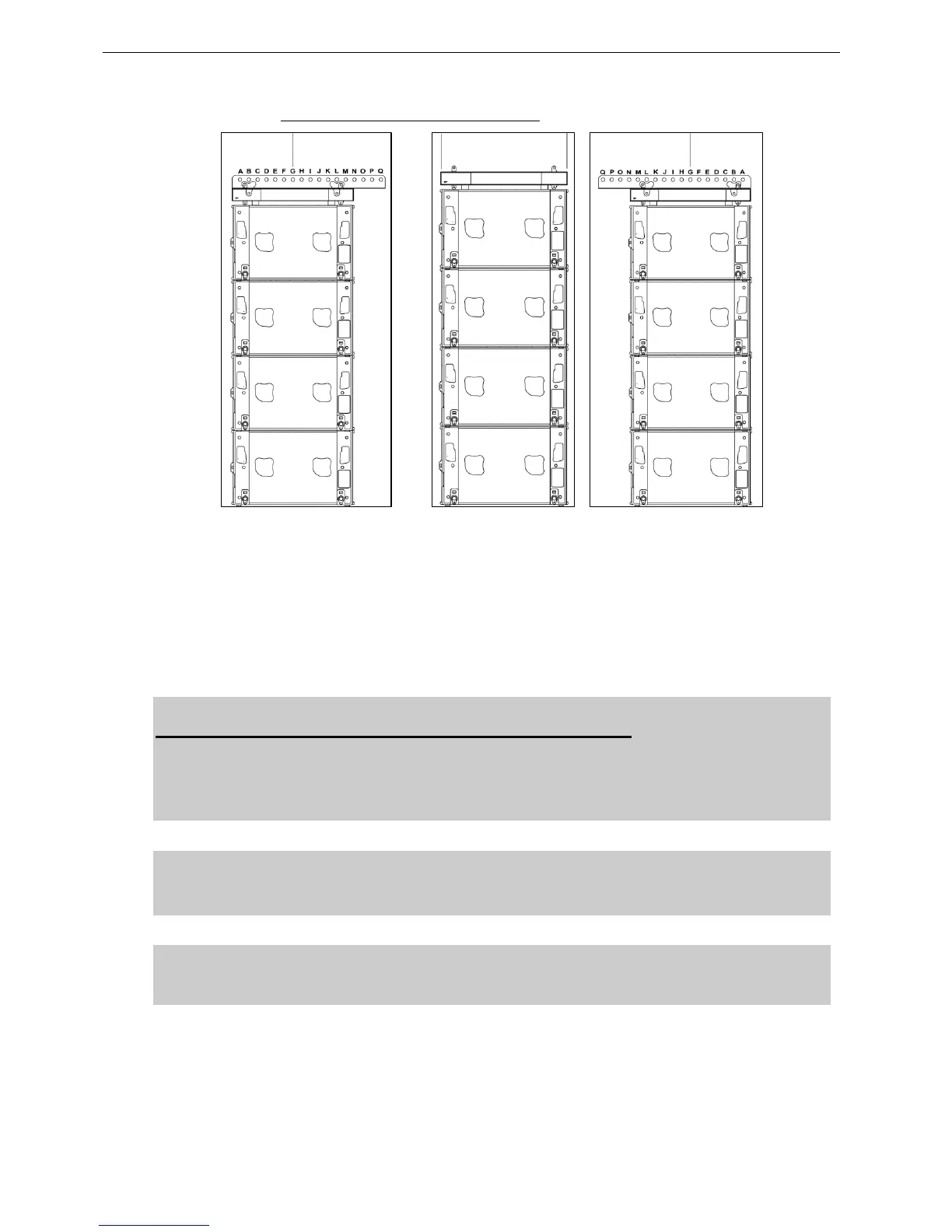

6.4.4 MSUB15 flown with Touring Bumper
Required items
- 1 or 2 hoists (not provided).
- 1 x VNT-BUMPM10
- 1 x VNT-EXBARM10 to fly on a single rigging point
IMPORTANT
When flying MSUB15 cluster, VNT-BUMPM10 must be set at 0°
- If cluster is flown from 2 points, bumper must be maintained horizontal in its definitive
position as well as when lifting or lowering the cluster
- If cluster is flown from a single point, extension bar must be used and hoist connected
to “G” position
IMPORTANT
Maximum MSUB15 quantity for flown vertical cluster with VNT-BUMPM10 is 8.
Please check NS1 for mechanical Safety Working Load and acoustic computations.
IMPORTANT
Motor hoist must be rated to support entire cluster weight. Please check configuration
in NS1 for proper motor hoist rating
