GEO M10 HARDWARE SETUP PROCEDURE Page 47/79
Please check NS1 for mechanical Safety Working Load and acoustic computations.
IMPORTANT
Motor hoist must be rated to support entire cluster weight. Please check configuration
in NS1 for proper motor hoist rating

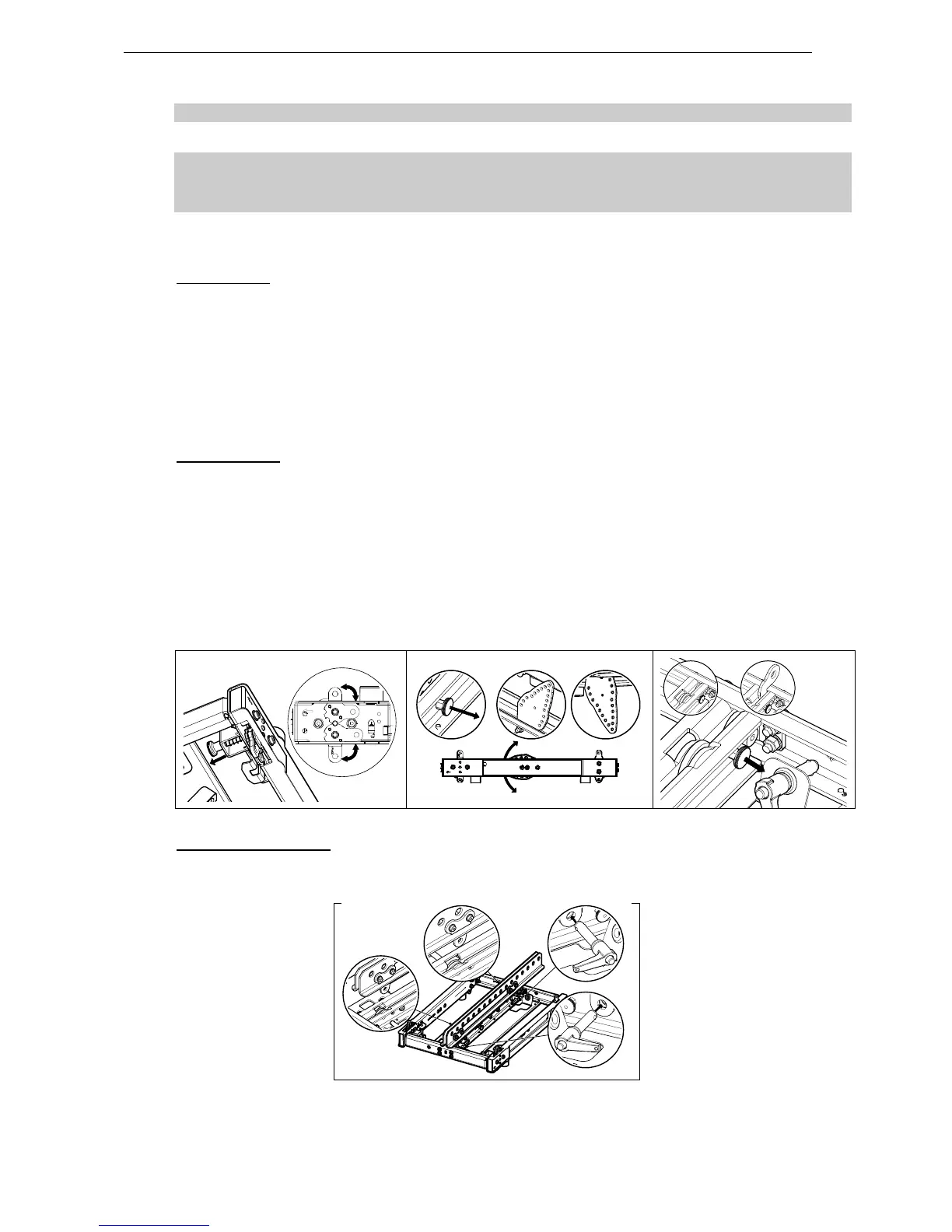

Procedure
GEO M10 Left
- Position first GEO M10 so that Autorig
TM
is at the bottom
- Pull the bumper front latches, rotate the lower links so that connection points are double leg and
release the latches.
- Position bumper on top of first GEO M10 and lock front points to the bumper with 2 BL820 quick
release pins.
- Connect the bumper link bar (0° / “S" position) to GEO M10 rear rigging plate (hole marked “bumper”)
Lock with the quick release pin BL0825.
GEO M10 Right
- Position first GEO M10 so that Autorig
TM
is at the top and set in automatic lock position
- Pull the bumper front latches, rotate the lower links so that connection points are single leg and
release the latches.
- Position bumper on top of first GEO M10, front points will lock automatically
- Connect the bumper link bar (0° / “S" position) to GEO M10 rear rigging plate (hole marked “bumper”).
Lock with the quick release pin BL0825.
- If flying with bumper only, pull front and rear center latches, and release front and rear bumper
connecting points.
Subsequent GEO M10s
- If required, position VNT-EXBARM10 frontwards or rearwards into VNT-BUMPM10 slots and lock
devices with the quick release pins 12x40 stored on VNT-BUMPM10.
