2.1 Speaker connection
GEO M620 and M6B are connected with Speakon NL4FC plugs (not supplied). The 4 pins of the 2
Speakon sockets identified in / out are connected in parallel within the enclosure.
Either connector can be used to connect to NXAMP or to link to an additional Geo M6 cabinet.
Therefore, a single 4-conductor cable can connect two NXAMP channels to various Geo M620 and
M6B.

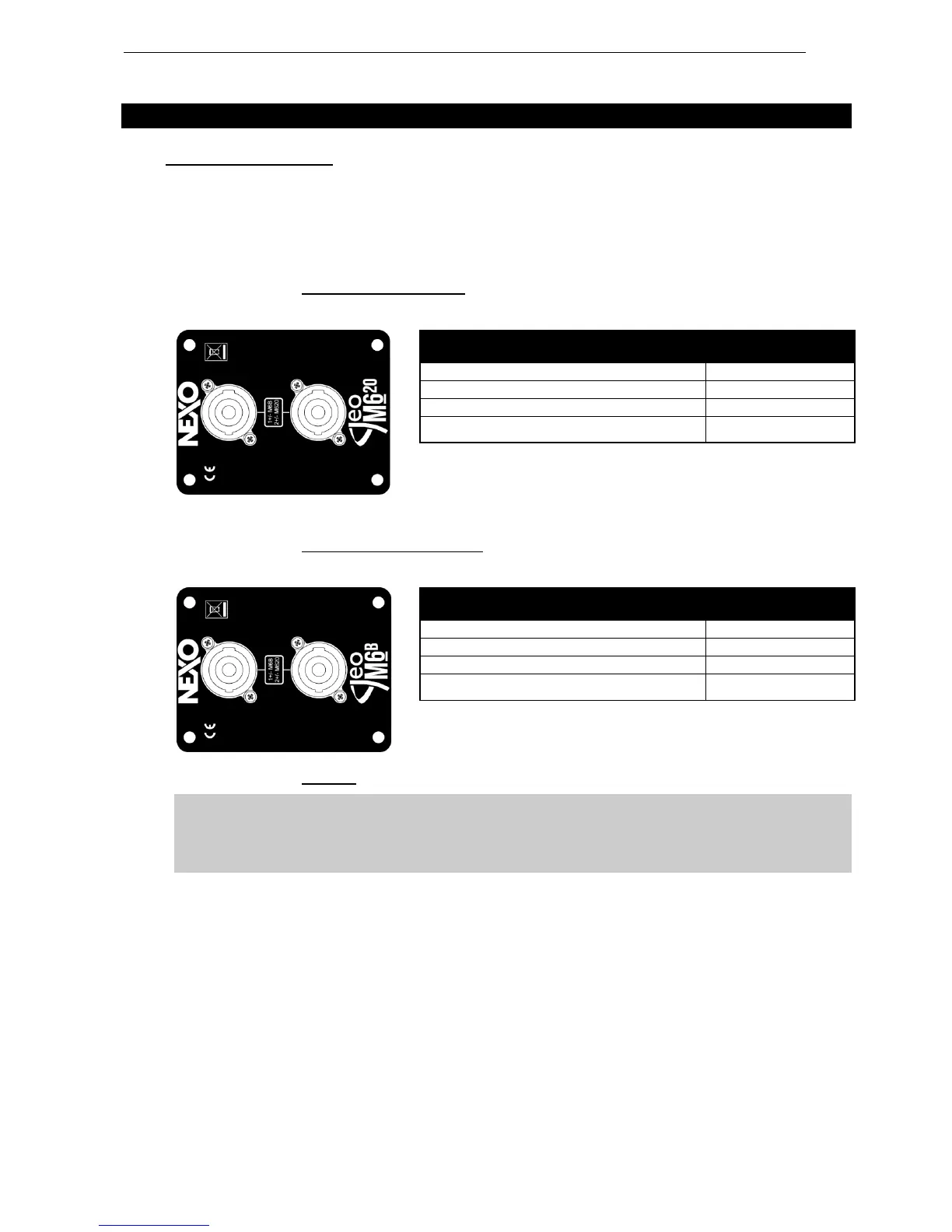

GEO M620 connectors 2.1.1
Connectors are wired as follows:
GEO M6Bass connectors 2.1.2
Connectors are wired as follows:
Cabling 2.1.3
IMPORTANT
Long speaker cables induce capacitive effects – up to hundreds of pF depending on the
quality of the cable - with a low-pass effect on high frequencies. If long speaker cables
must be used, ensure that they do not remain coiled while in use.
Speakon Connector
M620
1(-)

Through
1(+)

Through
2(-)

Geo M620 (-)
2(+)

Geo M620 (+)
Speakon Connector
M620
1(-)

Geo M6Bass (-)
1(+)

Geo M6Bass (+)
2(-)

Through
2(+)

Through
