Page 32/62 GEO M6 HARDWARE SETUP PROCEDURE
1 to 3 GEO (maximum) M6 truss or cable mounted 8.3.5
Required items
- 1 x GMT-LBUMP
- 1 x GMT-LBADPT
- 1 x VNT-TCBRK (truss mounting) or 1 x VNT-XHBRK (cable mounting)
- 3 x VXT-BL515 for first GEO M6
- 4 x VXT-BL515 for second and third GEO M6
IMPORTANT
Ensure that suspension point is strong enough to hold GEO M6 cluster weight (35 kg)
Procedure

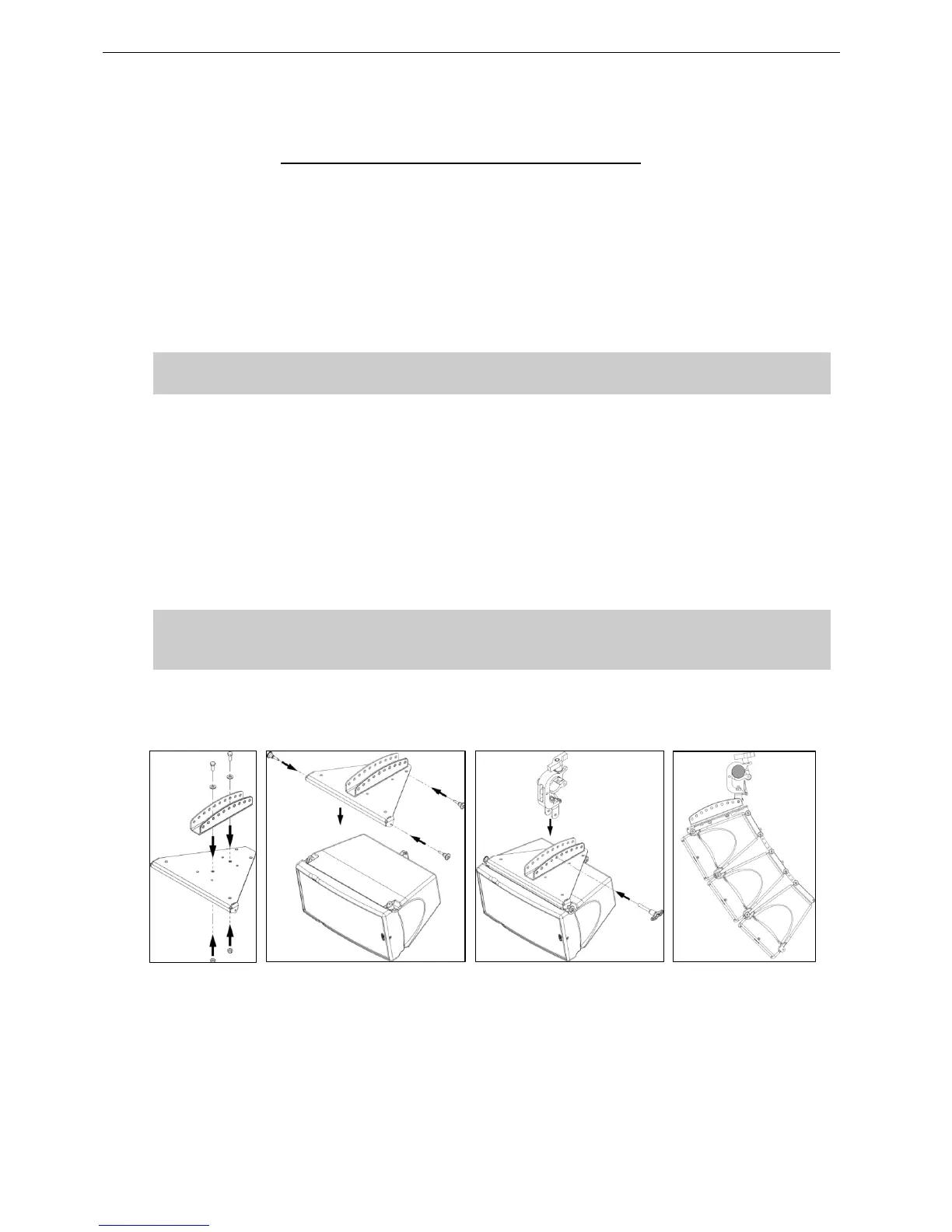

- Attach the GMT-LBADPT to the GMT-LBUMPER by using the screws, washers and bolts provided
with GMT-LBADAPT;
- Connect top cabinet to GMT-LBUMP with 3 x VXT-BL515 quick release pins
- Connect subsequent cabinets at required inter-angle values with 4 x VXT-BL515 quick release pins
- Connect truss clamp VNT-TCBRK or ring clamp VNT-XHBRK to GMT-LBADAPT by inserting 8x45
quick release pin in required holes for proper vertical aiming
IMPORTANT
Ensure that the 8mm pin is properly locked in GMT-LBADPT, and that 5mm pins are
properly locked into GEO M6
- Lift and position assembly, lock and secure clamp on rigging point.
