Nexo NXAMP4X1 Service Manual

NXAMP4x1
52

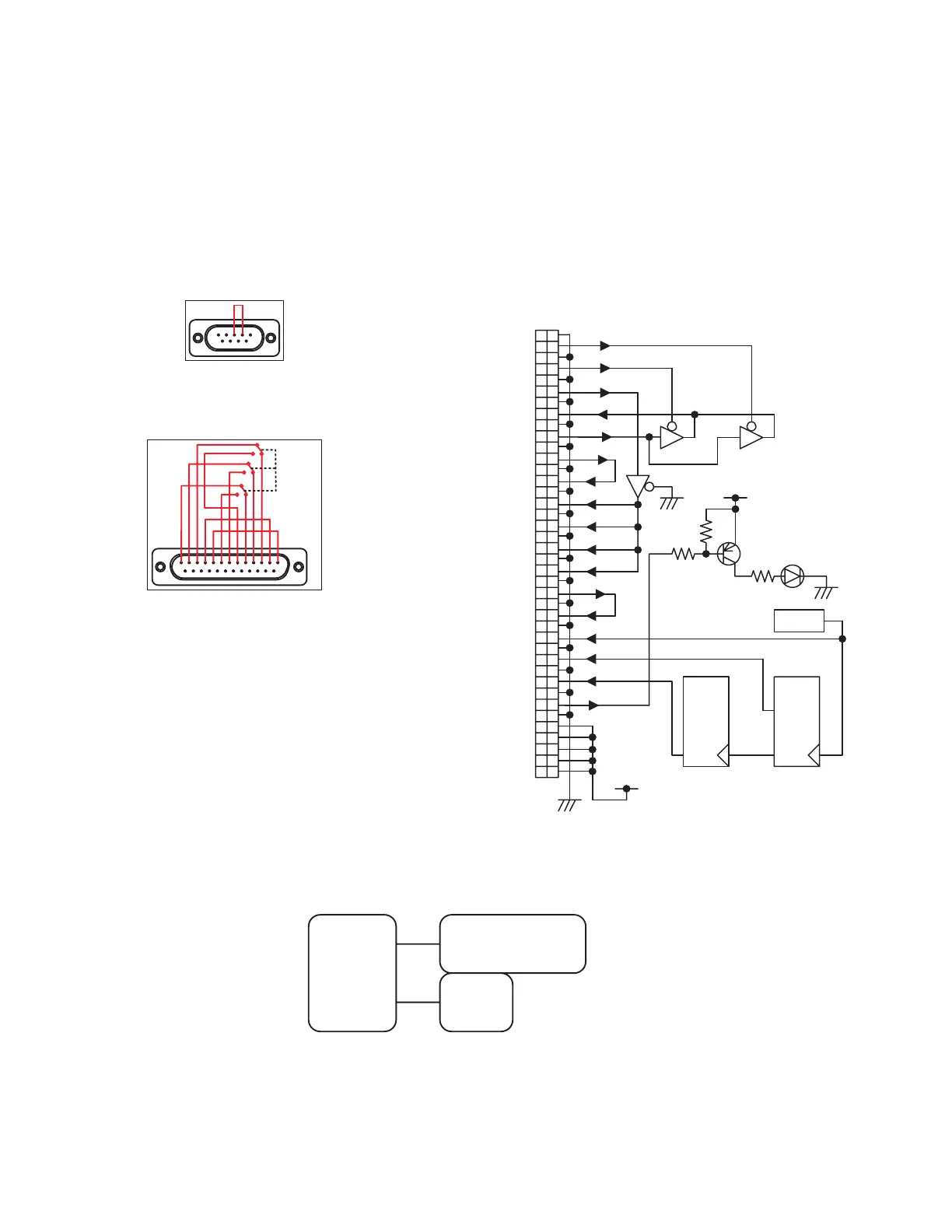

■ TEST PROGRAM
1. Required items
Computer : DOS/V computer x1 (Pentium 200MHz or more, Windows XP, USB Port)
Software : Software for version up (JTAG Programmer)
Cable : RLINK-ST (USB-JTAG adapter)
Measuring equipment : Power consumption meter
Tools : RS-232C jig x1, GPI jig x1, SLOT jig x1
RS-232C jig
D-SUB 9 pin female connector
GPI jig
D-SUB 25 pin male connector
SW1
SLOT jig
a-1
/ETH_CS
/ES_CS
SPI_CLK
SPI_MISO
SPI_MOSI
ES_SERIAL_RX
ES_SERIAL_TX
INT_FROM_ES
ES_GPI1
ES_GPI2
ES_GPI3
ES_I2S_DATA0
ES_I2S_DATA1
ES_MCLK
ES_SCLK
ES_LRCK
SOURCE_SEL
Q0
Q1
Q2
Q3
b-1
a-40 b-40
3.3D
LV169
Q0
Q1
Q2
Q3
LV169
XTAL
12.288MHz
3.3D
2. Test connection image
NXAMP
Measuring
instrument
SLOT, GPI, RS-232C jig
