NXAMP4x1
2

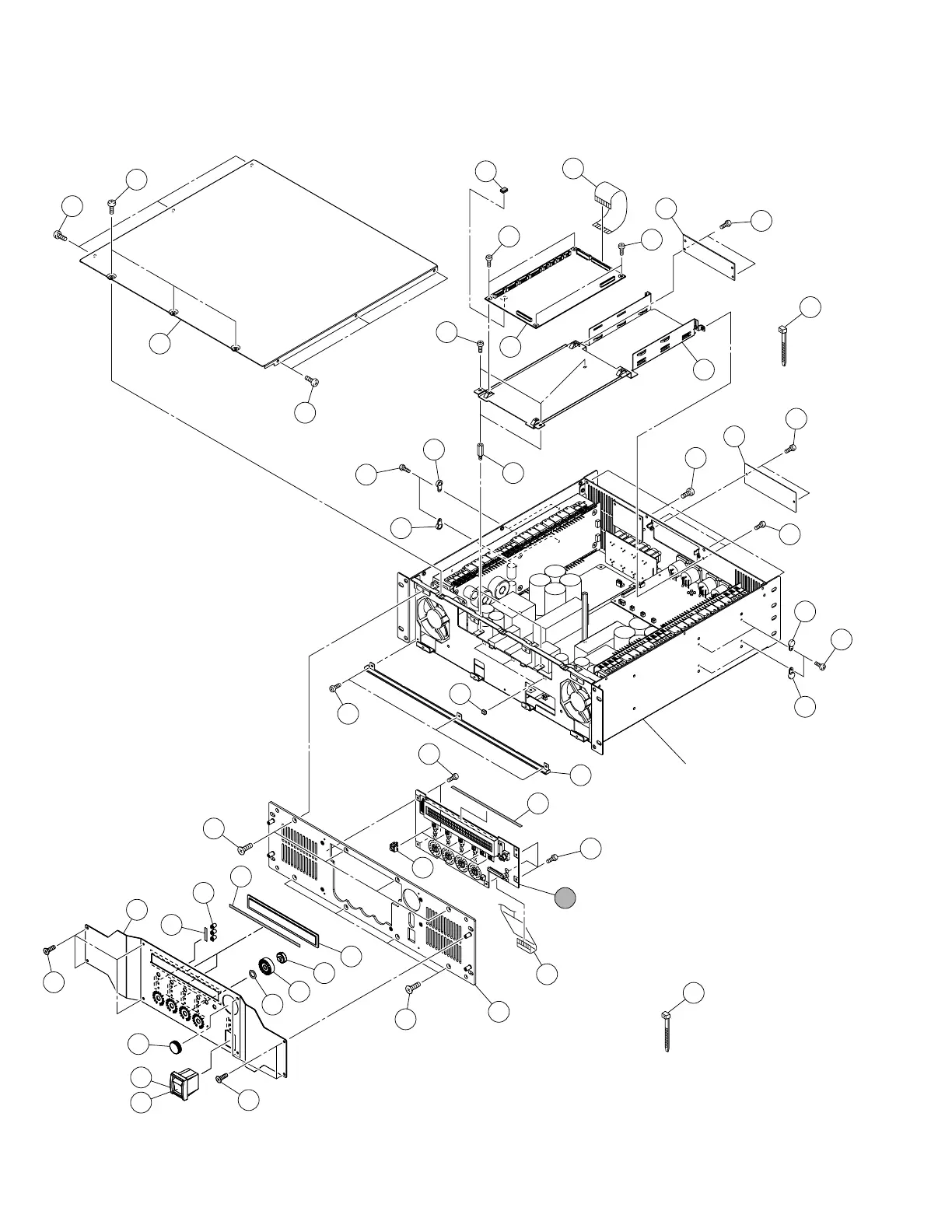

■ OVERALL ASSEMBLY 1/2
Bottom section
(See page 4)
LCD Assembly
(See page 8)
110
110a
360
370
380
390
400
410
420
425
430
440
450
455
460
470
480
490
500
505
500
510
510
530
540
540
545
550
560
580
570
590
590
600
610
620
630
350
640
650
650
650
650
660
660
670
660
660
670
340
430
