5) Click the [Create] button, and the following JTAG Programmer screen appears. (Fig. 3)
6) Click the [Browse] button to select the desired file.
Check the [All] at Select region.
Select Program/Verify at Select operation.
Note:
This operation is needed when you start up for the first time. Click the [Save] button to save the set up file so that this operation
will not be required again.

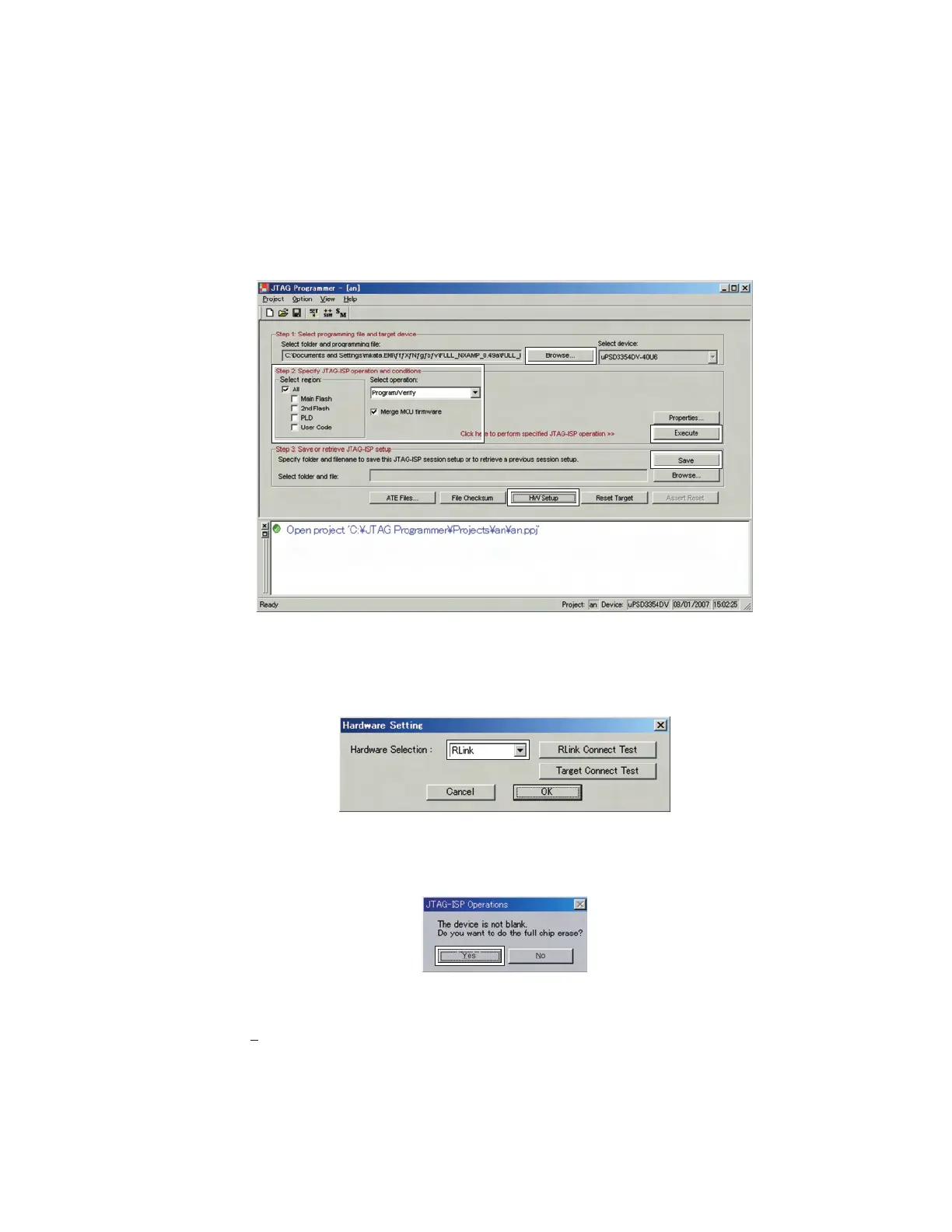

Fig. 3 JTAG Programmer screen
10) Click the [
Yes] button to start updating the firmware.
11) Restart the PC after the completion of the updating.
7) Click the [HW Setup] button, and the following hardware setting screen appears. (Fig. 4)
8) Select the RLink at Hardware selection.
Fig. 4 Hardware Setting screen
9) Click the [Execute] button, and the following JTAG-ISP Operations screen appears. (Fig. 5)
Fig. 5 JTAG-ISP Operations screen
