NXES104 EXPANSION BOARD AND REMOTE CONTROL
NXES104 expansion board and remote control
On the back panel of the NXAMP4x1 Powered TDcontroller there is a slot where the user
can easily insert an expansion board to add digital inputs and remote control to the unit.
Today the only available expansion board is the NXES104, compatible with the
Ethersound™ network technology (in its ES100 version). This board offers 4 digital inputs
chosen among the 2 x 64 Channels of 24 bits / 48 KHz audio data of the Ethersound™
frame, and also remote control of the unit through the PC based application ESmonitor™.
WARNING! Only 48 KHz Ethersound networks are supported.

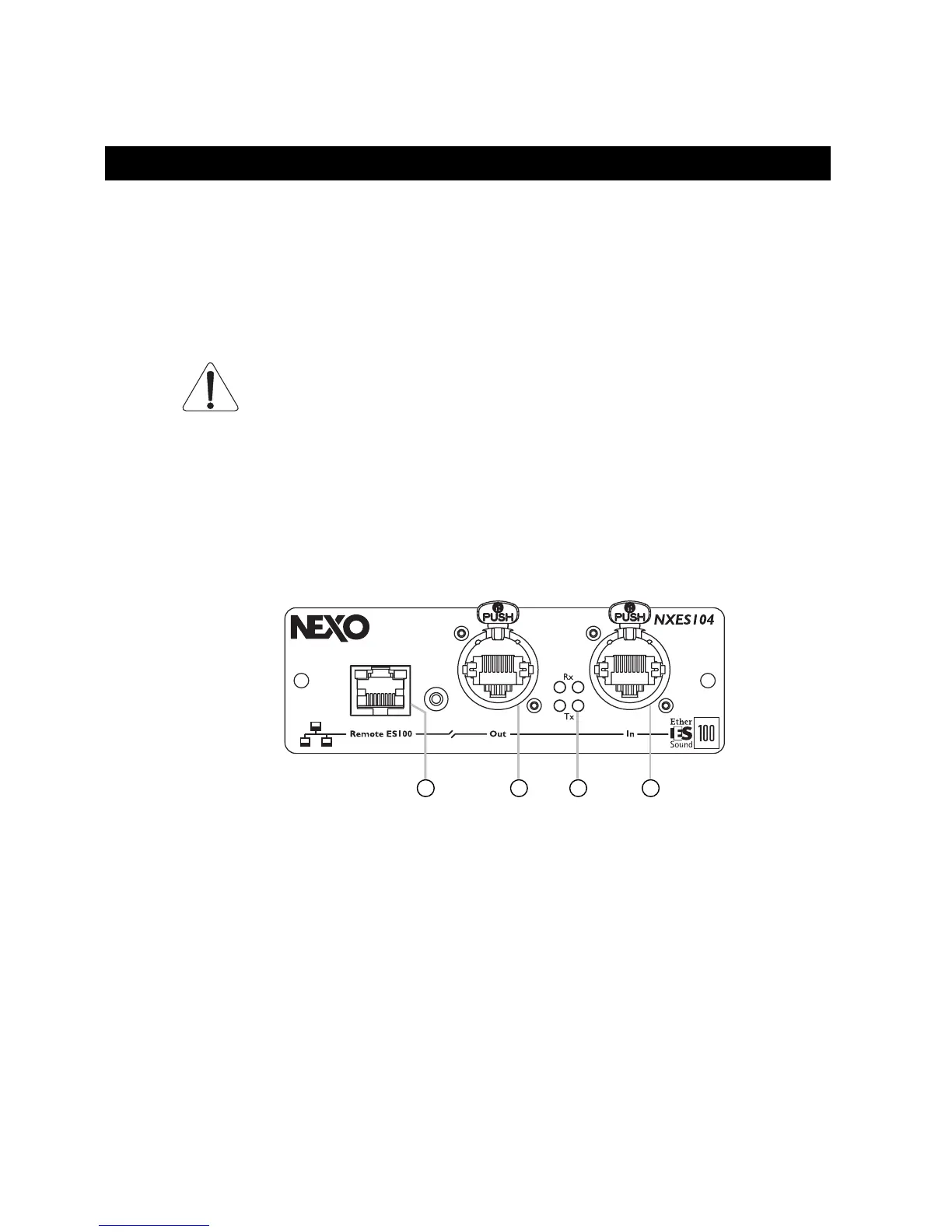

NXES104 Physical description
The NXES104 is designed to fit the NEXO’s slot form factor that can be located on the back
panel of the NXAMP Powered TDcontrollers.
NB: This slot features an 80-pins internal connector that is not compatible with the Yamaha
mini-YGDAI slot.
4 3 1 2
(1) Ethersound
™ IN Port
This Port features and Ethercon connector. Always use this type of connector to secure
your Ethersound™ network from unwanted unplugs. This type of connector also ensures a
longer life to the internal RJ-45 contacts, because it preserves it from external traction.
Use this port as an Ethersound™ IN port when connecting to an Ethersound™ network.
(2) Ethersound
™ network Status LEDs
These four LEDs reflect the status of the Ethersound™ links. The two LEDs next to the IN
port shows that data is received from the IN port (when the top one, marked “Rx” blinks)
or are send through the IN port (when the bottom one, marked “Tx” blinks).
PAGE 50 OF 80
