NXES104 EXPANSION BOARD AND REMOTE CONTROL
or electro-magnetic interferences may have an impact on the network, e.g. on particular
factory floors. Furthermore, fiber optic cables and Ethernet standard allow for segments up
to two km(1.24mi) long (cf. thin coaxial • 185m(607ft), UTP • 100m(328ft)) and thus
permit to connect remote nodes and buildings that otherwise would not be accessible.
To use Fiber Optic cable in EtherSound networks, Media Converters or dedicated
Ethersound™ devices such as AVAVRed-ES100/FoNeutrik (EtherSound Redundant link with
2 multimode optical OptiCon Neutrik connectors) must be used.
Installation inside the NXAMP4x1

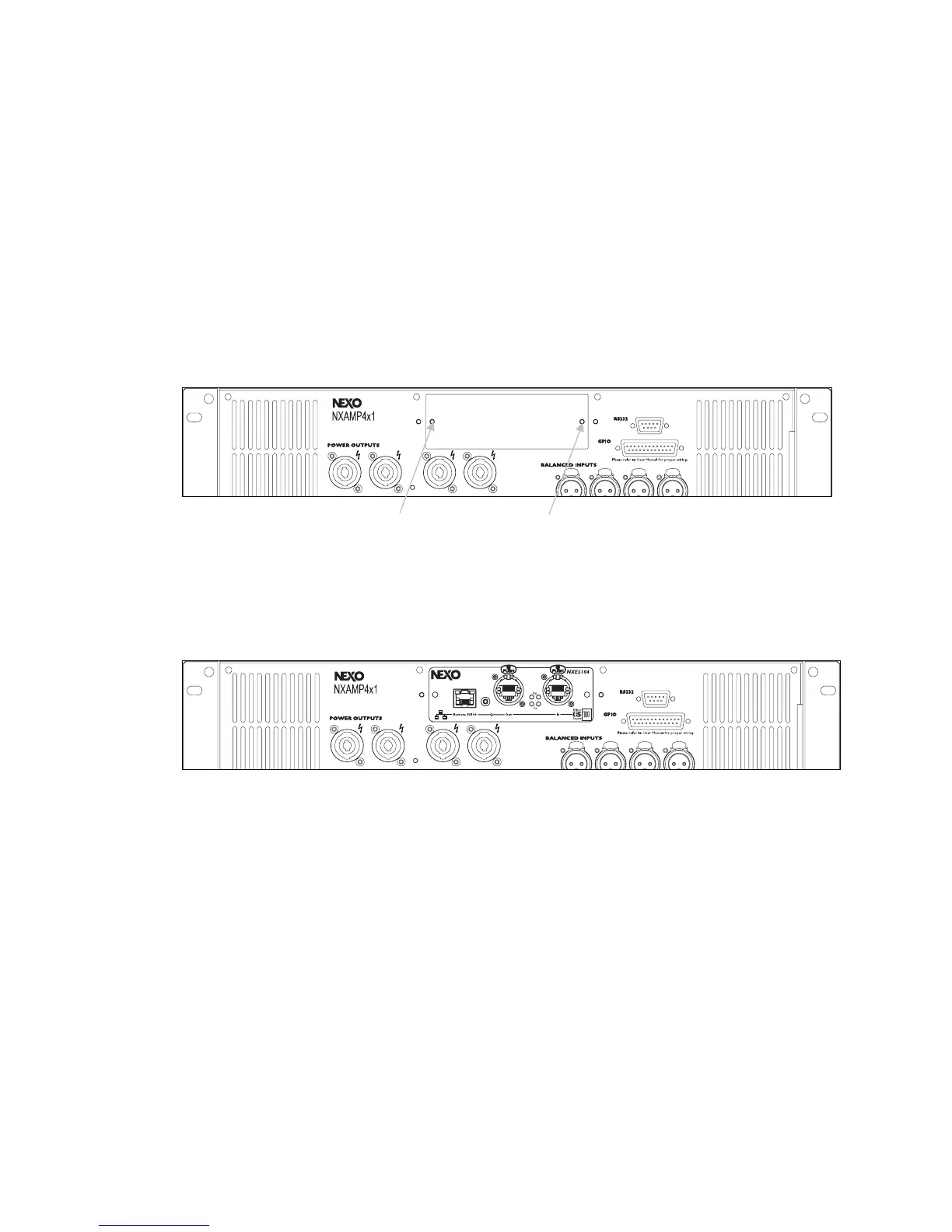

To install the NXES104 card inside an NXAMP4x1 Powered TDcontroller, first remove the
two screws on each side of the blank panel on the rear of the amplifier. Keep these screws
as they will be used with the NXES104 card.
Slide the NXES104 board inside the rails, and push it firmly inside the NXAMP4x1. Then put
the two screws back to fix the NXES104 on the rear panel of the NXAMP.
N.B.: Keep the blank panel in a safe place as you would need to put it back if you decide to
remove the NXES104 Board for some reason. Do not use the NXAMP4x1 Powered
TDcontroller without blank panel or expansion board fitted.
NXAMP control page in ESmonitor software
ESmonitor software by Auvitran is a free PC based application running under Windows XP
and Windows Vista, permitting full control over an Ethersound™ network. From this
software you have access to the routing of the network and to some specific control
depending on the device connected.
NEXO provides in each revision of the NXAMP4x1 firmware the last version of the
ESmonitor software that has been successfully tested with this firmware. It is
recommended to use this specific version of the ESmonitor software.
Please refer to the ESmonitor User Manual provided by Auvitran as a pdf file when
installing the ESmonitor application on your computer. Once your Ethersound™ network is
completed, you can access to the control page of the NXAMP4x1 Powered TDcontroller
shown bellow:
