Nexo PS Series User Manual

PS SERIES HARDWARE SETUP PROCEDURE Page 37/82
Procedure
Vertical
 12mm diameter screws (not provided) are required to secure the wall suspension plate on the
wal;
 Remove the 2 rear TORX screws holding connector plates on both sides of PS10R2 or PS15R2;
 Fill each screw hole with Locktite 243 or equivalent;
 Connect the suspension plate to the connector plate by using the srews provided with the VNI-
WS kit;
 Position the srews in the oblong hole so that required vertical angle is obtained;
 Secure the screws;
 Suspend and secure the cabinet to the wall suspension;
 Adjust horizontal angle.

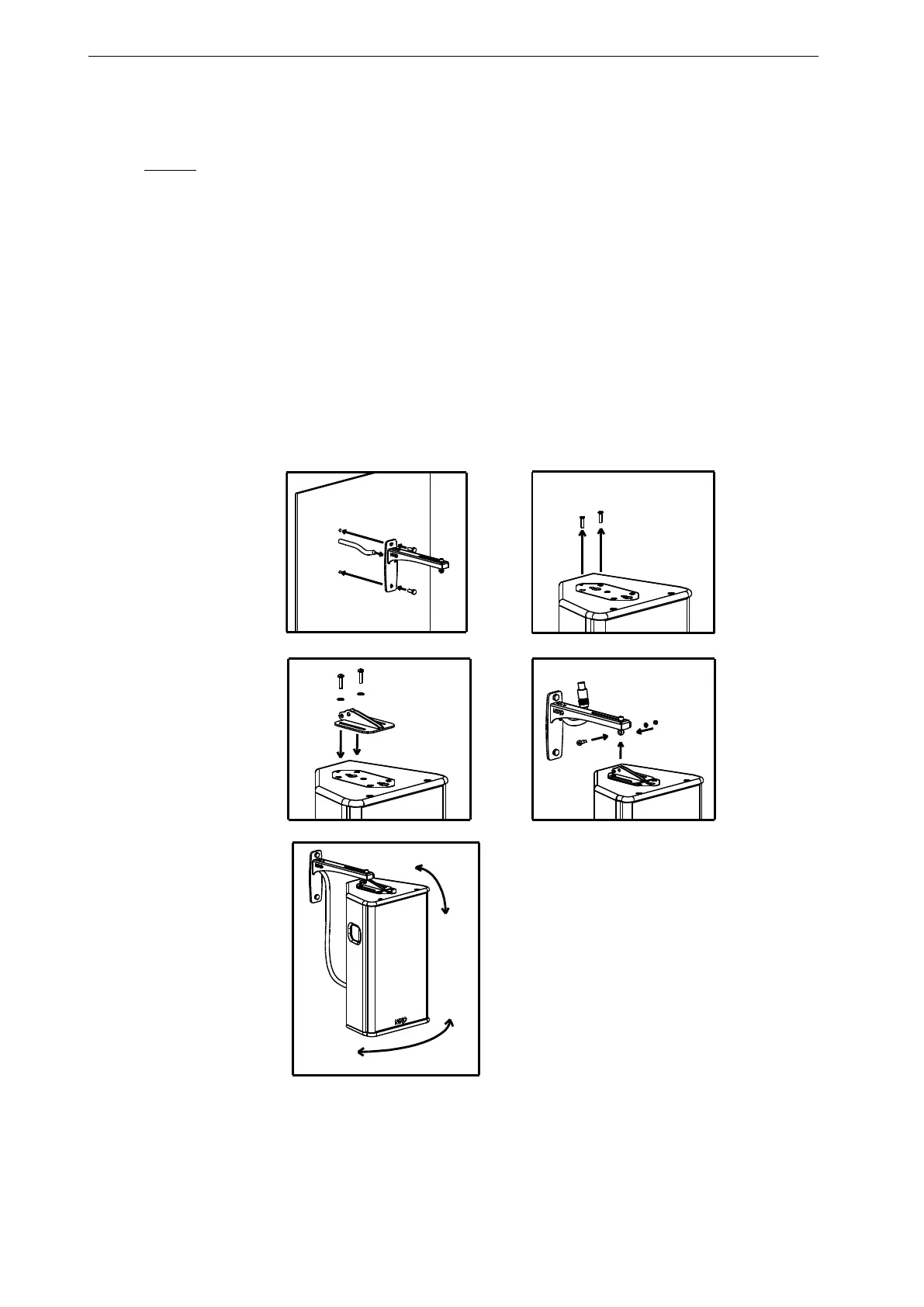

WALL SUSPENSION PROCEDURE FOR VERTICAL INSTALLATION
