Nexo PS Series User Manual

PS SERIES HARDWARE SETUP PROCEDURE Page 41/82
7.4.3 PS flown vertically
Required items
 1 x Flying Bar for PS Series (VNT-TTC)
 PS8: flying adaptor for PS8 (VNT-ADPT)
 1 x Lifting Ring and 1 ball-lock 8x45 (VNT-XHBRK & BL845, included)
 Or 1 x Truss hook and 1 ball-lock 8x45 (VNT-TCBRK & BL845, included)
IMPORTANT
Ensure that truss suspension point is strong enough to hold 4 times PS cabinet weight.
Procedure
PS8:
 install the flying adaptor by removing the two screws on the upper panel, and securing the flying
adaptor with loctite 243
IMPORTANT
In order to prevent screws from getting loose from the PS8, use blocking liquid
LOCTITE
TM
243 or equivalent the two screws securing the PS8 flying adaptor.
LOCTITE
TM
243 is available at NEXO or at your local distributor upon request.

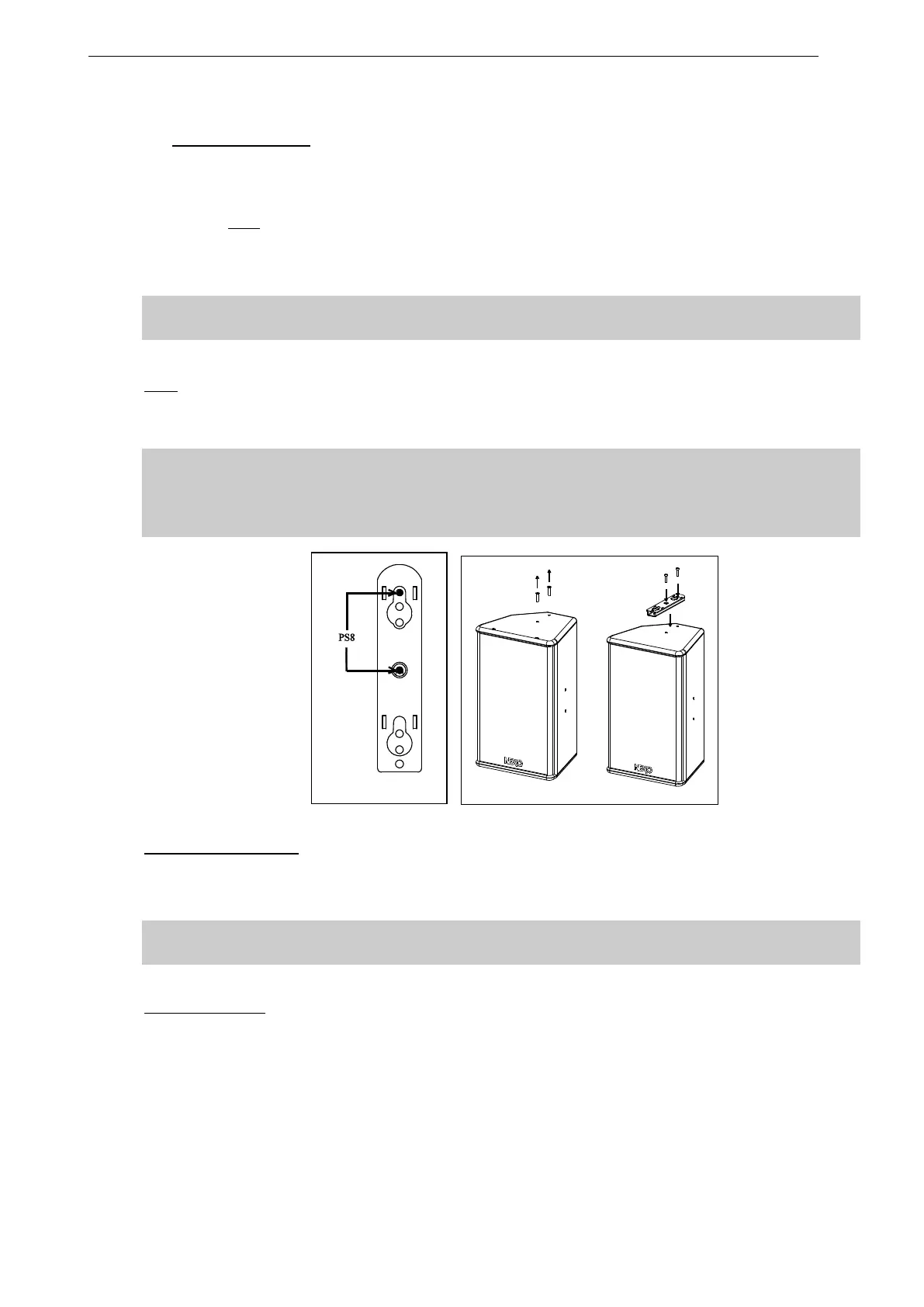

PS8 FLYING ADAPTOR INSTALLATION
All PS series cabinets:
 Slide flying bar VNT-TTC into PS connecting plate or adaptor oblong holes;
 Lock safety pin into PS connecting plate;
IMPORTANT
Ensure that safety pin is properly locked into PS connecting panel or adaptor.
Cable suspension:
 Connect lifting ring VNT-XHBRK to flying bar by inserting 8x45 quick release pin in required holes
for proper vertical aiming;
 Ensure lifting ring is properly locked to flying bar;
 Connect assembly to suspension point with sling and shackle (not provided).
