Nexo PS Series User Manual

PS SERIES HARDWARE SETUP PROCEDURE Page 43/82
7.4.4 PS flown horizontally
Required items
 1 x “U” Bracket for PS (VNT-SSBRK8/10 or 15)
 PS8: flying adaptor for PS8 (VNT-ADPT)
 1 x Lifting Ring (VNT-XHBRK)
 Or 1 x Truss hook (VNT-TCBRK)
IMPORTANT
Ensure that suspension point is strong enough to hold 4 times PS cabinet weight.
Procedure
PS8:
 install the flying adaptor by removing the two screws on the upper panel, and securing the flying
adaptor with loctite 243
IMPORTANT
In order to prevent screws from getting loose from the PS8, use blocking liquid
LOCTITE
TM
243 or equivalent the two screws securing the PS8 flying adaptor.
LOCTITE
TM
243 is available at NEXO or at your local distributor upon request.

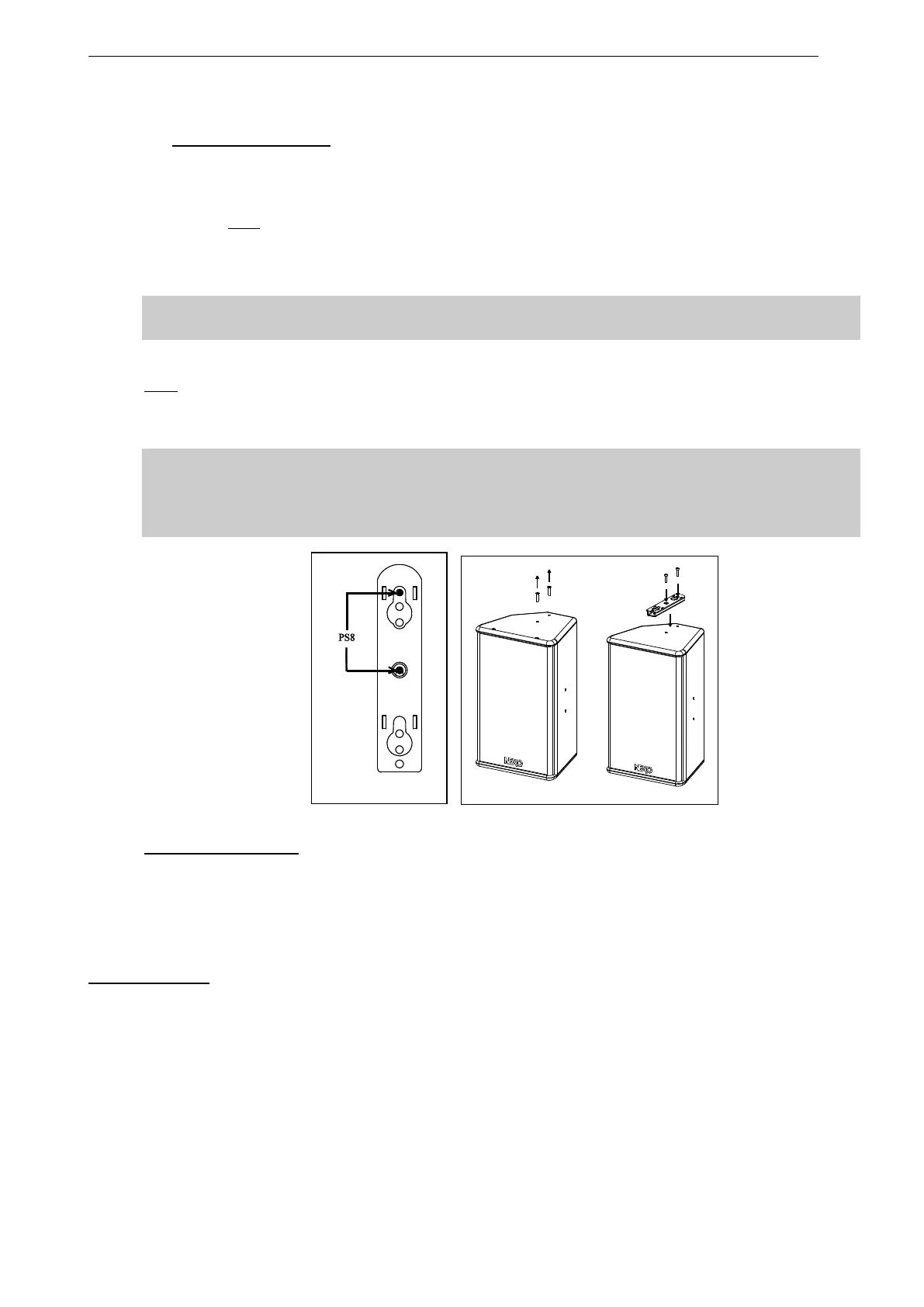

PS8 FLYING ADAPTOR INSTALLATION
All PS series cabinets:
 Insert male pole side of bracket into PS cabinet;
 Fold the opposite bar of the bracket until it is locked at 90° (a “click” from the locker will ensure
proper locking);
 Rotate the lever into the connecting panel until it is properly secured;
Cable suspension:
 Connect lifting ring VNT-XHBRK to “U” bracket by inserting 8x45 quick release pin dedicated
holes;
 Ensure lifting ring is properly locked to “U” bracket;
 Connect assembly to suspension point with sling and shackle (not provided).
