Page 60/82 TECHNICAL SPECIFICATIONS

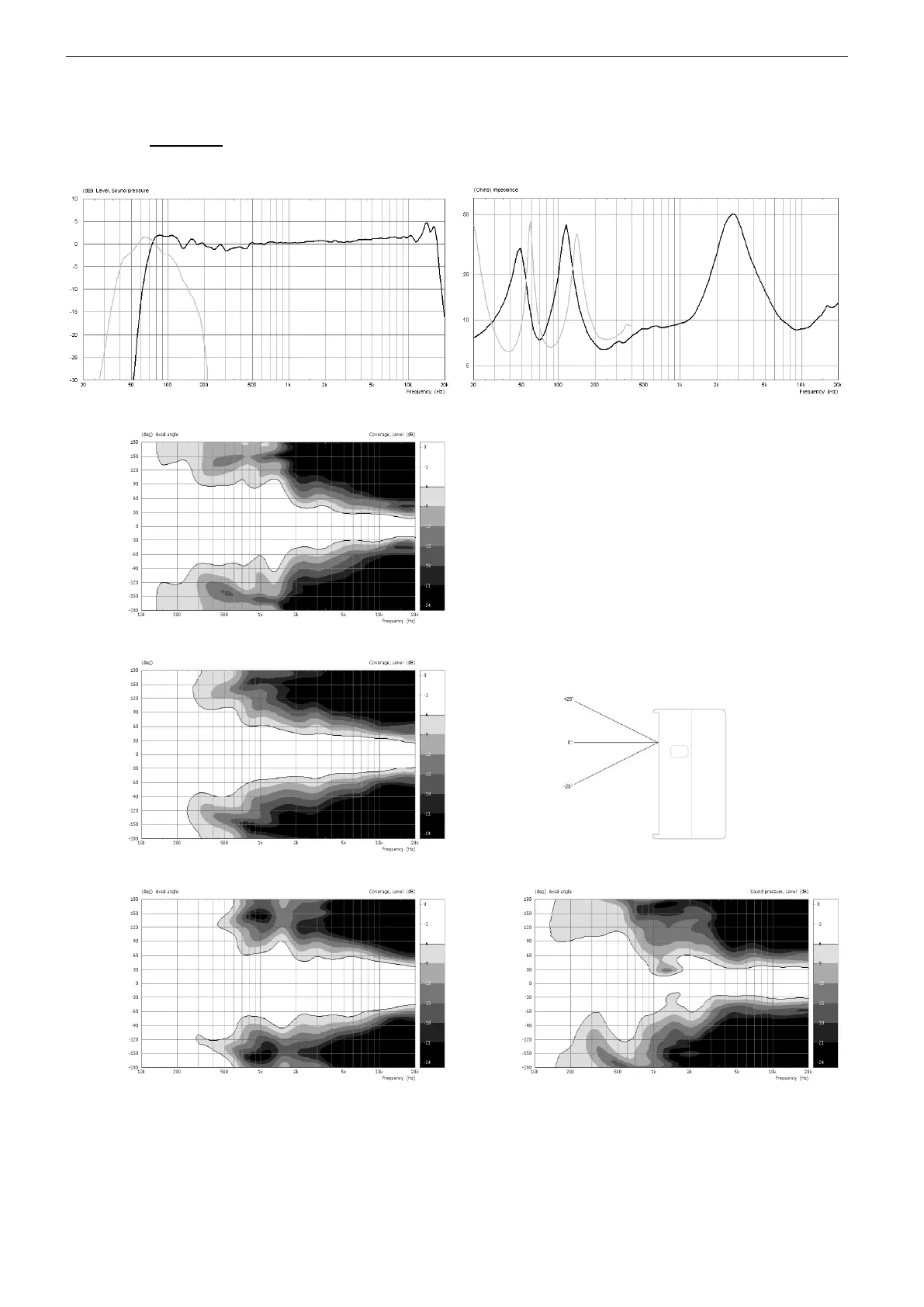

9.2.3 Diagrams

On-axis response LS600 (grey) & PS10 (black)

Impedance LS600 (grey) & PS10 (black)

Horizontal plane coverage, vertical orientation +25°

Horizontal plane coverage, vertical orientation 0°

Horizontal plane coverage, vertical orientation -25°

Vertical plane coverage
