TECHNICAL SPECIFICATIONS Page 71/82

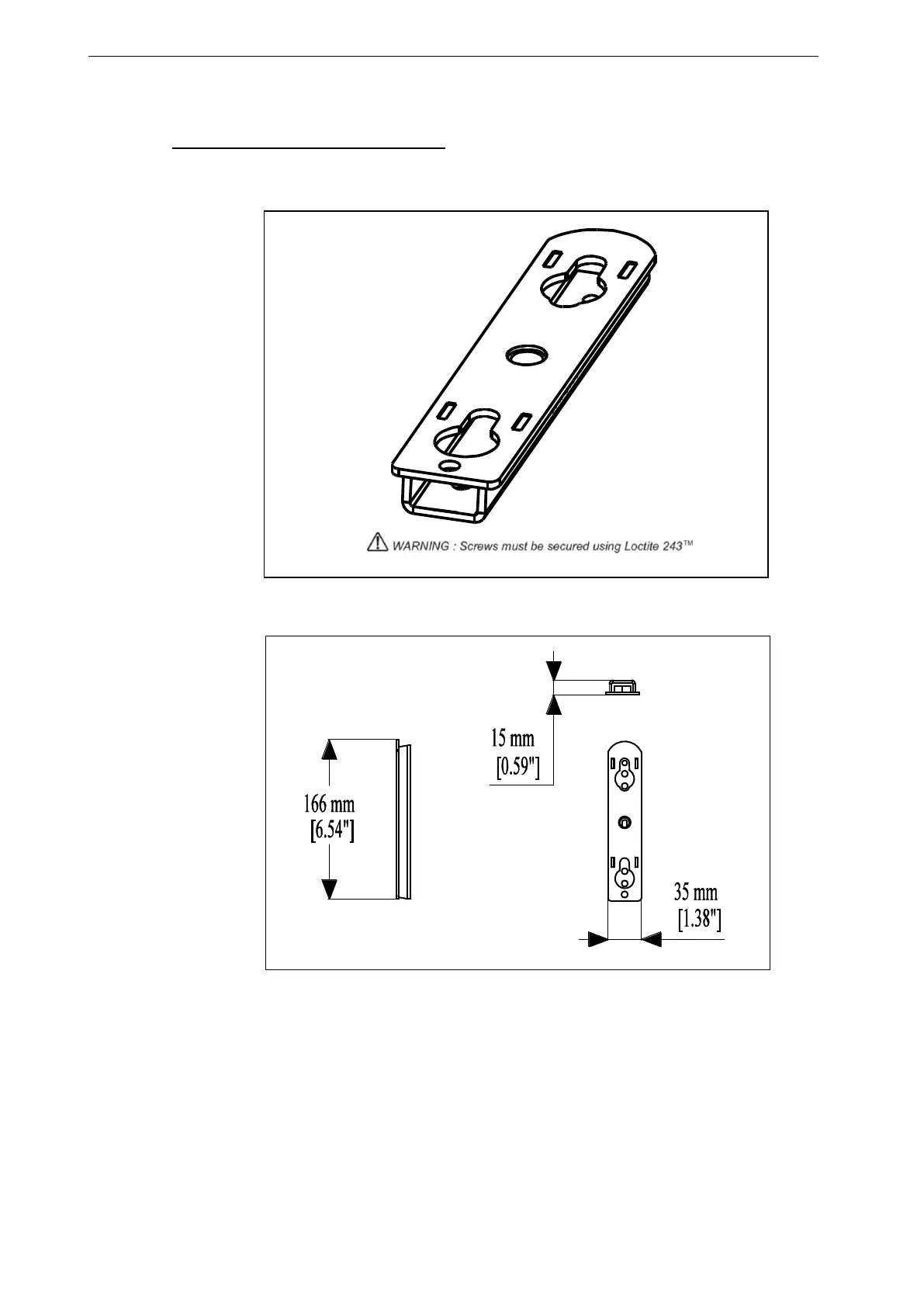

9.5.7 Flying Adaptor for PS8 (VNT-ADPT)

(mandatory for use in conjunction with VNT-SSBRK8 or VNT-TTC)

Parts

Dimensions
