Shark HD 500 Series User’s Manual
X-12 , Y
-
12
X0 ,
Y0

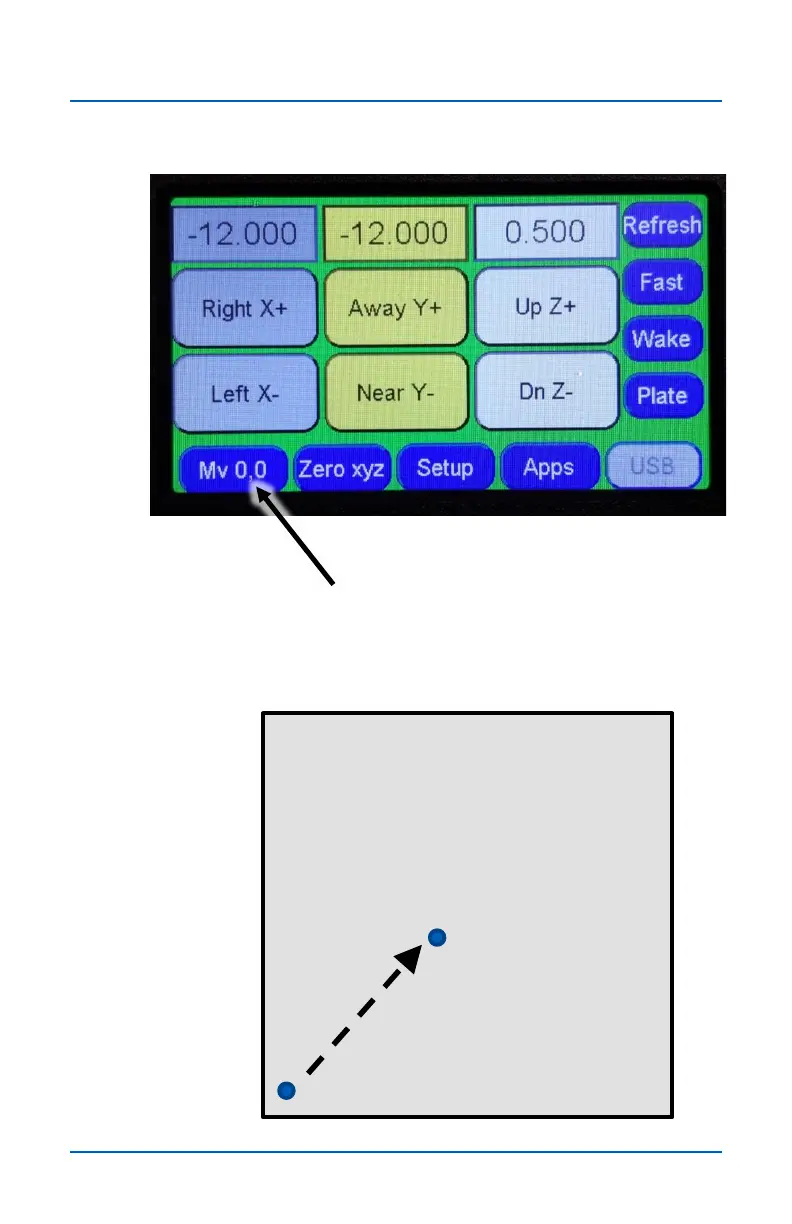

After
the Offset
calibration completes,
press
Mv 0,0
to move th
e
X-
Y
axes to
the ne
w “project”
zero location (see
below
).
Home X &
Y
Axes (cont.)
XY
Offset option (cont.)
53
55
