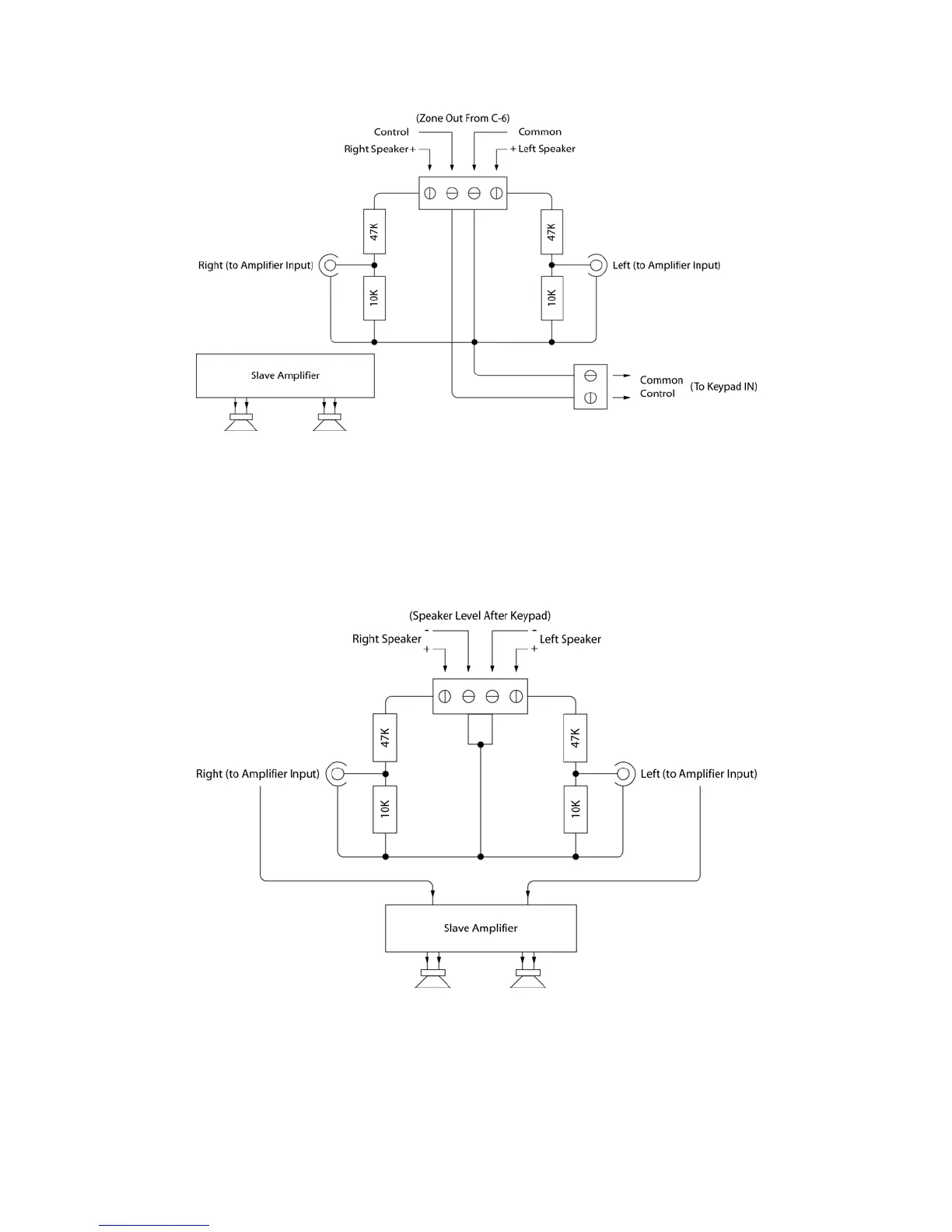

Figure 16. Application 2 Using an External High Power Amplifier
Application 2
This application allows using an external amplifier at the system head end utilizing dedicated
speaker wire to the zone speakers. This application only requires a two conductor wire for the
zone keypad. Speaker connections from the amplifier to the zone speakers are standard
configuration.
Figure 17. Application 3 Using an External High Power Amplifier
Application 3
This application allows using a high power amplifier in a remote zone. The house wiring from the
C-6 Controller to the zone keypad is Phantom Control configuration. The zone keypad speaker
