Part Number 12762 Rev 1.1 | April 30, 2014 TAB MOUNTING DIMENSIONS
Returning a Defective Unit
32 NETWORK CONTROLLER 3E & 6E MOUNTING AND WIRING GUIDE |

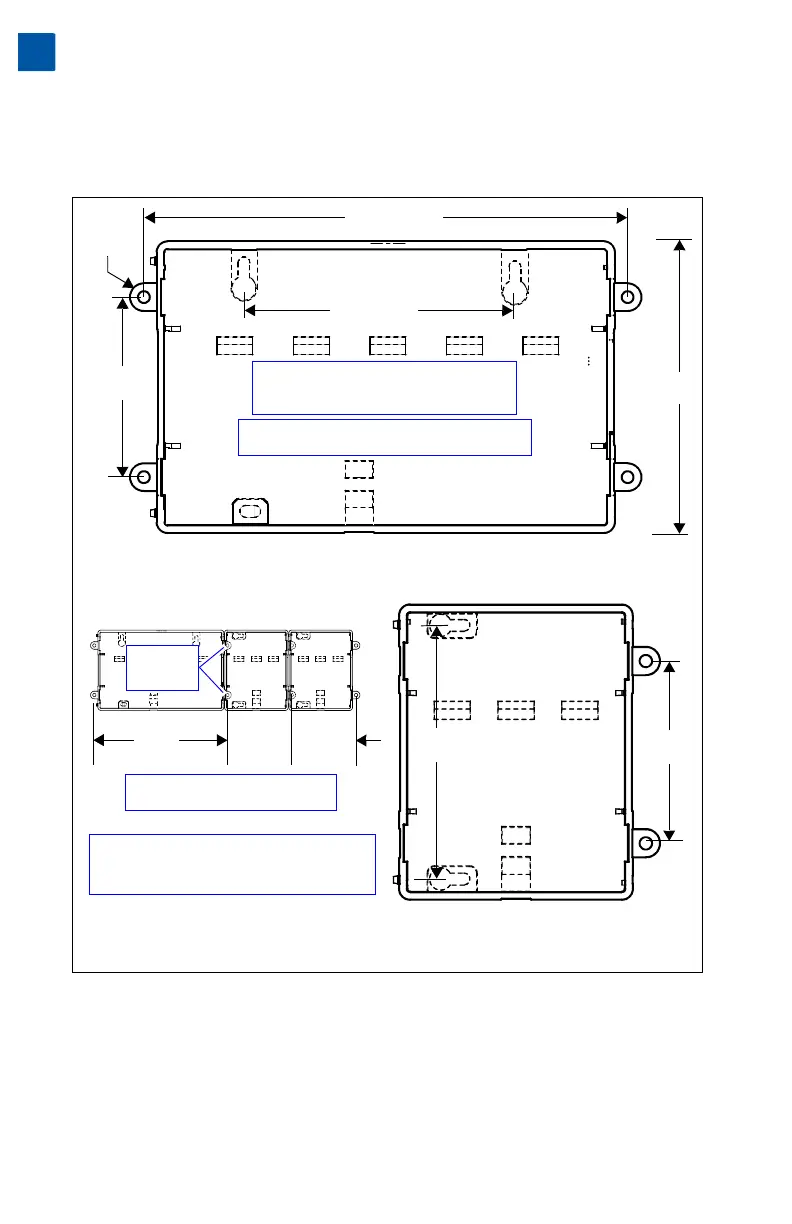

Tab Mounting Dimensions
Measurements are in inches and (mm). Note that DIN mounting is recommended
over tab mounting. See Figure 1 on page 9.
3.75" (95.3)
0.170"
Dia.
(4.32)
6.72" (170.7)
4.0"
(101.6)
2.5"
(63.5)
3.48"
(88.6)
2.5"
(63.5)
6.72"
(170.7)
3.25"
(82.55)
3.25"
(82.55)
JACE-6E
T-IO-16
T-IO-16 or
NPB-PWR
NOTE: Electronic and printed versions of this
document may not show dimensions to scale.
Verify all measurements before drilling.
DIN mounting is recommended over tab mounting.
See Figure 1 on page 9.
JACE-3E or JACE-6E
NPB-PWR,
NPB-PWR-UN,
or T-IO-16
Distance between center of tabs
from one unit to another unit.
Tip: If mounting accessory modules, future
removal/replacement of the controller is simplified
if you do not install screws in the “accessory
module side” tabs of the controller (see above).
Accessory
module
side tabs
