Nibe F470 Installer Manual

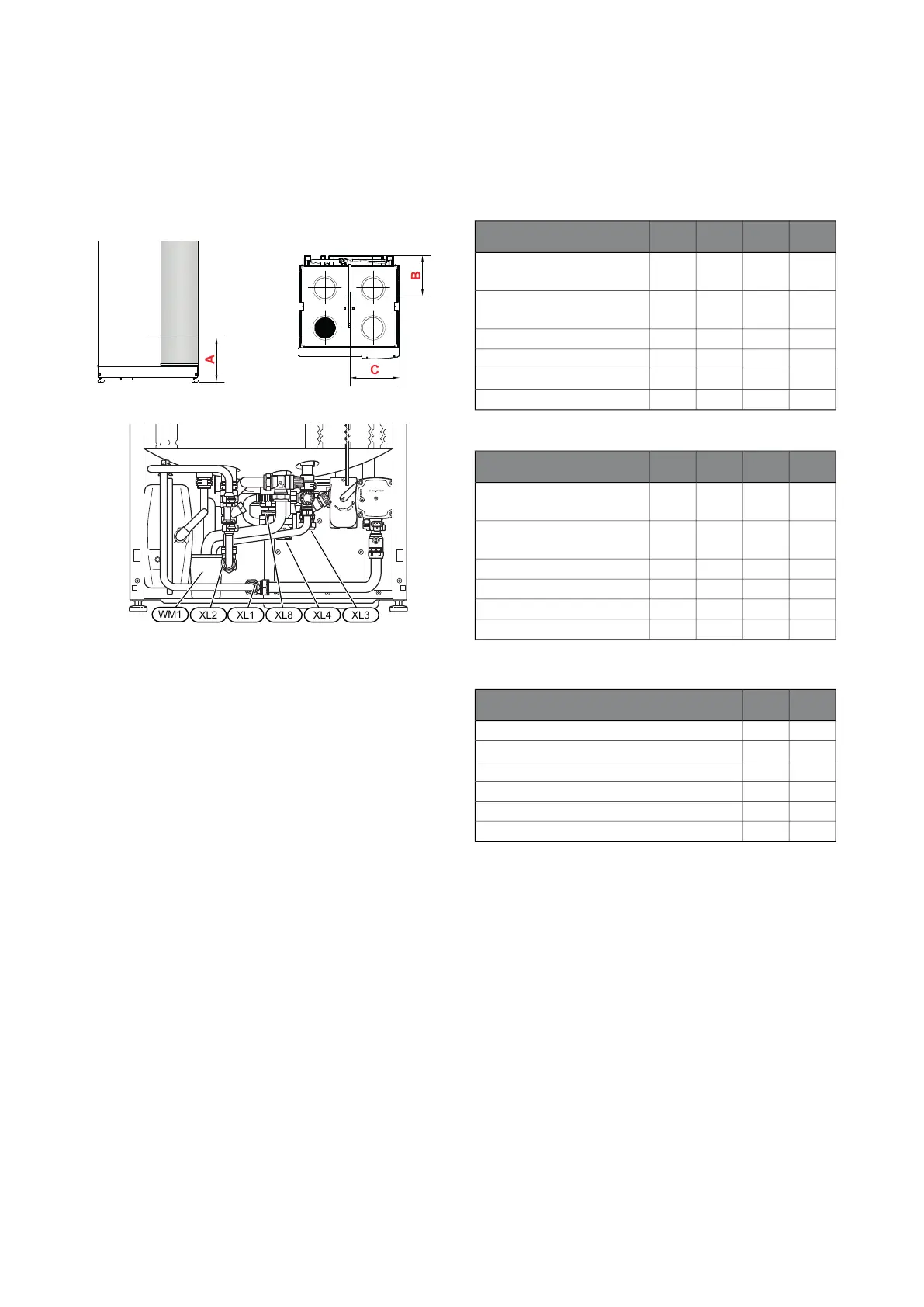

Dimensions and pipe
connections
B
A
C
XL2 XL1 XL4 XL3
WM1
XL8
Setting out dimensions
Copper
CBAConnection
33541550(mm)XL1 Heating medium sup-
ply
385410100(mm)XL2 Heating medium re-
turn
215455200(mm)XL3 Cold water
265405180(mm)XL4 Hot water
300290220(mm)XL8 Docking
43520595(mm)WM1 Overflow cup
Stainless
CBAConnection
33542045(mm)XL1 Heating medium sup-
ply
38041595(mm)XL2 Heating medium re-
turn
215455200(mm)XL3 Cold water
265405180(mm)XL4 Hot water
300290220(mm)XL8 Docking
43520595(mm)WM1 Overflow cup
Pipe dimensions
Connection
22(mm)XL1-XL2 Heating medium ext Ø
22(mm)XL3 Cold water ext Ø
22(mm)XL4 Hot water ext Ø
15(mm)XL5 Hot water circulation ext. Ø
22(mm)XL8 Docking ext. Ø
32(mm)WM2 Overflow water discharge
17Chapter 4 | Pipe and ventilation connectionsNIBE F470

Nibe F470 Specifications

General

Type	Exhaust air heat pump
ERP class heating	A++
Energy Efficiency Class	A++
Integrated Hot Water Tank	180 liters
Refrigerant	R290
Application	Residential
