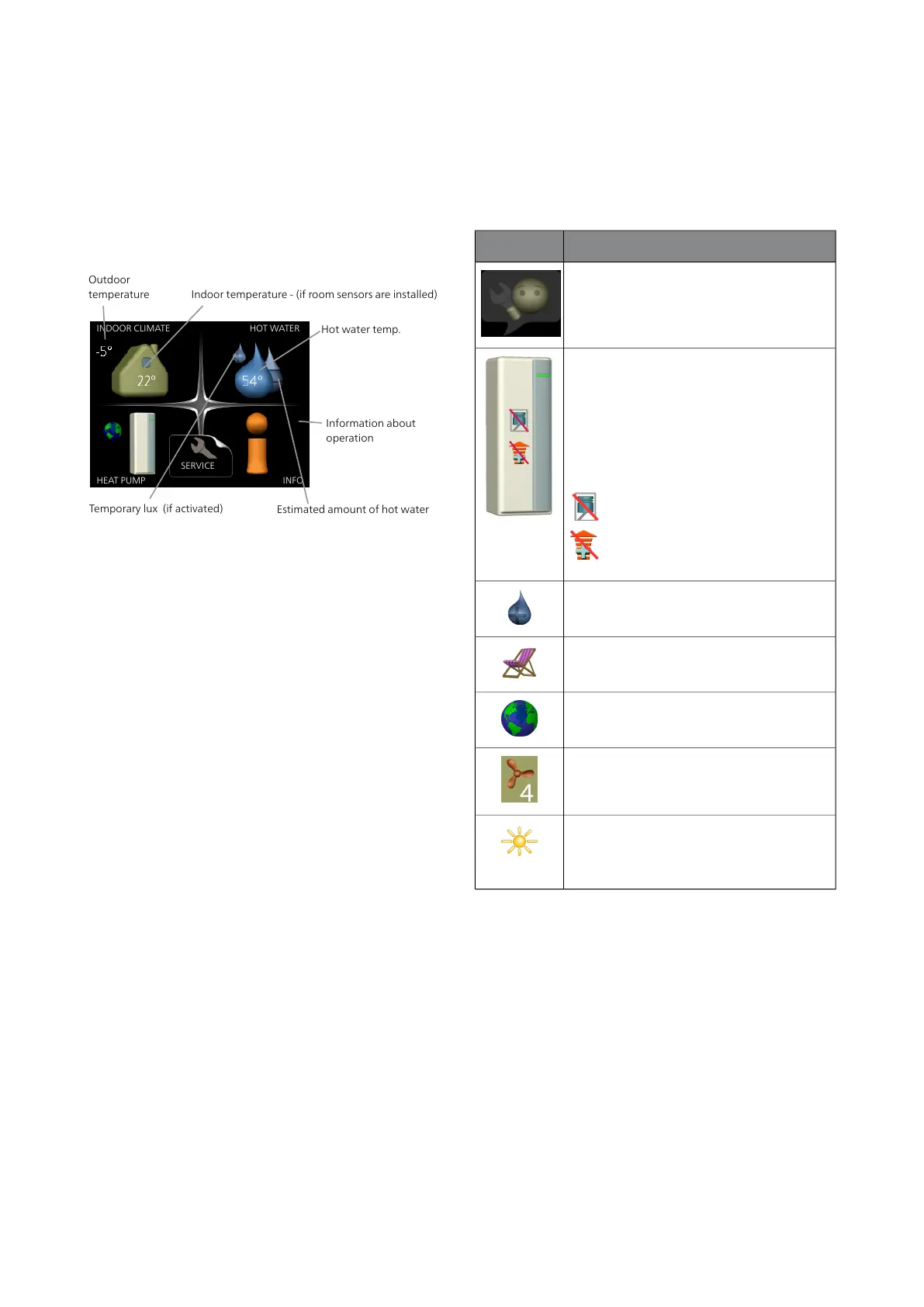

Menu system
When the door to the heat pump is opened, the menu
system’s four main menus are shown in the display as
well as certain basic information.
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
SERVICE
Indoor temperature - (if room sensors are installed)
Hot water temp.
Temporary lux (if activated)
Outdoor
temperature
Estimated amount of hot water
Information about
operation
Menu 1 - INDOOR CLIMATE
Setting and scheduling the indoor climate. See informa-
tion in the help menu or user manual.
Menu 2 - HOT WATER
Setting and scheduling hot water production. See inform-
ation in the help menu or user manual.
Menu 3 - INFO
Display of temperature and other operating information
and access to the alarm log. See information in the help
menu or user manual.
Menu 4 - HEAT PUMP
Setting time, date, language, display, operating mode
etc. See information in the help menu or user manual.
Menu 5 - SERVICE
Advanced settings. These settings are not available to
the end user. The menu is visible when the Back button
is pressed for 7 seconds when you are in the start menu.
See page 45.
Symbols in the display
The following symbols can appear in the display during
operation.
DescriptionSymbol
This symbol appears by the information
sign if there is information in menu 3.1 that
you should note.
These two symbols indicate whether the
compressor or addition is blocked in F470.
These can, for example, be blocked depend-
ing on which operating mode is selected
in menu 4.2, if blocking is scheduled in
menu 4.9.5 or if an alarm has occurred that
blocks one of them.
Blocking the compressor.
Blocking additional heat.
This symbol appears if periodic increase or
lux mode for the hot water is activated.
This symbol indicates whether "holiday
setting" is active in 4.7.
This symbol indicates whether F470 has
contact with NIBE Uplink.
This symbol indicates the actual speed of
the fan if the speed has changed from the
normal setting.
This symbol indicates whether solar heating
is active.
Accessory needed.
NIBE F470Chapter 7 | Control - Introduction40
