INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
temperature
INDOOR CLIMATE 1
ventilation
scheduling
advanced
off
normal

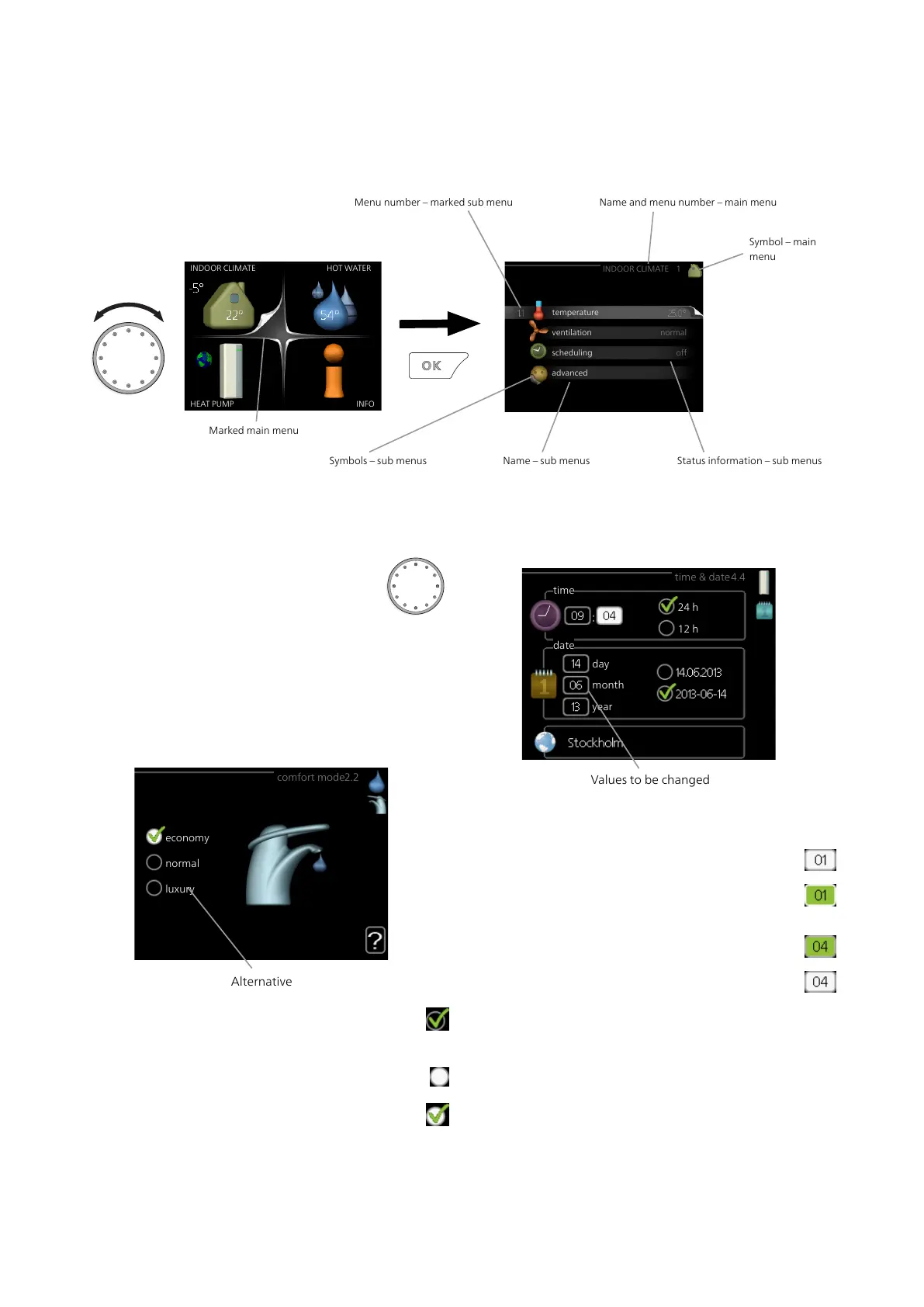

Marked main menu
Menu number – marked sub menu Name and menu number – main menu
Symbol – main
menu
Status information – sub menus
Name – sub menusSymbols – sub menus
Operation
To move the cursor, turn the control knob to
the left or the right. The marked position is
white and/or has a turned up tab.
Selecting menu
To advance in the menu system select a main menu by
marking it and then pressing the OK button. A new
window then opens with sub menus.
Select one of the sub menus by marking it and then
pressing the OK button.
Selecting options
economy
comfort mode2.2
normal
luxury
In an options menu the current selected option is
indicated by a green tick.
To select another option:
1.
Mark the applicable option. One of the options
is pre-selected (white).
2.
Press the OK button to confirm the selected op-
tion. The selected option has a green tick.
Setting a value
time & date4.4
time
day
year
month
24 h
12 h
date
To set a value:
1.
Mark the value you want to set using the con-
trol knob.
2.
Press the OK button. The background of the
value becomes green, which means that you
have accessed the setting mode.
3.
Turn the control knob to the right to increase
the value and to the left to reduce the value.
4.
Press the OK button to confirm the value you
have set. To change and return to the original
value, press the Back button.
41Chapter 7 | Control - IntroductionNIBE F470
