Nibe F470 Installer Manual

Setting the ventilation
Ventilation must be set according to applicable stand-
ards. The supply air flow is adjusted so that it is 80% of
the exhaust air flow. The settings are made in menus
5.1.5 and 5.1.6.
Even if ventilation is roughly set at installation it is import-
ant that a ventilation adjustment is ordered and permit-
ted.
NOTE
Order a ventilation adjustment to complete the
setting.

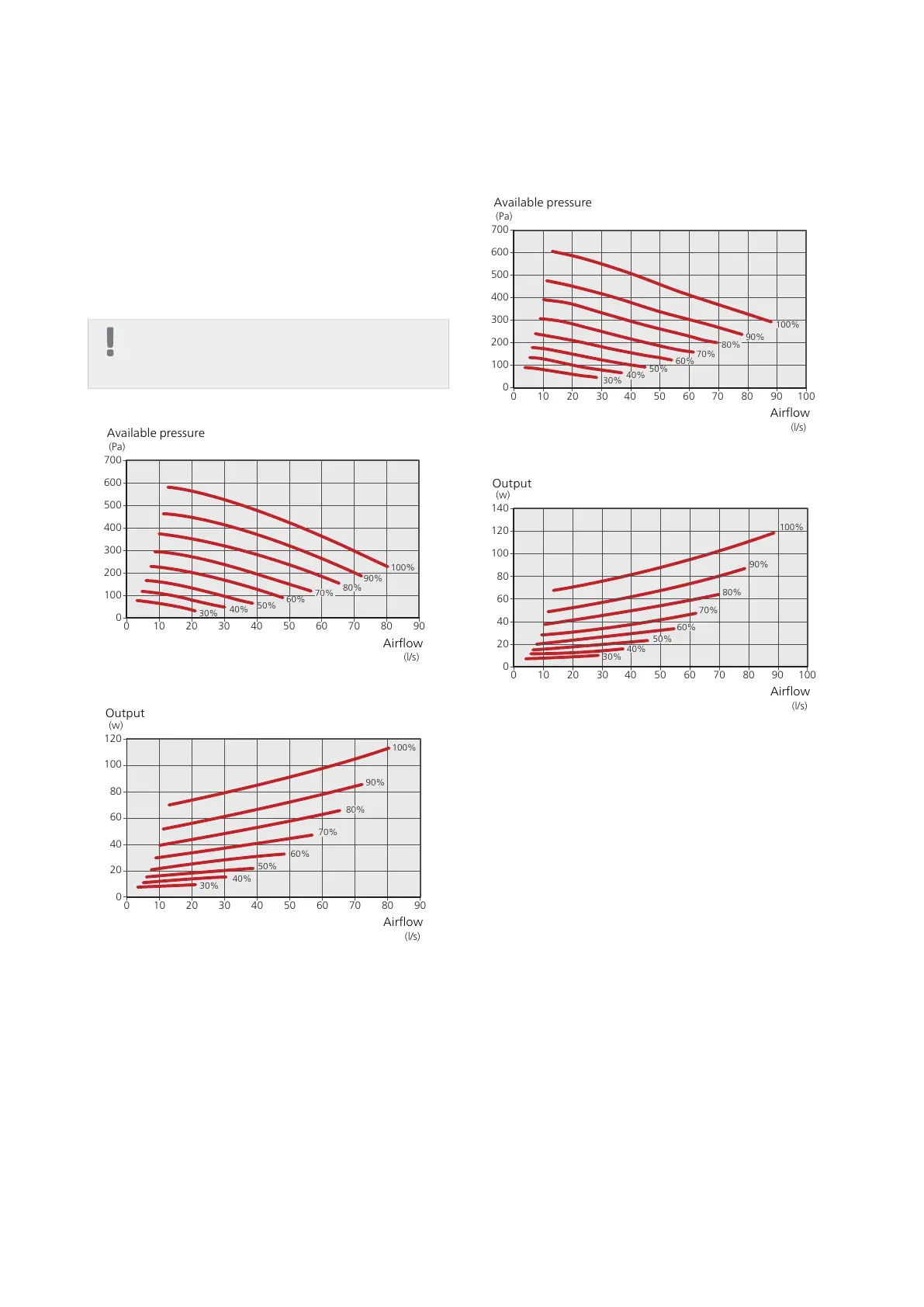

Ventilation capacity, supply air
0
0 10 20 30 40 50 60 70 80 90
100
200
300
400
500
600
700
Tillgängligt tryck
(Pa)
Luftflöde
(l/s)
30%
100%
80%
60%
40%
50%
70%
90%
Available pressure
Airflow
Fan output, supply air
0
0 10 20 30 40 50 60 70 80 90
20
40
60
80
100
120
Effekt
(w)
Luftflöde
(l/s)
30%
100%
80%
60%
40%
90%
70%
50%
Output
Airflow
Ventilation capacity, exhaust air
0
0 10 20 30 40 50 7060 80 90 100
100
200
300
400
500
600
700
Tillgängligt tryck
(Pa)
Luftflöde
(l/s)
30%
100%
90%
60%
40%
50%
70%
80%
Available pressure
Airflow
Fan output, exhaust air
0
0 10 20 30 40 50 60 70 9080 100
20
40
60
80
100
120
140
Effekt
(w)
Luftflöde
(l/s)
30%
100%
80%
60%
40%
50%
70%
90%
Output
Airflow
NIBE F470Chapter 6 | Commissioning and adjusting34

Nibe F470 Specifications

General

Type	Exhaust air heat pump
ERP class heating	A++
Energy Efficiency Class	A++
Integrated Hot Water Tank	180 liters
Refrigerant	R290
Application	Residential
