MENU 7.2.19 - PULSE ENERGY METER
Activated
Alternative: on/off
Set mode
Alternatives: Energy per pulse / Pulses per kWh
Energy per pulse
Setting range: 0 – 10000 Wh
Pulses per kWh
Setting range: 1 – 10000
Up to two electricity meters or energy meters (BE6-BE7)
can be connected to S1256.
Energy per pulse: Here you set the amount of energy to
which each pulse will correspond.
Pulses per kWh: Here, you set the number of pulses per kWh
that are sent to S1256.
TIP
"Pulses per kWh" is set and presented in whole
numbers. If a higher resolution is required, use
"Energy per pulse“.
MENU 7.3 - MULTI-INSTALLATION
In the sub-menus here, you make settings for the heat
pumps that are connected to S1256.
MENU 7.3.1 - CONFIGURE
Multi-installation
Alternative: on/off
System settings
Alternative: Main Unit / Heat Pump 1 – 8
Multi-installation: Here, you specify whether S1256 is part
of a multi-installation (one installation with several connec-
ted heat pumps).
System settings: Here, you specify whether S1256 is the
multi-installation’s main unit. In systems with only one heat
pump, S1256 will be the main unit. If there is another main
unit in the installation, you enter the ID that S1256 will have.
Search installed heat pumps: Here, you can search for, ac-
tivate or deactivate connected heat pumps.
Caution
In multi-installations, each heat pump must have
a unique ID. You enter this for each heat pump
that is connected to S1256.
MENU 7.3.2 - INSTALLED HEAT PUMPS
Here, you select the settings that you want to make for each
heat pump.
MENU 7.3.3 - NAME HEAT PUMPS
Here, you name the heat pumps that are connected to S1256.
MENU 7.3.4 - DOCKING
Here you set how your system is docked in respect of pipes,
in relation to heating the property and any accessories.
TIP
Examples of docking alternatives can be found at
nibe.eu.
This menu has a docking memory which means that the
control system remembers how a particular reversing valve
is docked and automatically enters the correct docking the
next time you use the same reversing valve.

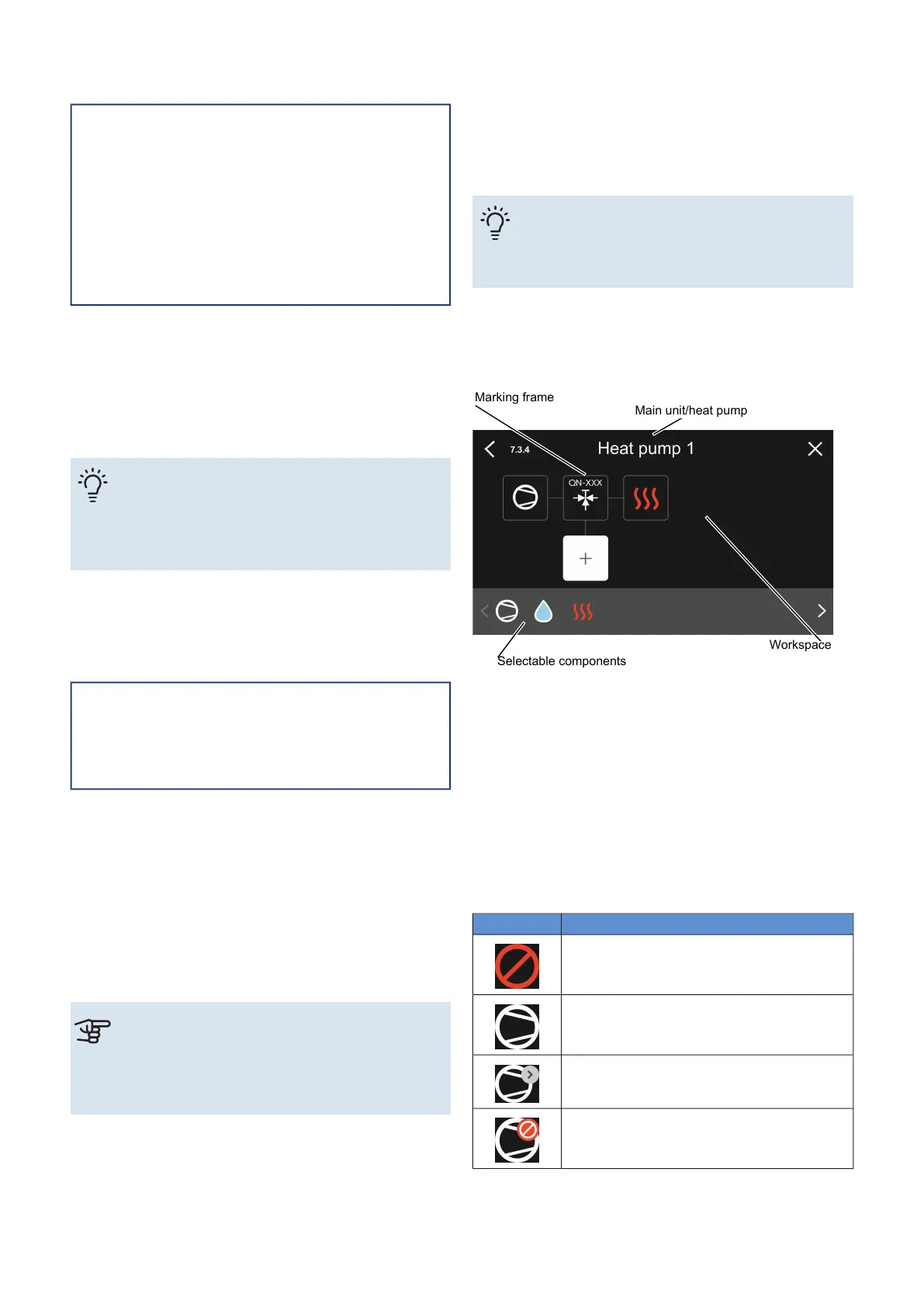

Workspace
Marking frame
Main unit/heat pump
Selectable components
Heat pump 1
Main unit/heat pump: Here, you select the heat pump for
which the docking setting is to be made (if the heat pump
is solitary in the system, only the main unit is shown).
Workspace for docking: The system docking is drawn here.
Compressor: Select here if the compressor in the heat pump
is blocked (factory setting), externally controlled via a select-
able input or standard (docked to hot water charging and
heating the building, for example).
Marking frame: Press the marking frame you want to change.
Select one of the selectable components.
DescriptionSymbol
Blocked
Compressor (standard)
Compressor (externally controlled)
Compressor (blocked)
