15 - ACTUATOR WIRING
816 limit switch and smart sensor wiring
Connect the Nice 816 actuator cable to the 5-pin connector
as shown below. These connections enable the Nice 816 limit
switch and smart sensor inputs into the gate controller.
Nice actuator motor wiring
Connect the Nice 816 actuator motor leads to the 3-pin
connector as shown below.
Note: If the gate moves in the opposite direction from
what is expected, reverse the actuator wiring from what is
shown. (Red to Pin 1, Black to Pin 3).
Install the 5 and 3-pin connector into the connection labeled
“Motor 1” on the controller. Install the 5 and 3-pin and
connector into the connection labeled “Motor 2” for a dual
leaf swing gate installation. For dual actuators, the actuator
with the shorter cable must plug into Motor 1 connections.
816 limit switch and smart sensor wiring
Connect the Nice 816 actuator cable to the 5-pin connector
as shown below. These connections enable the Nice 816 limit
switch and smart sensor inputs into the gate controller.
Nice actuator motor wiring
Connect the Nice 816 actuator motor leads to the 3-pin
connector as shown below.
Note: If the gate moves in the opposite direction from what
is expected, reverse the actuator wiring from what is shown.
(Red to Pin 1, Black to Pin 3).
Install the 5 and 3-pin connector into the connection labeled
“Motor 1” on the controller. Install the 5 and 3-pin and
connector into the connection labeled “Motor 2” for a dual leaf
swing gate installation. For dual actuators, the actuator with the
shorter cable must plug into Motor 1 connections.

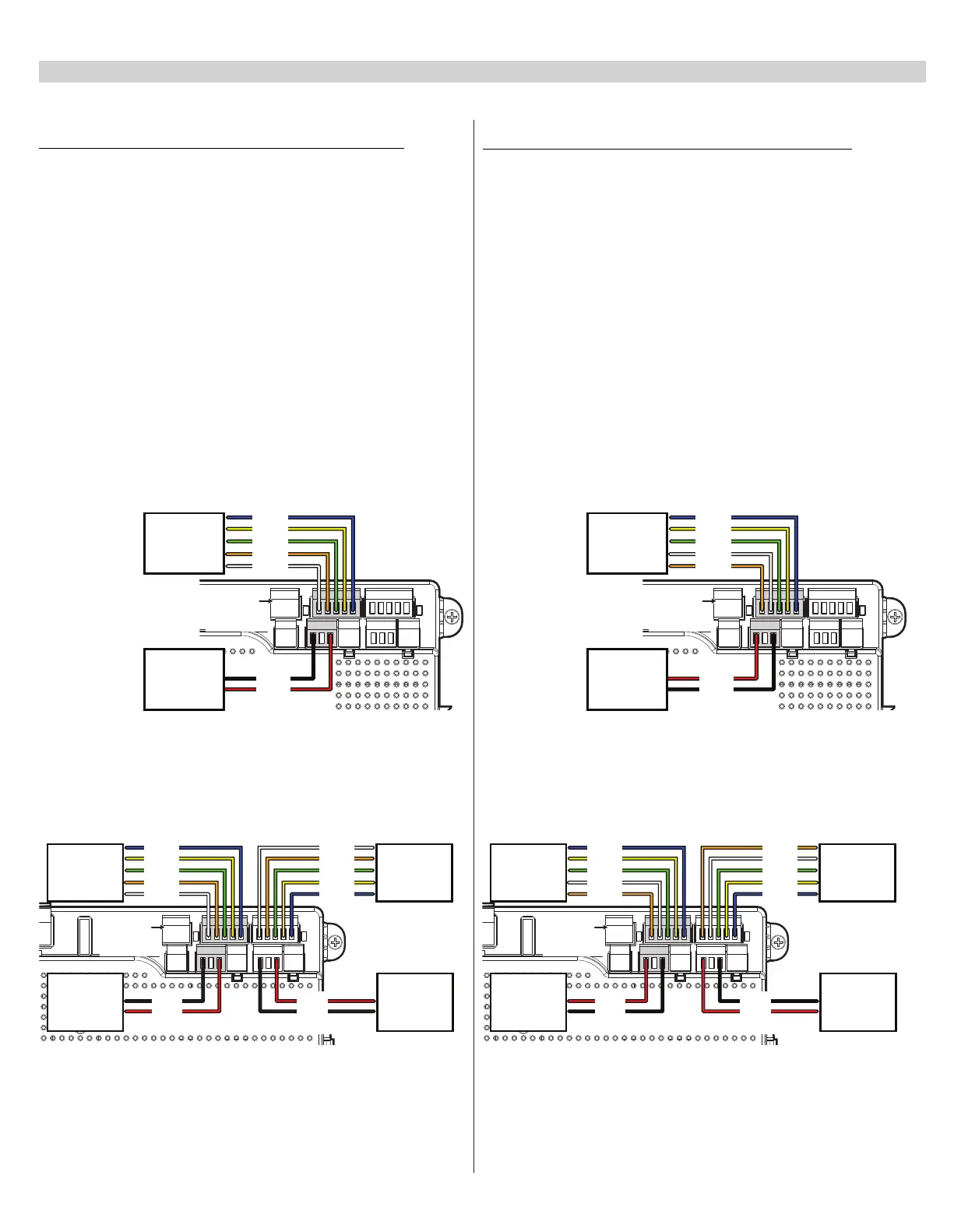

15.1.2 - 816 ACTUATOR WIRING (PUSH TO OPEN)
15.1.1 - 816 ACTUATOR WIRING (PULL TO OPEN)
15.1 - 1050 Control Board Wiring (Single and Dual Gate Application)
GREEN
YELLOW
WHITE
ORANGE
BLUE
DO NOT USE
BLACK
RED
MOTOR 1
816 ACTUATOR SINGLE MOTOR - PULL TO OPEN
WHITE: Extend Limit
ORANGE: Retract Limit
GREEN: Limit Common
YELLOW: Encoder Signal
BLUE: Encoder Power
816 ACTUATOR
(with encoder)
816 ACTUATOR
MOTOR LEADS
GREEN
YELLOW
ORANGE
WHITE
BLUE
DO NOT USE
RED
BLACK
MOTOR 1
816 ACTUATOR SINGLE MOTOR - PUSH TO OPEN
WHITE: Extend Limit
ORANGE: Retract Limit
GREEN: Limit Common
YELLOW: Encoder Signal
BLUE: Encoder Power
816 ACTUATOR
(with encoder)
816 ACTUATOR
MOTOR LEADS
WHITE: Extend Limit
ORANGE: Retract Limit
GREEN: Limit Common
YELLOW: Encoder Signal
BLUE: Encoder Power
MOTOR 1 MOTOR 2
GREEN
YELLOW
WHITE
ORANGE
BLUE
GREEN
ORANGE
WHITE
YELLOW
BLUE
DO NOT USE
816 ACTUATOR DUAL MOTOR - PULL TO OPEN
BLACK
RED
BLACK
RED
816 ACTUATOR
(with encoder)
816 ACTUATOR
(with encoder)
816 ACTUATOR
MOTOR LEADS
816 ACTUATOR
MOTOR LEADS
WHITE: Extend Limit
ORANGE: Retract Limit
GREEN: Limit Common
YELLOW: Encoder Signal
BLUE: Encoder Power
MOTOR 1 MOTOR 2
GREEN
YELLOW
BLUE
WHITE
BLUE
GREEN
WHITE
ORANGE
YELLOW
BLUE
DO NOT USE
816 ACTUATOR DUAL MOTOR - PUSH TO OPEN
RED
BLACK
RED
BLACK
816 ACTUATOR
(with encoder)
816 ACTUATOR
(with encoder)
816 ACTUATOR
MOTOR LEADS
816 ACTUATOR
MOTOR LEADS
