20
17 - LIMIT SWITCH ADJUSTMENT

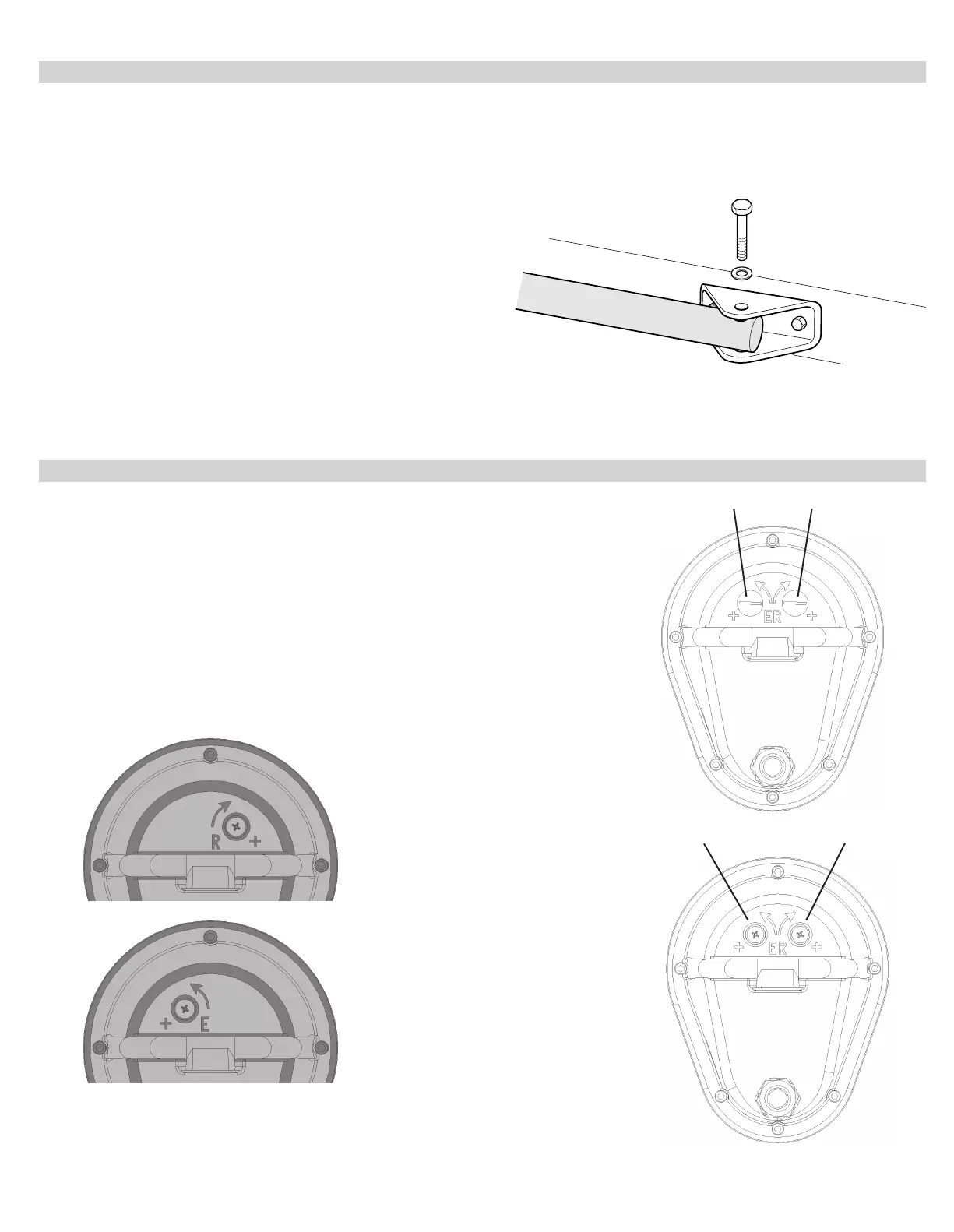

Remove the limit screw end caps as shown in the gure to the right.
NOTE: Do not extend the extension tube too far or you will risk unscrewing the tube
from the main drive screw. The maximum extended length of the actuator is 66"
(hole to hole).
EXTEND more: Turn the limit screw counterclockwise
EXTEND less: Turn the limit screw clockwise
RETRACT more: Turn the limit screw clockwise
RETRACT less: Turn the limit screw counterclockwise
Remove limit switch end caps
Extend limit screw Retract limit screw
RETRACT more:
Turn the limit screw clockwise
RETRACT less:
Turn the limit screw counterclockwise
EXTEND more:
Turn the limit screw counterclockwise
EXTEND less:
Turn the limit screw clockwise
16 - GATE BRACKET MOUNTING
Pull to Open only: Activate push button on the side of the control box and extend the actuator until it stops (leave actuator
retracted for PUSH TO OPEN).
WARNING: Do not let extension tube rotate as it extends. Do not insert ngers or tools in the hole at the end of the extension tube.
Connect the gate bracket to the end of the extension tube with
supplied 1/2” x 3” bolt. With the gate in the closed position, place
the gate bracket on the gate and mark placement or secure with a
clamp. Unbolt and remove the extension tube from the bracket and
weld or bolt the bracket to the gate using 3/8” bolts, lock washers,
and nuts.
Bolt the actuator to the gate bracket as shown.
Tip: Tack weld or C clamp at rst if uncertain about location. Run
the unit through a complete cycle to insure proper operation then
mount permanently.
