17

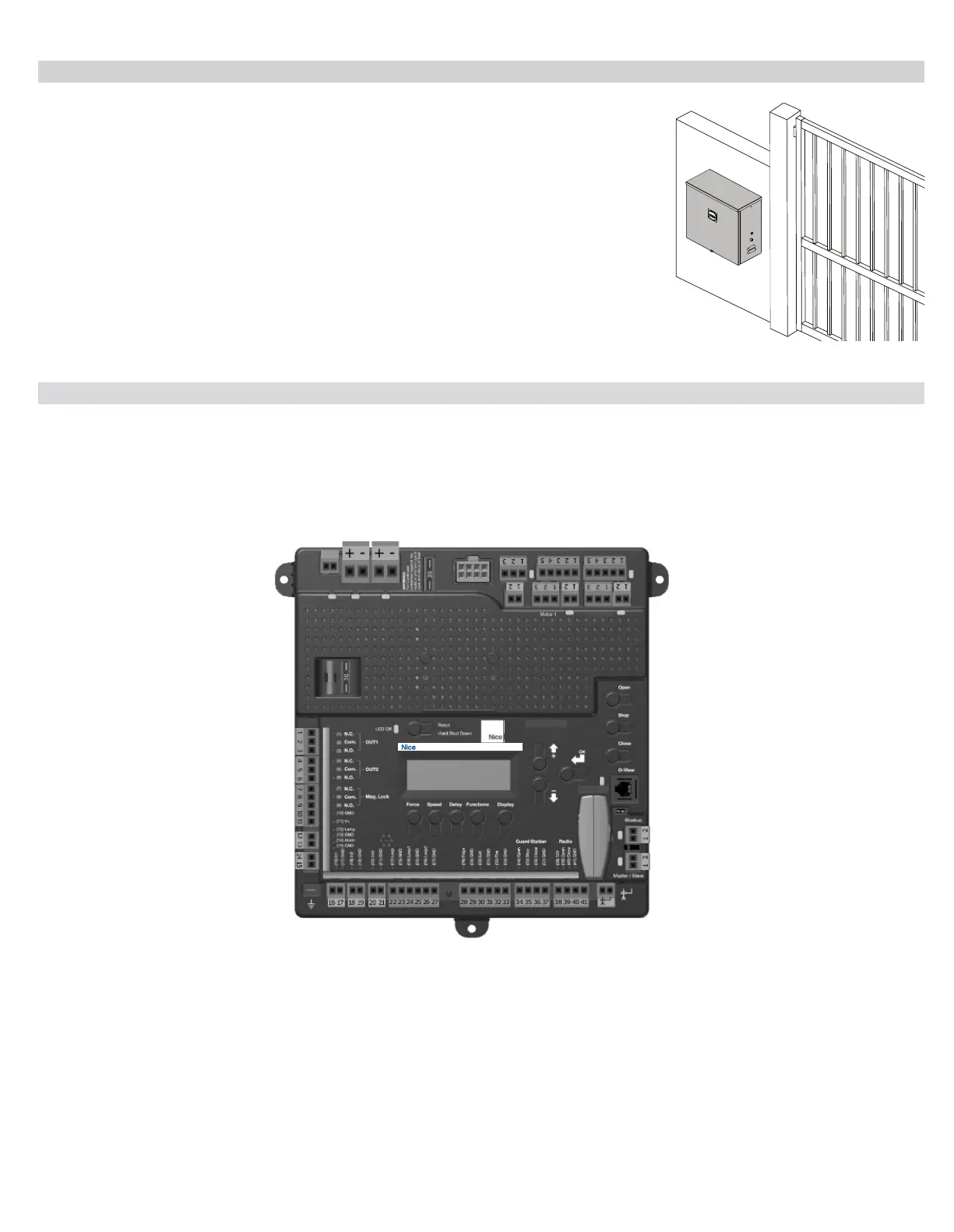

12 - CONTROL BOX MOUNTING
Mount the control box at least 6 feet from any moving part of the gate. There is 12
feet of cord provided for mounting exibility. Use mounting hardware capable of
supporting the weight of the control box with the battery installed.
Do not mount the control box where the person using the push button on side of the
box can come in contact with the gate.
Set battery inside of control box with terminals toward the front (Do not use any
battery with side terminals).
13 - 1050 CIRCUIT BOARD LAYOUT
+
-
MAIN DC POWER 30A FUSE MOTOR
SERIES 1050
MOTOR 2
BATTERYSOLAR P.
OXI/A Receiver
UL325 Compliant Monitored Safety Devices(s) required.
Accessory
Output
Connections
Power Input
Connections
Motor Output
Connections
BlueBus
Connection
Master / Slave
Connection
Accessory Input Connections
Earth Ground
