19 - LEARNING MODE
Nice has taken great care to simplify the installation, operation and safety of this device and to ensure longevity and reliability of the
unit over time. The learning procedure consists of the following steps shown below:
NOTE: The control board is already in the “LEARNING MODE” when shipped.
If the board is not in “LEARN MODE", press:
FUNCTION OK SWING OK LIGHT OK
AVERAGE
HEAVY
You are in LEARN MODE if "ENTER" is ashing.
1. Test the motor direction by pressing and holding CLOSE. If the gate instead OPENS swap the RED and BLACK motor
leads and retest to verify correct operation. Set limits according to the operators installation manual. Limits and motor
direction MUST be set prior to learning the board!
2. Press and hold the OPEN or CLOSE button on the gate controller until the gate is 50% open.
3. Press OK to allow the control board to scan for the required monitored entrapment devices. If they are not present, "BLUEBUS
ERROR" will be displayed and start the learning sequence. The gate will open partially then stop. This is being done, so that the
control board can sense the type and operational condition of the drive motor. The gate will then run to the close limit (one leaf
at a time in case of dual application: Motor2 closes rst then Motor1 follows), so that it can properly sense the close limit switch.
The gate will then fully open to test the open limit switch then fully close at high speed. The gate should be fully learned by the
control board at this point.
The gate operator is now programmed for basic usage.
Safety
Shadow
Entrap
Shadow

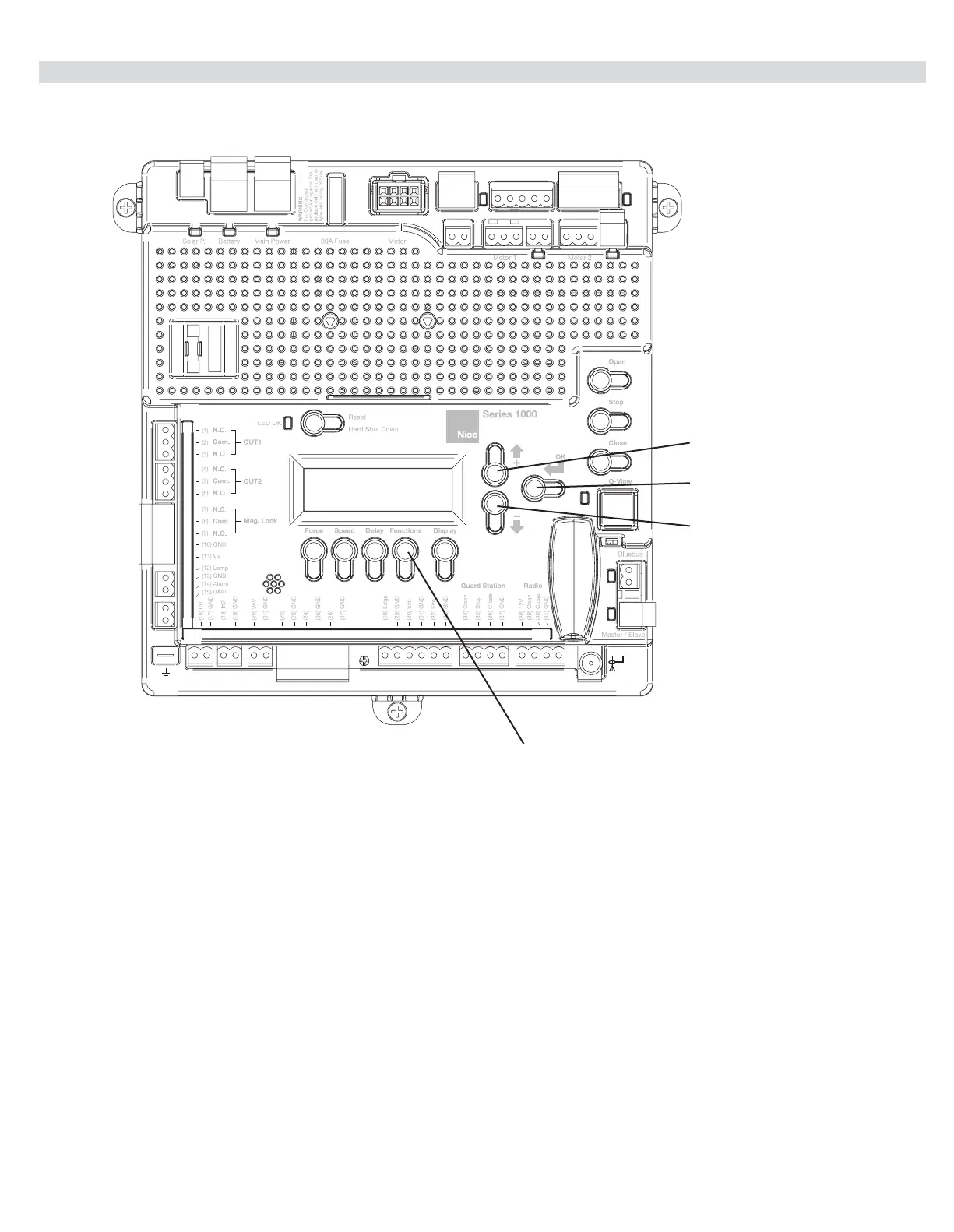

FUNCTION BUTTON
UP SELECTION ARROW
OK BUTTON
DOWN SELECTION ARROW
