Mercury 310 Automated Gate System
Installation and Programming Manual
5252

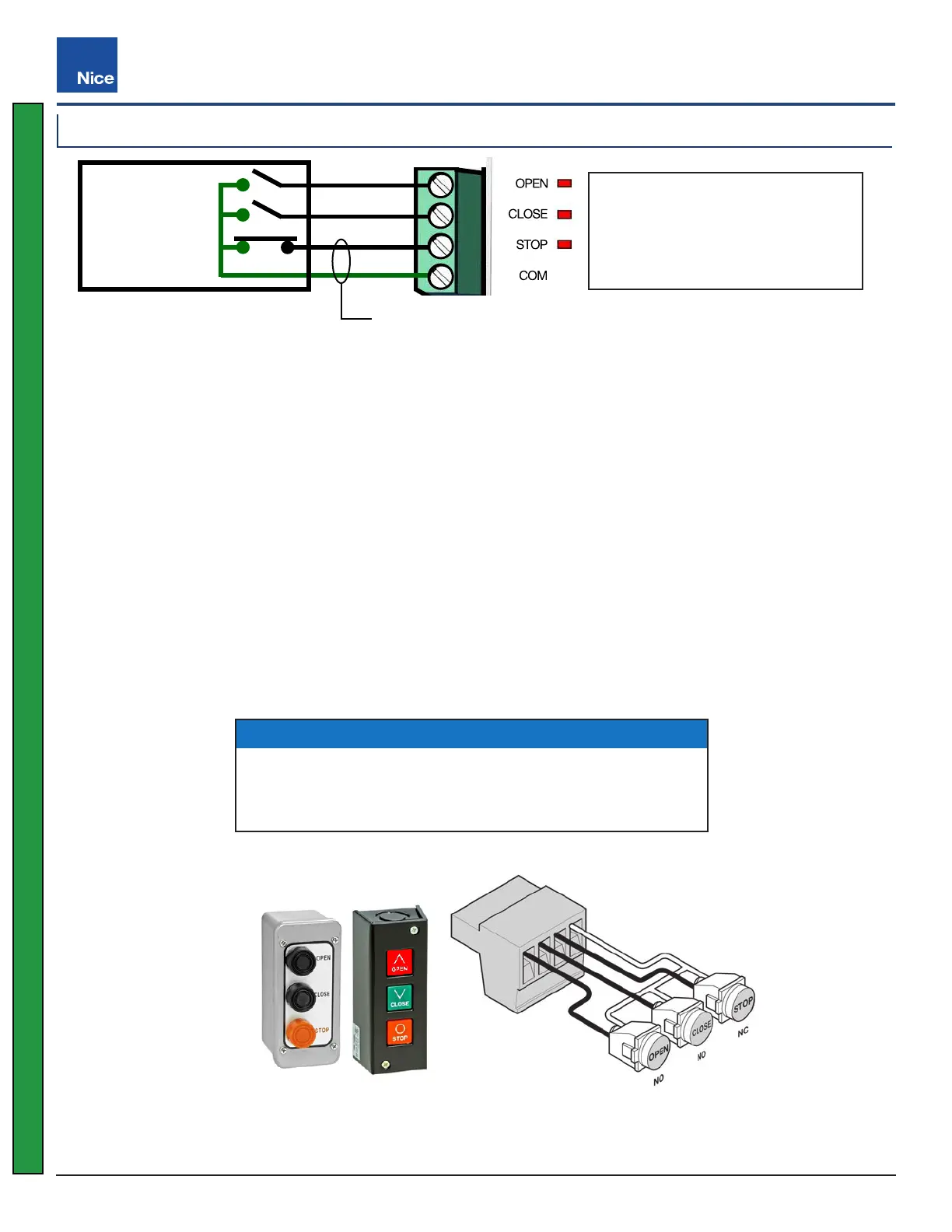

10.1.2 Guard Station Input
OPEN = Open Input (N.O.)
CLOSE = Close Input (N.O.)
STOP = Stop Input (N.C.)
COM = Common (GND)
With the Guard Station contact switches installed, the user can operate the gate by pushing the respective button
for the command that is desired (open, close, or stop).
Gate Open and Close are controlled by Normally Open (NO) momentary switches and Stop is controlled by a
Normally Closed (NC) momentary switch.
¾ OPEN Input: Dry contact input (normally open) for a guard station open switch. Momentarily shorting the
Open input to COM opens the gate(s).
¾ CLOSE Input: Dry contact input (normally open) for a guard station close switch. Momentarily shorting the
Close input to COM (GND) closes the gate(s).
¾ STOP Input: Dry contact input (normally closed) for a guard station stop switch. Momentarily opening the
Stop input stops the opening gate at its current position. While this input is activated, all other inputs are
disabled and are not functional.
(STEP MODE)
REMOTE INPUT
N.O.
+V
+V
+V
+V
N.O.
N.O.
N.O.
N.O.
N.O.
N.C.
COM
COM
COM
COM
N.O.
COM
N.O.
COM
10K Ω
SAFETY
SENSORS
LOOPS
BlueBUS
+12 VDC
+12 VDC
(OFF in Standby)
+12 VDC
GUARD
STATION
FIRE
DEPT.
Control
N.O.
Control
Control
LOOP 1
(Obstruct)
LOOP 2
(Shadow)
LOOP 3
(Exit)
Motor 1
CONNECTIONS
ACTUATOR
Motor 2
SOLAR PANEL or
HIGH CURRENT
DC POWER
BATTERY
12 DC
+
+
_
_
+12 VDC (OFF
in Standby)
ALARM
COM
Guard Station Examples and Wiring
NOTICE
When wiring in a Stop button, rst remove the factory installed
jumper (between Stop and COM). Reinstall a jumper if the
Stop button is removed from the input.
Mercury 310
Factory installed
jumper (STOP/COM)
