10.1.1 Remote/Radio Input
This input is used to connect an auxilliary radio receiver or remote switch and is Normally Open. When it
closes, the input will be active and the associated LED will turn on. The Radio/Remote input will operate in a
“step” mode, like a garage door opener as follows:
¾ 1st activation: Starts the gate moving in the open-direction.
¾ 2nd activation: Stops gate.
¾ 3rd activation: Starts gate moving in the close-direction.
¾ 4th activation: Stops gate.

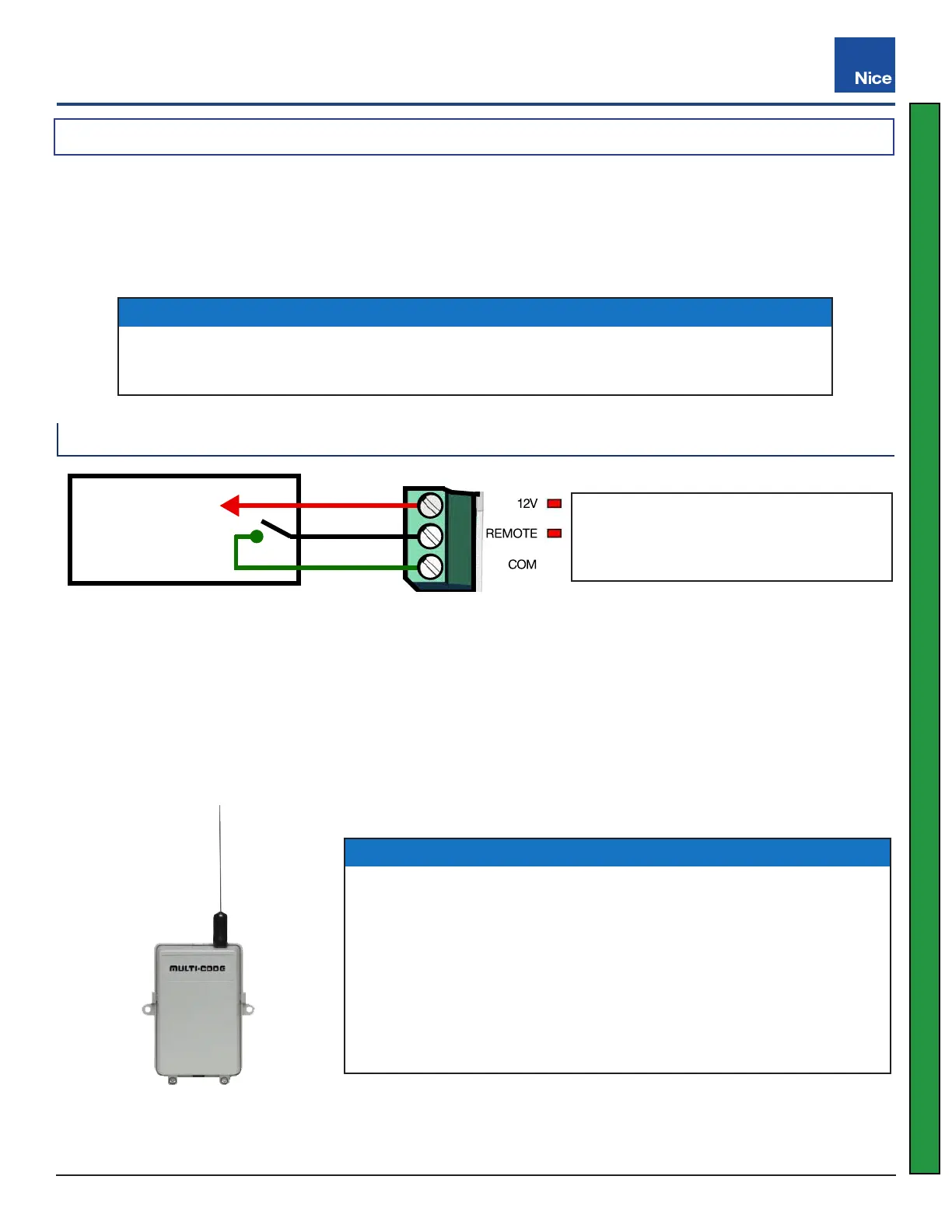

12V = 12VDC Output
REMOTE = Remote/Radio Input (N.O.)
COM = Common (GND)
NOTICE
’ This section also covers emergency access and manual opening of the gate system.
’ Any sensor LED will ash if the sensor is active while an actuator motor is operating.
(STEP MODE)
REMOTE INPUT
N.O.
+V
+V
+V
+V
N.O.
N.O.
N.O.
N.O.
N.O.
N.C.
COM
COM
COM
COM
N.O.
COM
N.O.
COM
10K Ω
SAFETY
SENSORS
LOOPS
BlueBUS
+12 VDC
+12 VDC
(OFF in Standby)
+12 VDC
GUARD
STATION
FIRE
DEPT.
Control
N.O.
Control
Control
LOOP 1
(Obstruct)
LOOP 2
(Shadow)
LOOP 3
(Exit)
Motor 1
CONNECTIONS
ACTUATOR
Motor 2
SOLAR PANEL or
HIGH CURRENT
DC POWER
BATTERY
12 DC
+
+
_
_
+12 VDC
(OFF
in Standby)
ALARM
COM
Example: Nice 318M
2-Ch. Radio Receiver
10.1 CONTROL INPUTS
The Control Inputs, which are used to control some Mercury 310 gate operations, are listed below and
described on the following pages:
’ Remote/Radio Input
’ Guard station Input
’ Fire Input
NOTICE
’ If more than 15 seconds pass between activations, the next
activation will start the gate moving in the open-direction. If the
open limit is active, the gate will close on the rst activation.
’ The radio/remote input will be ignored if there is an active stop
command, an active entrapment sensor, a BlueBus device in the
commanded direction of travel, or Latch mode has been activated.
’ The radio/remote input will have no eect when the operator is in
Hard Shutdown mode (Type A sensor tripped twice).
