Control Board Connections
NOTE: If your control board doesn’t look like any of these diagrams, please call Technical Service at 1-760-
438-7000 for additional support.

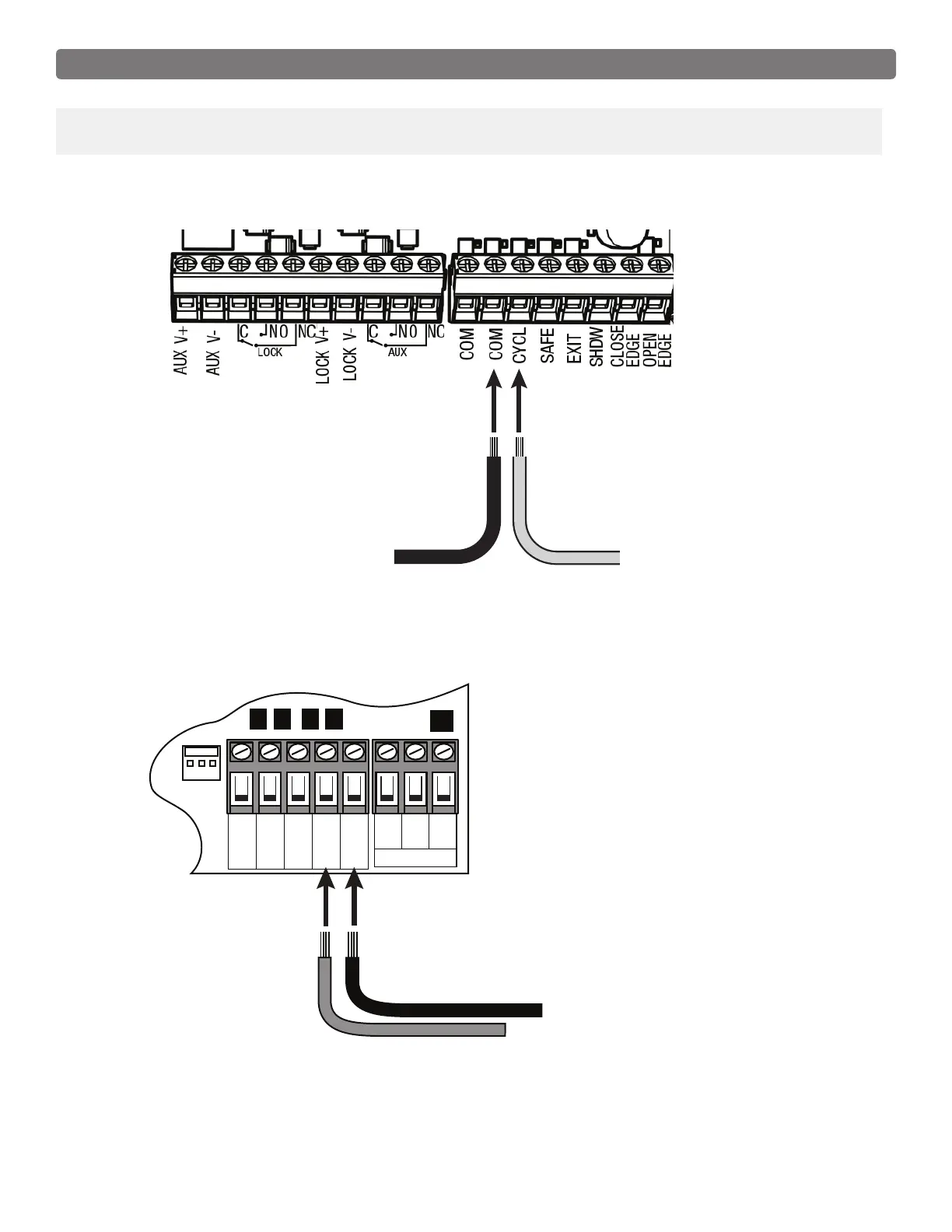

Connect #2 wire from the RELAY
OUTPUT terminals on the keypad to
the COM terminal on the gate opener
control board.
Connect #1 wire from the
RELAY OUTPUT terminals
on the keypad to the
CYCLE
terminal on the gate
opener control board.
#2 #1
RECR
GRN
BLK
RED
EXIT
SAFETY
EDGE
CYCLE
COMMON
LINK
Connect #1 wire from the
RELAY OUTPUT terminals
on the keypad to CYCLE
terminal on the gate opener
control board.
Connect #2 wire from the RELAY
OUTPUT terminals on the keypad
to the COMMMON terminal on the
gate opener control board.
#1
#2
Mighty Mule MM371, MM372, MM571, MM572 and TS571 Control Boards
Mighty Mule 360 Control Board
