Nice MIGHTY MULE MM136 - Mighty Mule 500 & 502 Control Boards; MM560, MM562, MM660, PRO3000 XLS Series, and PRO4000 XLS Series Control Boards

12
RECEIVER
COM COM
CYCLE CLOSE SAFETY EXIT/ OPEN SHADOW LOOP CLOSE EDGE OPEN EDGE
BLKGRN RED

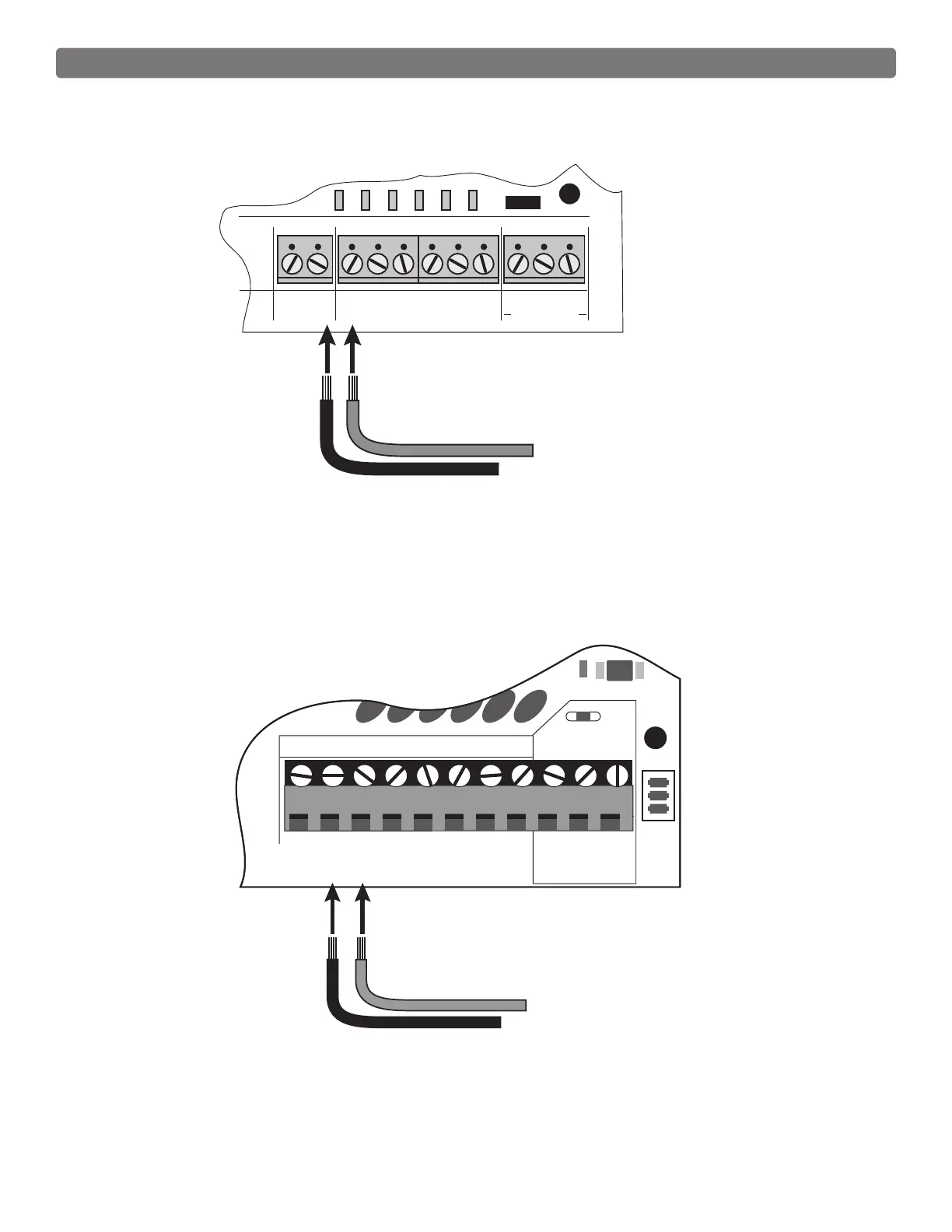

Connect the #1 wire from
RELAY OUTPUT terminals on the
keypad to the CYCLE terminal on
the opener control board.
Connect the #2 wire from
the RELAY OUTPUT
terminals on the keypad to
one of the COMMON
terminals on the opener
control board.
#1
#2
RECEIVER
ALM
RCVR.
COM
GRN
BLK
RED
CYCLE
SAFETY
EXIT
SHADOW
OPEN
EDGE
COM
CONTROL INPUTS
CLOSE
EDGE
Connect #1 wire from
the RELAY OUTPUT terminals on
the keypad to CYCLE terminal on
the gate opener control board.
Connect #2 wire from the
RELAY OUTPUT terminals
on the keypad to the COM
terminal on the gate opener
control board.
#1
#2
Mighty Mule 500 & 502 Control Boards
MM560, MM562, MM660, PRO3000XLS Series, and PRO4000XLS Series
Control Boards
Control Board Connections
