ENGLISH – 13
To commission the automation:
1. compile the automation’s technical le, which must
include the following documents: overall drawing of the
automation, wiring diagram, risk assessment and relative
solutions adopted, the manufacturer’s declaration of
conformity for all devices used and the declaration of
conformity compiled by the installer

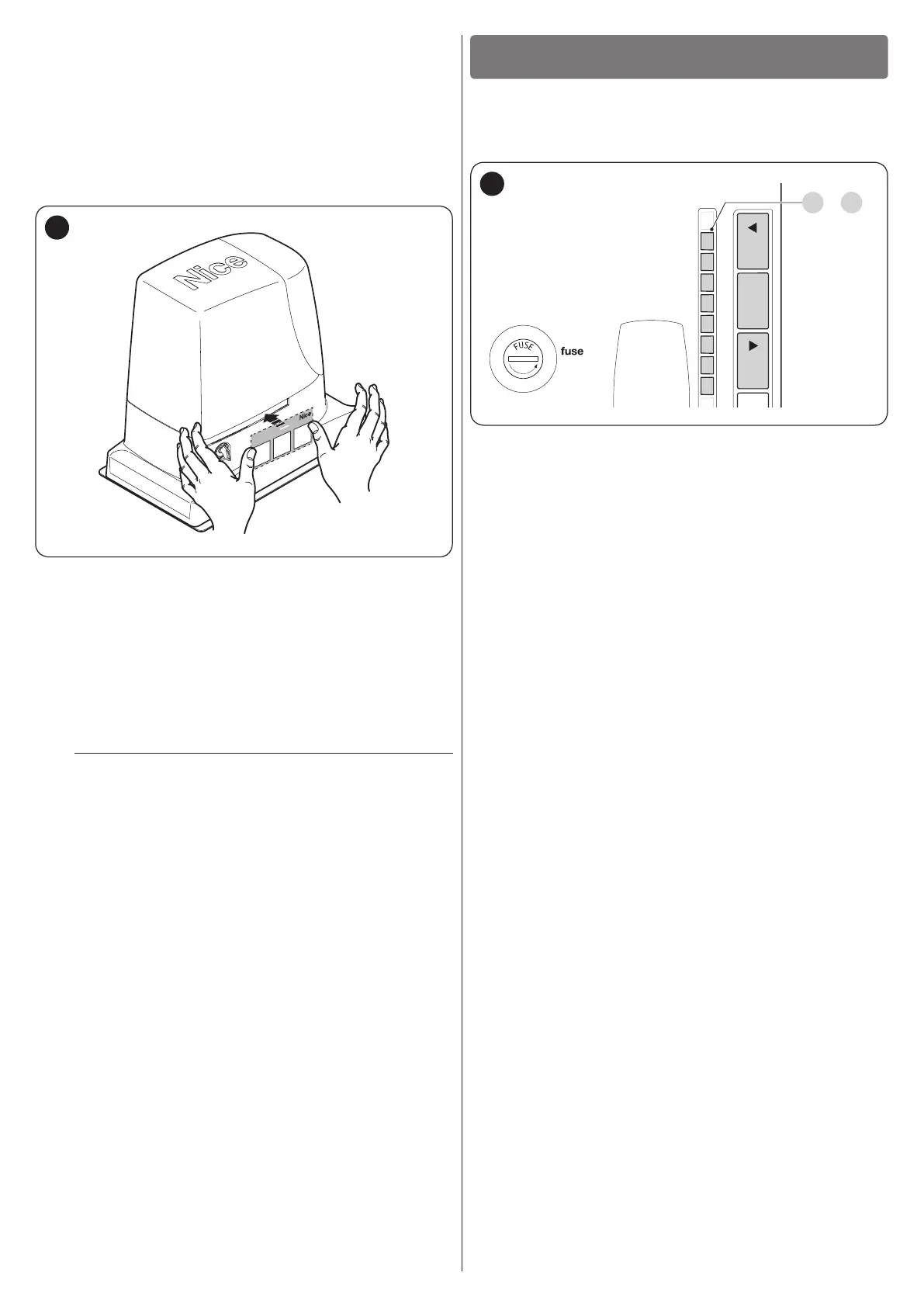

2. afx a permanent label or sign near the gate specifying
the operations for unlocking the gate and manoeuvring it
manually “Figure 24“
Odblok реть
1 2 3
Um
Per
S
zu entr
blocca
i
owanie - Om
r
egeln - P
e
t
a
- Pour déb
e deblok
ra desb
ra
ke
yer
loquear
-
ren
T
-
О
o unblo
тпе
ck
24
3. afx a data plate on the gate specifying at least the
following data: type of automation, name and address of
the manufacturer (responsible for commissioning), serial
number, year of manufacture and CE mark
4. compile the declaration of conformity of the automation
and hand it to the owner of the automation
5. compile the User Manual of the automation and hand it to
the owner of the automation
6. compile and provide the owner with the automation’s
“Maintenance schedule”, containing the maintenance
instructions for all the automation’s devices.
l
For all the above-mentioned documentation, Nice –
through its technical assistance service – provides
the following: pre-completed forms.
PROGRAMMING
7
7 PROGRAMMING
The following 3 buttons are located on the control unit:
f
,
g
and
h
(“Figure 25”) which can be used both
for commanding the control unit during the testing phase and to
programme the available functions.
Receiver
1.6AT
L1L2L3L4L5L6L7L8
OpenStop/SetClose
L1 ... L8
25
The available programmable functions are grouped into two
levels and their operating status is signalled by eight LEDs “L1
... L8” located on the control unit (LED lit = function enabled;
LED off = function disabled).
7.1 USING THE PROGRAMMING BUTTONS
f
Button for commanding the gate opening
Selection button during the programming phase.
g
Button used to stop a manoeuvre
If pressed for more than 5 seconds, it allows for entering
the programming mode.
h
Button for commanding the gate’s closure
Selection button during the programming phase.
