9.1.9 Connecting the Oview programmer

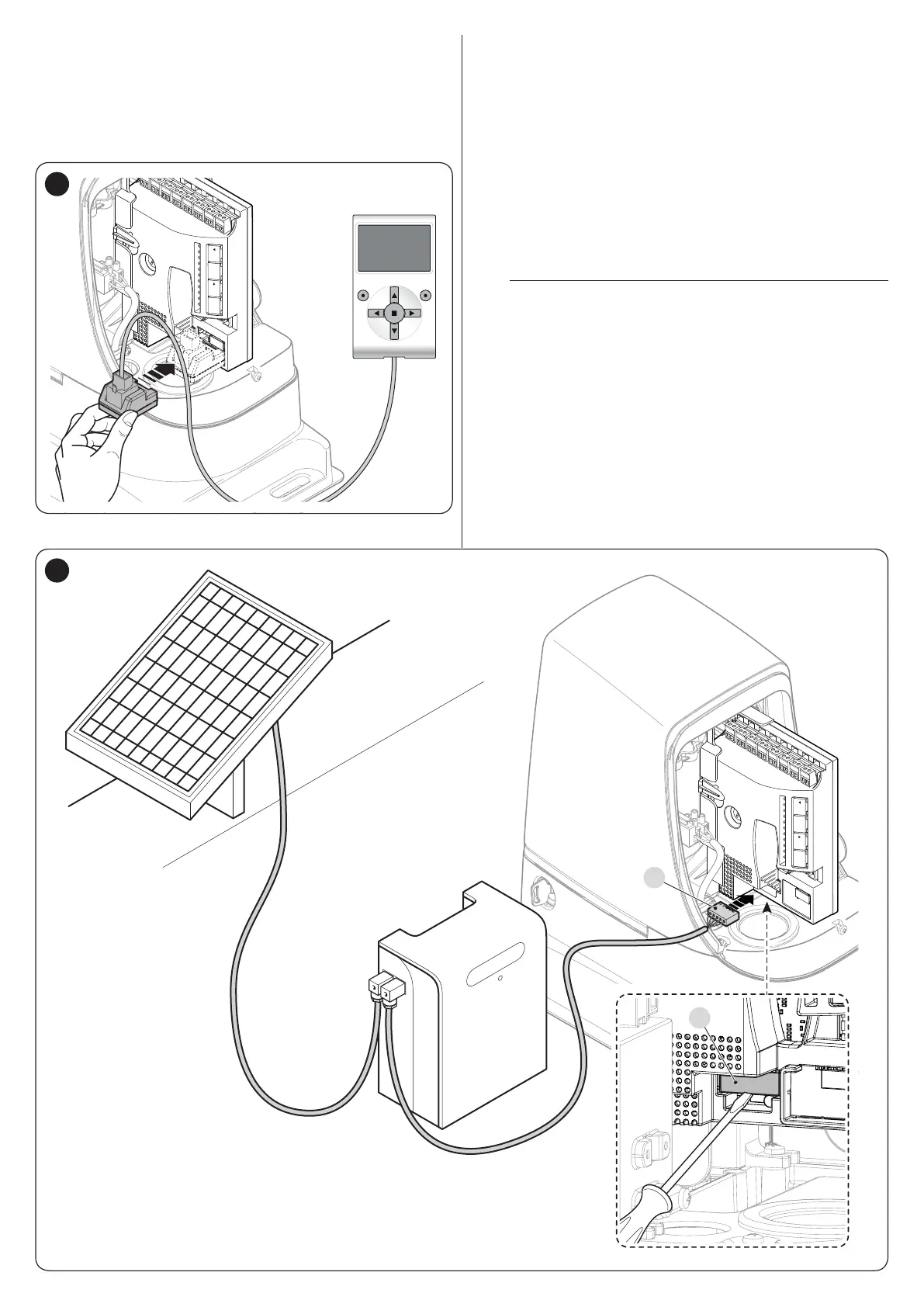

The control unit has a BusT4 connector to which the “Oview”
programmer can be connected, through the IBT4N interface.
The programmer allows for fully and rapidly managing the
installation, maintenance and diagnosis of the entire automation.
To access the connector, proceed as shown in the gure and
connect the connector to its relevant slot.
L8 L7 L 6 L 5 L 4 L 3 L 2 L1
Close
Stop/Set
Open
38
The Oview may be connected to multiple control units
simultaneously (up to 5 with no particular precautions, up to
60 with the warnings stated) and may be left connected to the
control unit during normal operation of the automation. In this
case, it can be used to directly send commands to the control
unit through the specic “user” menu.
It is also possible to update the rmware. If the control unit has
a radio receiver belonging to the OXI family, the “Oview” can
be used to access the transmitter parameters memorised in the
receiver.
For more detailed information, consult the respective instruction
manual and the “Opera system book” manual.
9.1.10 Connecting the Solemyo solar energy system
f
When the automation is powered by the “Solemyo”
system, IT MUST NOT BE POWERED by the
electricity grid at the same time.
To connect the “Solemyo” system:
1. remove the plastic protection (A) with the aid of a
screwdriver
2. insert the relative connector (B) on the control unit.
L8 L7 L 6 L 5 L 4 L 3 L 2 L1
Close
Stop/Set
Open
B
39
