3.4) Electrical connections
Before you proceed to make any electrical connections
make sure that the power supply is disconnected.
1. Open the protection cover in order to access the electronic con-
trol unit of the SPIN. To do this, press the side and rotate as
shown in figure 31.
2. Insert all the connection cables towards the various devices
through the hole, leaving a length of 20÷30 cm longer than nec-
essary. See Table 5 for information regarding the type of cables
and Figure 2 for the connections.

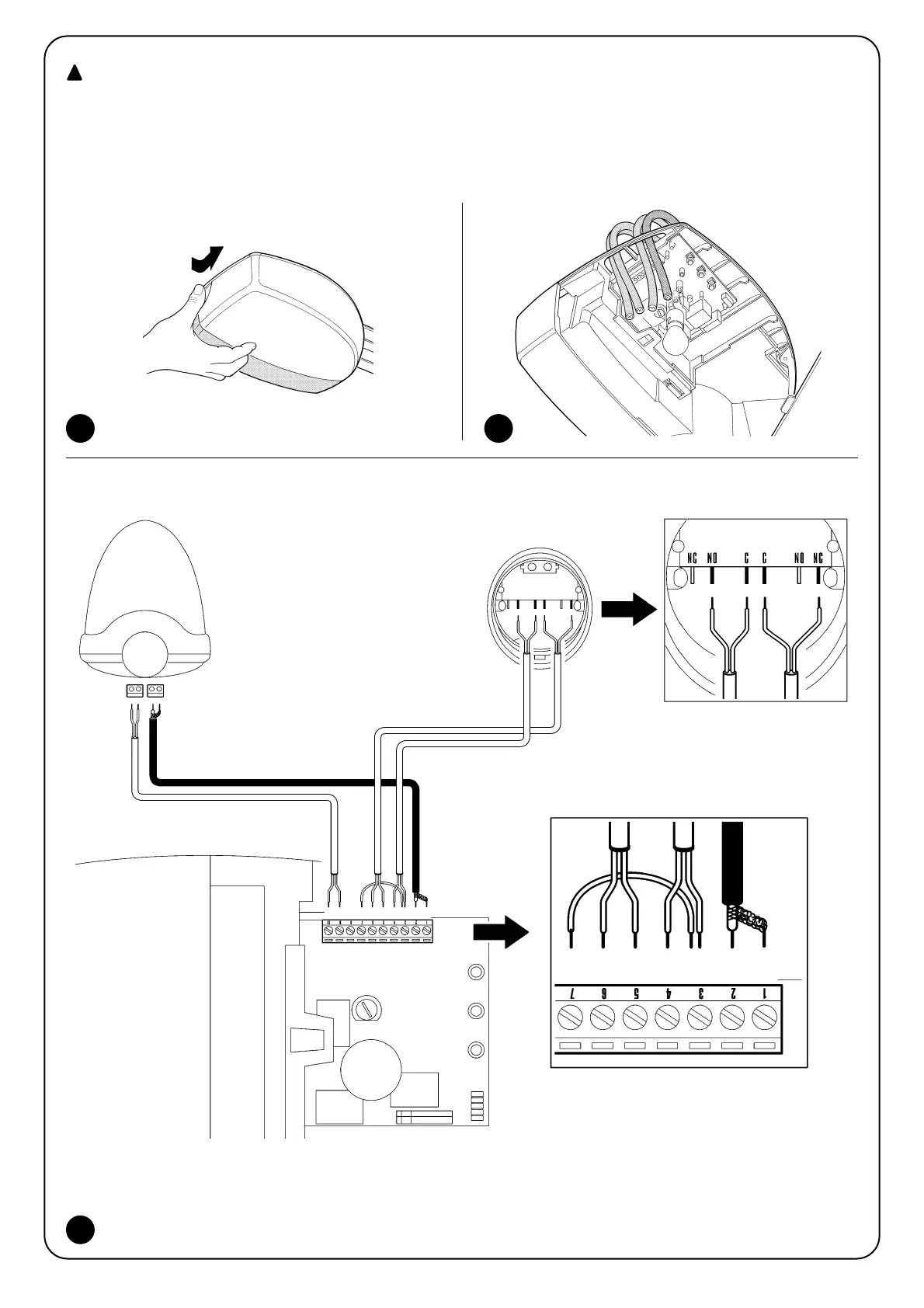

3. Connect up the cables according to the diagram in Figure 33.
