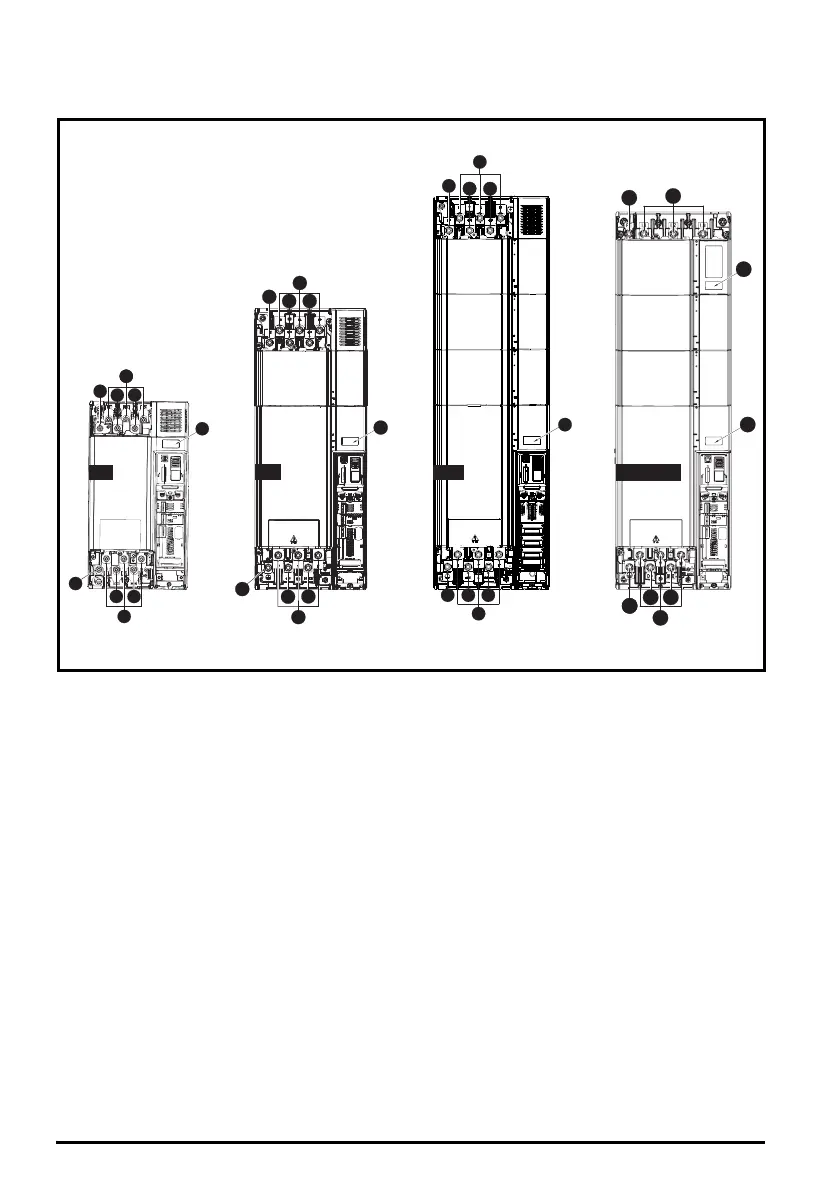

20 Unidrive M/HS Frame 5 to 6 Power Installation Guide
Issue Number: 9
2.5.1 Items supplied with the drive
The drive is supplied with a copy of the Power Installation Guide and a copy of the Control Getting
Started Guide, a safety information booklet, the Certificate of Quality and an accessory kit box
including the items shown in Table 2-6.
Table 2-6 Parts supplied with the drive
* Supplied with Unidrive M700 / M701 / M600 only.
** Supplied with Unidrive M702 only.
Description Size 5 Size 6
Control connectors (1 to 11 and 21 to 31)
x 1* x 1*
Control connectors (1 to 13)
x 1**
Relay connector
x 1
24 V power supply connector
x 1
Grounding bracket
x 1
Surface mounting brackets
x 2 x 2
Grounding clamp
x 1 x 1
Terminal nuts
M6 x 11
Supply and motor connector
x 1 x 1
Finger guard grommets
x 3 x 2
