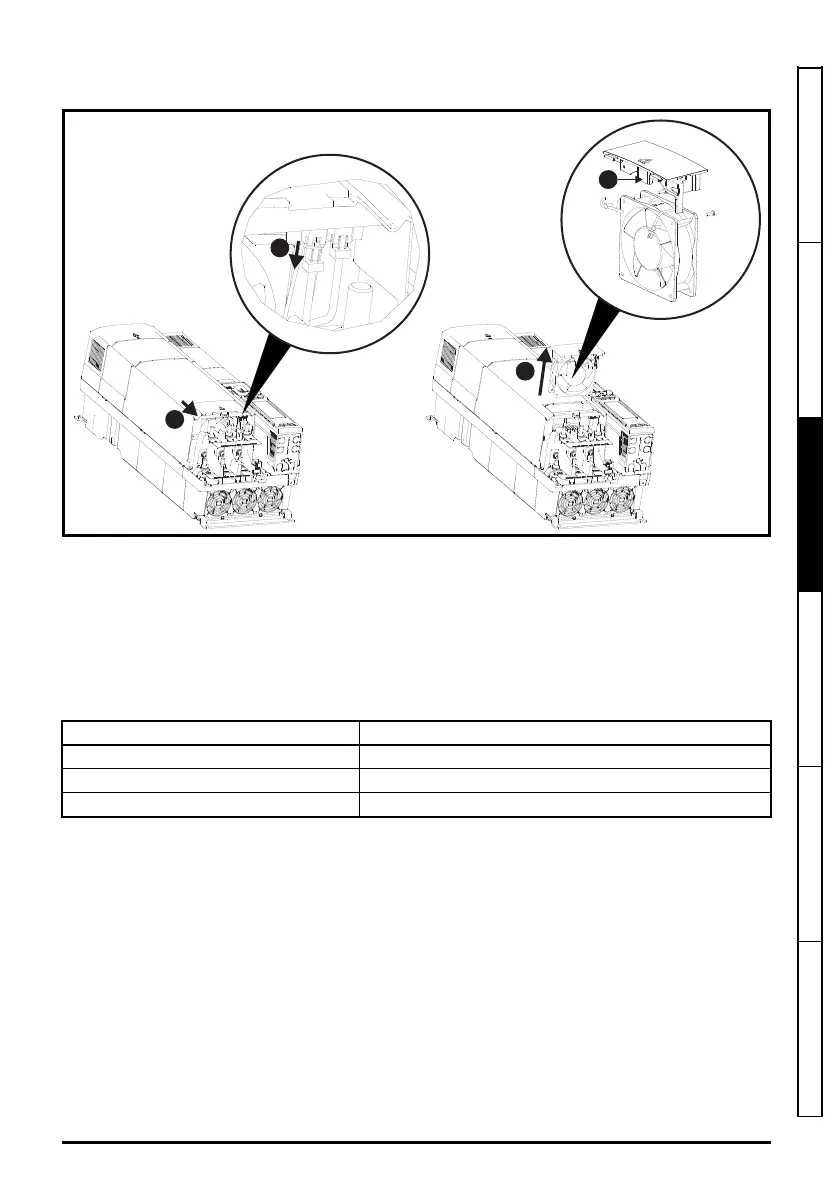

Nidec 5200250 - Supplying the Drive with DC; DC Bus Paralleling

Unidrive M/HS Frame 5 to 6 Power Installation Guide 53
Issue Number: 9
Safety information Product information Mechanical installation
Electrical installation
Technical data UL listing information
Table 4-2 2 % line reactors
4.2.3 Input inductor calculation
To calculate the inductance required (at Y %), use the following equation:
Where:
I = drive rated input current (A)
L = inductance (H)
f = supply frequency (Hz)
V = voltage between lines
4.3 Supplying the drive with DC
All drive sizes have the option to be powered from an external DC power supply. Refer to section
4.1 Power and ground connections on page 49 to identify the location of DC supply connections.
4.4 DC bus paralleling
DC bus paralleling using standard cable / busbars is supported by all frame sizes.
On frame sizes 5 and 6, terminal and enclosure design enables the DC bus of a number of drives to
be connected together using pre-made busbars. The diagram below shows how the busbar links
connect the DC bus of several drives together.
The connecting of the DC bus between several drives is typically used to:
1. Return energy from a drive which is being overhauled by the load to a second motoring drive.
2. Allow the use of one braking resistor to dissipate regenerative energy from several drives.
Drive
model
number
Voltage
rating
Line reactor
designation
CT Part
number
Line
reactor
current
rating
Inductance Weight Length Width Height
V A mH kg mm mm mm
05200250 200 INL2008 4401-0226 32 0.26 3.30 156 60 145
06200330 200 INL2004 4401-0146 48.8 0.17 4.8 156 75 145
06200440 200 INL2005 4401-0147 56.6 0.15 4.9 156 120 130
05400270 400 INL4013 4401-0236 32 0.48 4.9 156 75 145
05400300 400 INL4013 4401-0236 32 0.48 4.9 156 75 145
06400350 400 INL4006 4401-0154 36.5 0.4 8 206 140 200
06400420 400 INL4007 4401-0155 46.2 0.32 9 206 140 200
06400470 400 INL4008 4401-0156 60.6 0.24 11 255 125 195
05500030 575 INL5007 4401-0242 4.3 4.92 1.4 80 75 130
05500040 575 INL5008 4401-0243 6.8 3.11 1.8 156 70 125
05500069 575 INL5009 4401-0244 11.4 1.89 3.2 156 60 145
06500100 575 INL5001 4401-0157 13.2 1.6 3.5 156 60 145
06500150 575 INL5002 4401-0158 18.7 1.13 4.9 156 75 145
06500190 575 INL5003 4401-0159 24.3 0.87 6 206 95 200
06500230 575 INL5004 4401-0160 29.4 0.72 7.4 206 130 200
06500290 575 INL5005 4401-0161 37.1 0.57 11 230 130 210
06500350 575 INL5006 4401-0223 47 0.48 12.5 230 130 210
L
Y
100
----------
V
3
-------

1
2fI
------------
=
