Unidrive M / HS Frame 7 to 10 Power Installation Guide 27
Safety information Product information
Mechanical installation
Electrical installation Technical data UL listing information
Grommet kits are available for size 7 to 10 finger guards. For size 8 to 10, two versions are available
allowing for either single or double cable entries.

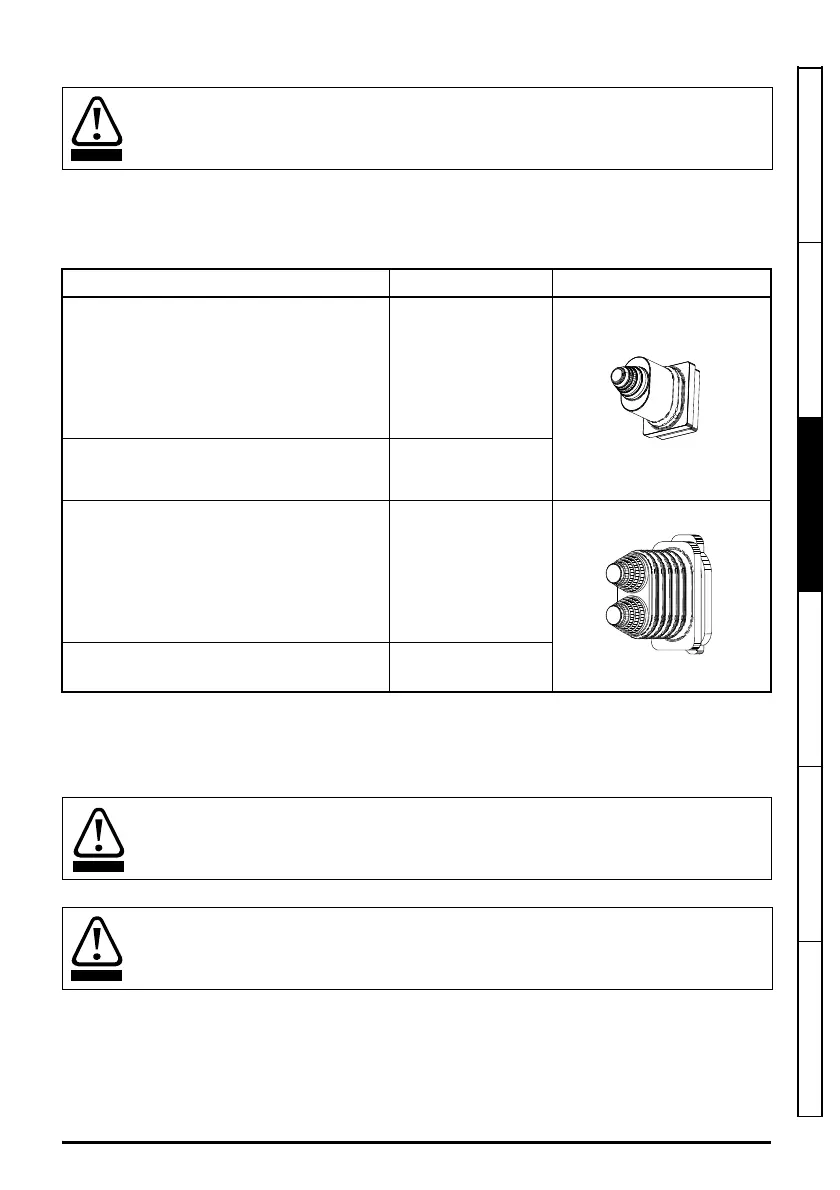

Table 3-1 Grommet kits
3.4 Dimensions and mounting methods
Drive sizes 7 to 10 can be either surface or through-panel mounted using the appropriate brackets.
Grommets must be installed to ensure ingress protection to IP20 and to avoid the risk of
fire in the event of a major internal failure.
Drive size Part number Picture
Size 7 - Kit of 8 x single entry grommets 3470-0086
Size 8 - Kit of 8 x single entry grommets 3470-0089
Size 8 - Kit of 8 x double entry grommets 3470-0090
Size 9 and 10 - Kit of 8 x double entry
grommets
3470-0107
If the drive has been used at high load levels for a period of time, the heatsink can reach
temperatures in excess of 70 °C (158 °F). Human contact with the heatsink should be
prevented.
Many of the drives in this product range weigh in excess of 15 kg (33 lb). Use appropriate
safeguards when lifting these models.
A full list of drive weights can be found in Table 5-14 Overall drive weights on page 106.
